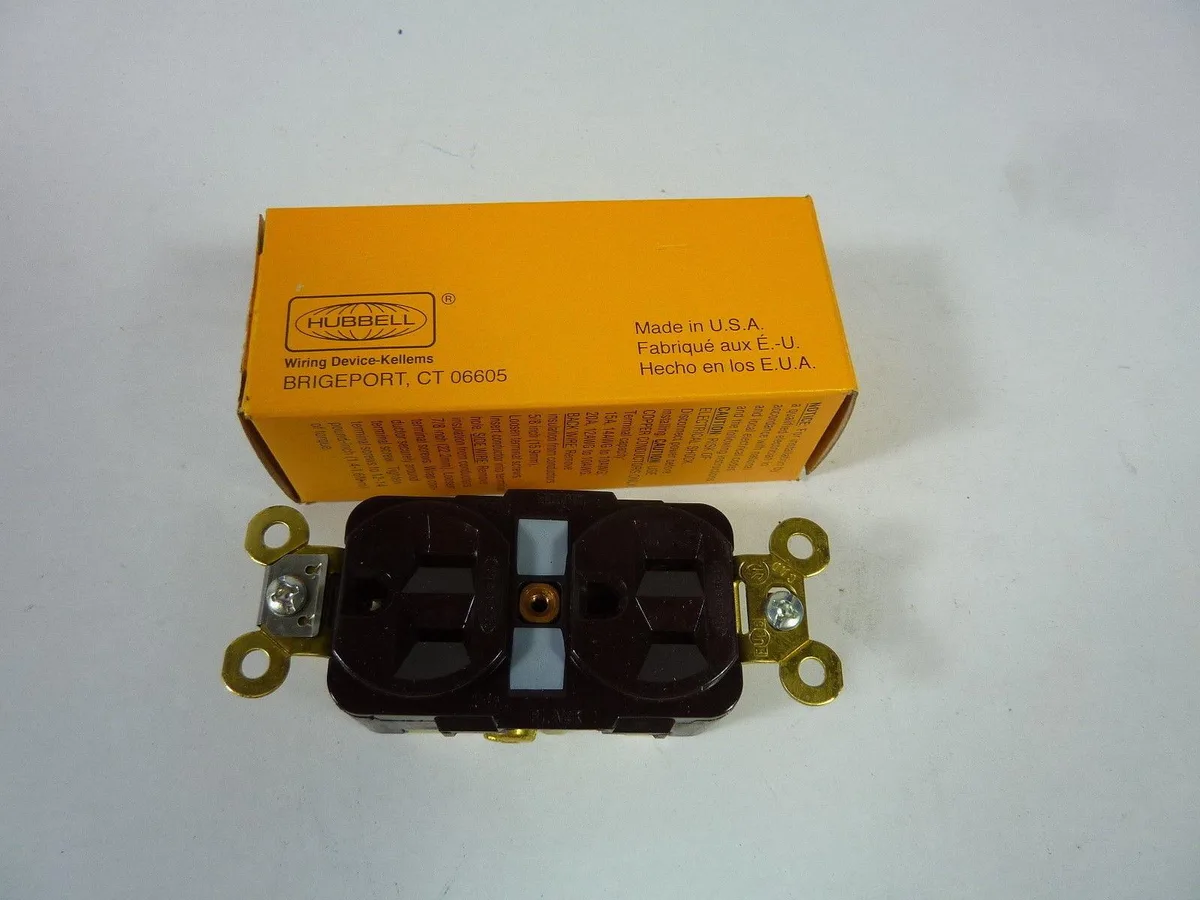

Brown rectangular duplex electrical receptacle with two vertical slots and a round ground hole, flush-mount design, smooth nylon finish

Hubbell Incorporated

Hubbell Incorporated HBL5262 15A 125V Duplex Receptacle 5-15R Brown

SKU CH-47DR-G4PKY

A 15 A 125 V duplex receptacle with NEMA 5-15R configuration, back and side wiring for 14–10 AWG copper, and UL, CSA, Federal Spec W-C-596 certification

  • Color MappingBrun
  • TypeWiring Devices
  • Rated 15 A 125 V for standard power needs
  • NEMA 5-15R duplex configuration fits common plugs
  • Back and side wiring accepts 14 to 10 AWG copper
  • UL 498 and CSA 22.2 No 42 listed for safety
  • Nylon housing with PET base resists heat to 75 °C

HBL5262 15A Duplex Receptacle

The HBL5262 is a specification-grade NEMA 5-15R duplex receptacle rated for 15 amps at 125 volts AC. It suits electricians and facility managers needing reliable flush-mounted power connections in indoor dry locations.

Back & Side Wiring with Auto Ground

The device accepts #14 to #10 AWG copper conductors via back and side screw terminals for flexible installation. A stainless steel auto-ground clip and silicon bronze ground screw provide automatic grounding when mounted in a metal box.

Flush Mount with Standard Hardware

Included mounting screws allow straightforward flush installation in standard wall boxes. The nylon housing and reinforced PET base withstand -40°C to +75°C operating temperatures. Verify box volume accommodates conductor count and ensure power is off before wiring to avoid shock hazard.

Highlights

  • Rated 15 A 125 V for standard power needs
  • NEMA 5-15R duplex configuration fits common plugs
  • Back and side wiring accepts 14 to 10 AWG copper
  • UL 498 and CSA 22.2 No 42 listed for safety
  • Nylon housing with PET base resists heat to 75 °C

Specifications

BrandHUBBELL WIRING DEVICE-KELLEMS
Color MappingBrun
TypeWiring Devices

Questions about this item

Will the brass contacts or auto-ground clip need periodic replacement?

The receptacle uses nickel-plated brass contacts and a stainless-steel auto-ground clip designed for the device's service life; no routine replacement interval exists.

What limits continuous operation at the 15 A rating?

The nylon housing and PET base are rated to 75 °C maximum ambient; sustained loads near 15 A in high-temperature enclosures will reach that thermal limit first.

Does the receptacle generate noticeable heat or noise when powering equipment all day?

It operates silently; temperature rise stays within UL 498 limits at rated load, and the V0/V2 flammability rating ensures safe thermal performance during continuous use.
