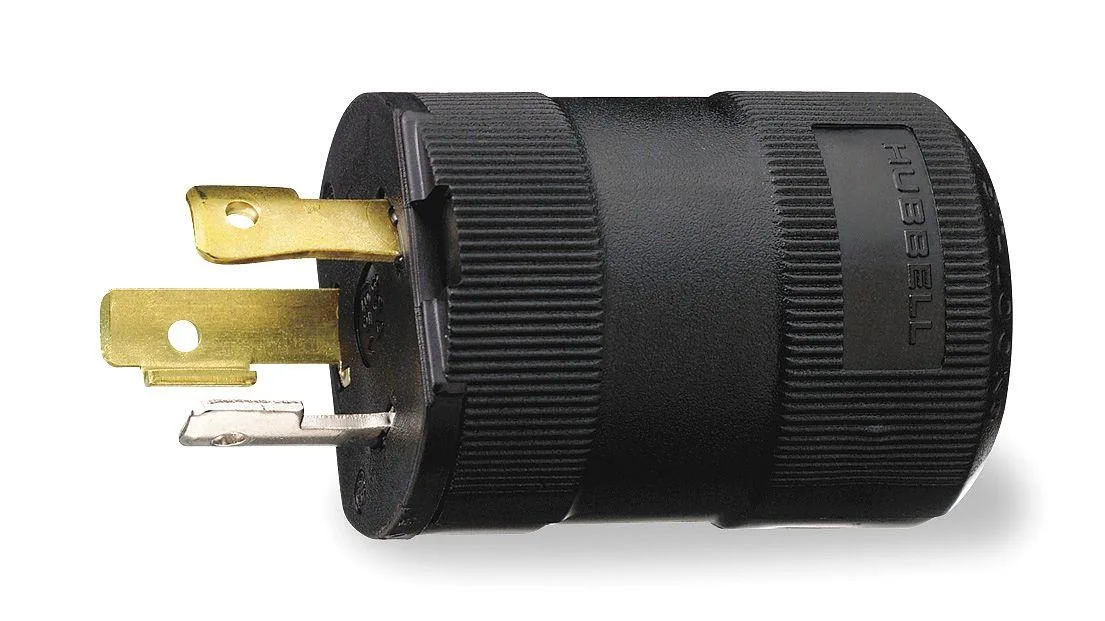

Black nylon locking plug with straight body and three blades

Hubbell Incorporated

Hubbell Incorporated HBL4723VBK 15A Locking Plug 2P 3W 125V video accessory

SKU CH-7ZPE-8PY6Q

A 15 A, 125 V straight locking plug with screw terminals for cables from 0.22 to 0.66 in diameter

  • TypeLocking Devices
  • ColorBlack
  • 15 A locking plug rated for 125 V AC power connections
  • NEMA L5-15P configuration with three blades and grounded design
  • Nylon housing resists chemicals and impacts for durability
  • Screw terminals accept cables from 0.22 in to 0.66 in diameter
  • Hinged wiring style simplifies installation and cable management

15 A locking plug for 125 V equipment

The Hubbell HBL4723VBK is a straight-orientation locking plug rated at 15 amps and 125 volts AC. It suits installers and technicians who need a secure, polarized connection for single-phase loads up to one-half horsepower.

Nylon housing with screw terminals

The black nylon body resists chemicals and impact while meeting an IP20 rating. Screw-terminal wiring under a hinged cover accepts cable diameters from 0.22 to 0.66 inches, allowing field assembly without special tools.

L5-15P limits the application

The NEMA L5-15P configuration provides two poles, three wires and grounding in a locking format that prevents accidental disconnection. It cannot be used where a higher current rating, a different voltage or a non-locking receptacle is required.

Highlights

  • 15 A locking plug rated for 125 V AC power connections
  • NEMA L5-15P configuration with three blades and grounded design
  • Nylon housing resists chemicals and impacts for durability
  • Screw terminals accept cables from 0.22 in to 0.66 in diameter
  • Hinged wiring style simplifies installation and cable management

Specifications

BrandHubbell Wiring Device-Kellems
ModelHBL4723VBK
TypeLocking Devices
ColorBlack

Questions about this item

What NEMA locking configuration does the HBL4723VBK plug use and what voltage does it support?

The plug uses a NEMA L5-15P configuration rated for 125V AC single-phase power.

What cable diameter range can the housing accept for a secure fit?

The housing accepts cables from 0.22 in up to 0.66 in outer diameter.

How are the conductors terminated inside the plug and which step is often missed?

Conductors fasten under screw terminals; the step often missed is tightening each terminal screw firmly after inserting the stripped wires.
