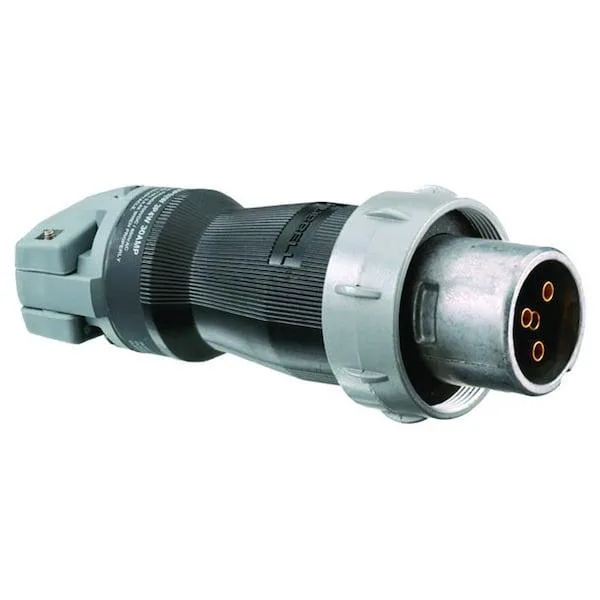

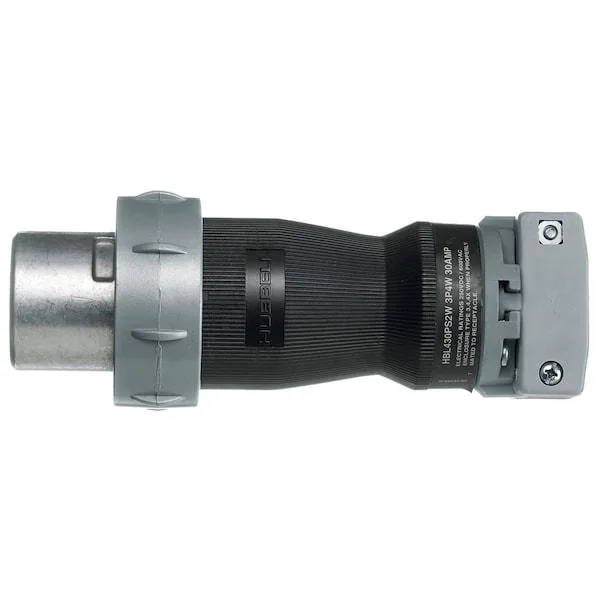

Gray industrial pin-and-sleeve plug with metallic shroud and non-metallic housing

Hubbell Incorporated

Hubbell Incorporated HBL430PS2W Pin & Sleeve Plug 30 A 600 V AC Gray

SKU CH-6R3R-VCYPP

An industrial-grade pin-and-sleeve plug rated for 30 amps at 600 V AC with a Type 4X enclosure for water and dust protection

  • Color/FinishGray
  • Color MappingGray
  • TypeLight Switch
  • Rated 30 A at 600 V AC for heavy-duty three-phase power
  • Valox 357 housing with metallic shroud resists impact and chemicals
  • UL Type 4X enclosure blocks water and dust ingress
  • All-brass sleeve contacts ensure reliable conductivity over time
  • CSA C22.2 No. 159, UL 1010, UL 1682, UL94 V-0 certified

Industrial Pin & Sleeve Plug

The Hubbell HBL430PS2W is a 30 amp, 600V AC pin and sleeve plug built for three-phase industrial and commercial power connections. It suits facilities that need a straight-orientation connector with screw terminals for secure wiring in demanding environments.

Valox 357 Housing & Brass Contacts

A non-metallic Valox 357 housing surrounds a metallic shroud and all-brass sleeve contacts for durability. The locking ring meets UL Type 4X and the enclosure carries a NEMA Type 4X rating against water and dust ingress. Cable accommodation ranges from .36 in to .78 in diameter with a maximum wire size of 8 AWG.

Certified for Harsh Conditions

The plug operates from -40°C to +75°C and carries a UL94 V-0 flammability rating. Certifications include UL Listed to UL1010 and UL1682 plus CSA Certified C22.2 No.159, confirming compliance with multiple industry performance standards for the specified voltage and current ratings.

Highlights

  • Rated 30 A at 600 V AC for heavy-duty three-phase power
  • Valox 357 housing with metallic shroud resists impact and chemicals
  • UL Type 4X enclosure blocks water and dust ingress
  • All-brass sleeve contacts ensure reliable conductivity over time
  • CSA C22.2 No. 159, UL 1010, UL 1682, UL94 V-0 certified

Specifications

BrandHUBBELL
Color/FinishGray
Color MappingGray
TypeLight Switch

Questions about this item

What does the 600 V AC rating on this Hubbell HBL430PS2W plug actually limit in use?

The 600 V AC rating is the maximum voltage the plug is certified to carry in three-phase service; it also covers 250 V DC. Exceeding either voltage voids the UL 1682 and CSA C22.2 No. 159 listings.

What cable diameter and wire gauge must I have for the HBL430PS2W to seat and seal correctly?

The plug accepts cable diameters from 0.36 in to 0.78 in and a maximum conductor size of 8 AWG; cables outside that range will not engage the gland or meet the Type 4X seal.

How is the HBL430PS2W wired, and which step is most often missed?

Strip each conductor, insert into the straight screw terminals, and torque the screws; the step most often missed is tightening the locking ring until it clicks to secure the Type 4X seal.
