Ivory toggle switch, double-pole, 30 A 120/277 V

Hubbell Incorporated

Hubbell Incorporated HBL3032I double-pole toggle switch 30 A 120/277 V ivory

SKU CH-PMC0-BQCJA

A double-pole toggle switch rated 30 A at 120/277 V AC with back and side wiring for 14 to 10 AWG conductors, ivory finish, UL listed

  • Color/FinishIvory
  • Color MappingIvory
  • TypeLight Switch
  • Double-pole 30 A switch controls two circuits from one toggle
  • Rated 120/277 V AC for residential and light-commercial wiring
  • Back and side wiring accepts 14 to 10 AWG conductors
  • Shatter and crack-resistant body withstands job-site impact
  • UL Listed for code-compliant installations

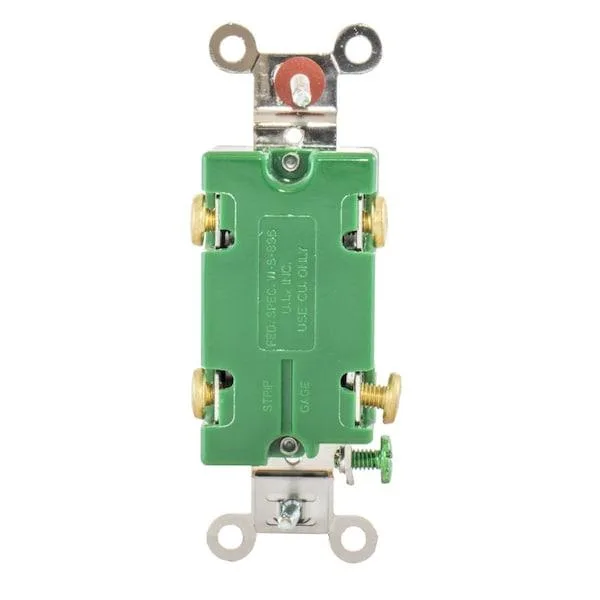

Hubbell HBL3032I 30 A Double-Pole Toggle Switch

This double-pole toggle switch handles 30 A at 120/277 V AC and is built for fixed-wiring installations that need a maintained contact action. The ivory finish matches standard residential and light-commercial wall plates.

Back or side wiring with 14 to 10 AWG conductors

Terminals accept back-wired or side-wired solid or stranded copper from 14 AWG up to 10 AWG. Strip insulation cleanly, torque screws to the manufacturer specification, and verify that no stray strands bridge the two poles before closing the wall box.

Check circuit voltage and box depth before ordering

The device is rated for 120/277 V AC only and requires a box with 3.3 in mounting-hole centres. Confirm that the branch circuit does not exceed 30 A and that the enclosure provides enough depth for the switch body and wiring.

Highlights

  • Double-pole 30 A switch controls two circuits from one toggle
  • Rated 120/277 V AC for residential and light-commercial wiring
  • Back and side wiring accepts 14 to 10 AWG conductors
  • Shatter and crack-resistant body withstands job-site impact
  • UL Listed for code-compliant installations

Specifications

BrandHubbell Wiring Device-Kellems
Color/FinishIvory
Color MappingIvory
TypeLight Switch

Questions about this item

How can I verify the switch is operating correctly after wiring it?

With power applied, toggle the lever and confirm the connected load turns on and off cleanly; the double-pole mechanism should break both hot legs simultaneously.

What does the package contain and what extra items are needed?

The box includes the ivory toggle switch only; you must supply 14 to 10 AWG wire, wire nuts, a standard wall box with 3.3 in mounting centres and a cover plate.

Which version should I select for a 30 A 120/277 V circuit?

This single model HBL3032I is rated 30 A at 120/277 V AC, double-pole, back/side wired, and UL Listed — choose it when those exact ratings match your circuit.
