Hubbell Incorporated HBL2813BK 30A Locking Connector 4P 5W 120/208VAC video accessory
A 30 A, four-pole, five-wire locking connector rated for 120/208 V AC three-phase power with screw-terminal wiring and a black nylon housing
- TypeConnector
- ColorBlack
- 30 A current rating for high-power applications
- 120/208 V AC voltage rating suits three-phase systems
- NEMA L21-30R configuration ensures standardised compatibility
- Nylon housing provides chemical and impact resistance
- Screw terminals accept cables up to 1.15 in diameter
Hubbell 30A Locking Connector

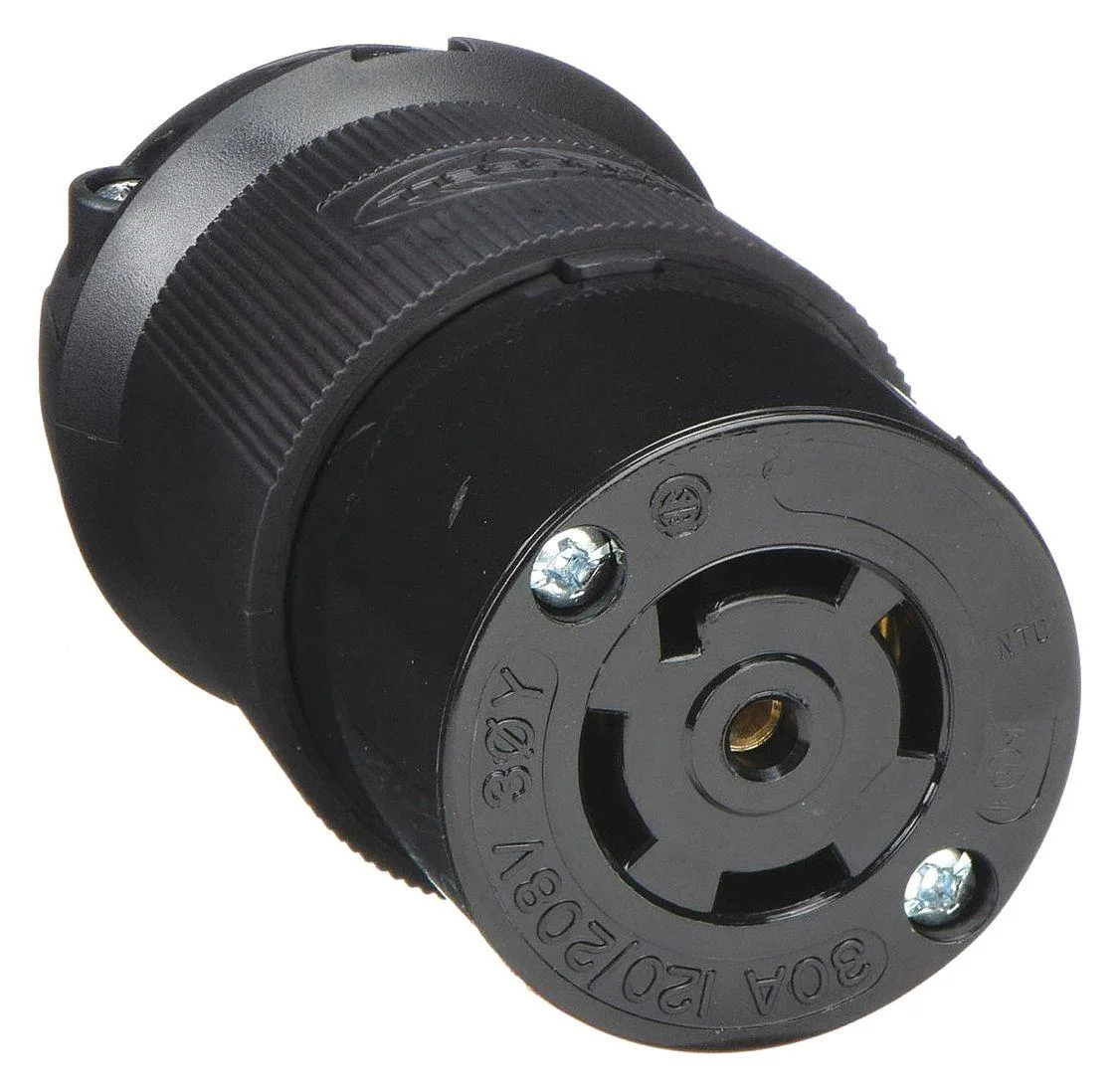

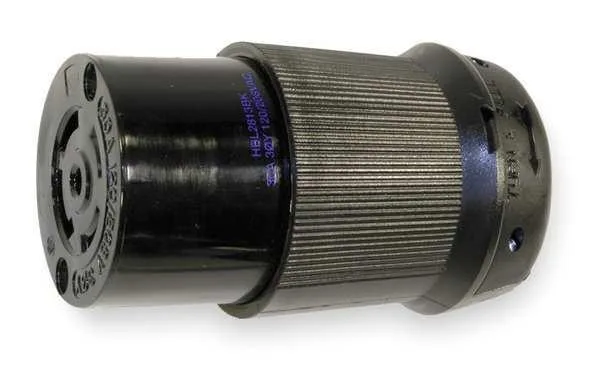

The Hubbell HBL2813BK is a straight-orientation locking connector rated for 30 amps at 120/208 volts AC. It features a four-pole, five-wire configuration matching the NEMA L21-30R standard. The housing is made from black nylon with brass contacts and screw terminals for wire connection.
Replaces worn industrial plugs
This connector serves as a direct replacement for damaged or ageing L21-30R locking plugs on three-phase equipment. The upgrade is worth it when the existing housing shows cracking, the contacts are corroded, or the locking mechanism no longer engages securely. Chemical and impact resistance extends service life in harsh environments.
Suits three-phase equipment wiring
Electricians and maintenance teams wiring 30-amp three-phase loads up to the maximum cable diameter of 1.15 inches will find this connector suitable. It is not for applications requiring a shrouded housing, an integrated cap or cover, or a higher IP rating than IP20. Single-phase or lower-amperage circuits need a different NEMA configuration.
Highlights
- 30 A current rating for high-power applications
- 120/208 V AC voltage rating suits three-phase systems
- NEMA L21-30R configuration ensures standardised compatibility
- Nylon housing provides chemical and impact resistance
- Screw terminals accept cables up to 1.15 in diameter
Specifications
| Brand | Hubbell Wiring Device-Kellems |
|---|---|
| Model | HBL2813BK |
| Type | Connector |
| Color | Black |
Questions about this item
What cable diameter will fit the HBL2813BK connector?
The connector accepts cables up to 1.15 in. maximum diameter.
How are the wires secured inside the HBL2813BK?
Wires are terminated with screw terminals; tighten each screw fully so the conductor cannot pull loose.
Does the HBL2813BK need a protective cover for outdoor use?
The unit is IP20 rated and has no cap or cover, so it is not suitable for wet or dusty environments.
