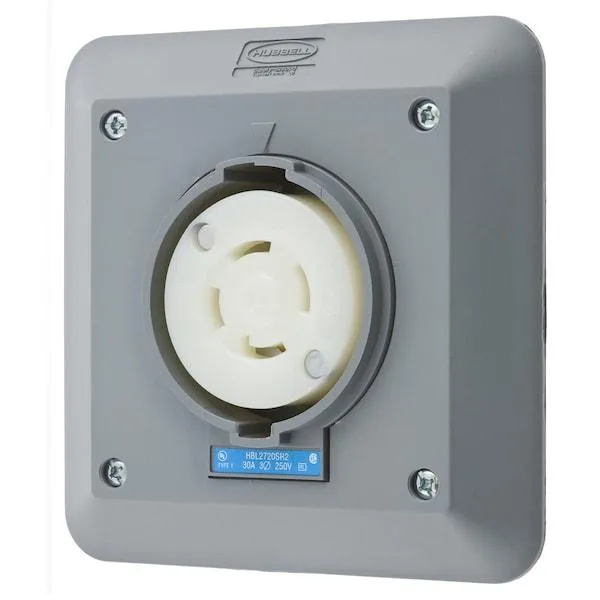

Gray industrial twist-lock receptacle with alignment arrows and visible ratings

Hubbell Incorporated

Hubbell Incorporated HBL2720SR2 Locking Receptacle L15-30R 30 A 250V AC video accessory

SKU CH-HB68-KP4B5

Three-pole, four-wire locking receptacle rated 30 A at 250 V AC with twist-lock alignment indicators and impact-resistant Valox housing

  • TypeSafety Shroud Twist Lock
  • Length5.700
  • ColorGray
  • Weight0.65
  • Three-pole, four-wire L15-30R configuration handles 30 A at 250V AC for industrial power needs
  • Twist-lock mechanism with alignment arrows and lock/unlock symbols gives visual confirmation of secure connection
  • Valox housing with gray finish resists corrosion and impact for durable indoor service
  • Screw terminals accept 8 AWG to 16 AWG conductors for flexible field wiring
  • CSA C22.2 No.42, Federal Spec W-C-596 and UL 498 listed for code-compliant installation

Industrial Locking Receptacle

The Hubbell HBL2720SR2 is a three-pole, four-wire locking receptacle rated for 30 A at 250 V AC. It uses a NEMA L15-30R configuration with a twist-lock mechanism and visual alignment indicators. The housing is made from impact-modified Valox and PBT materials in a gray finish for corrosion and impact resistance.

Suited For Industrial Power Connections

This device suits installers who need a flush-mount receptacle with screw terminals accepting 8 AWG to 16 AWG conductors. It is not for buyers who require a different NEMA configuration, a higher amperage rating, or a receptacle rated for wet or outdoor locations.

NEMA L15-30R Configuration Decides Fit

The single specification that determines compatibility is the NEMA L15-30R rating, which defines the three-pole, four-wire layout at 30 A and 250 V AC. Match this exactly to your plug and circuit requirements before purchase.

Highlights

  • Three-pole, four-wire L15-30R configuration handles 30 A at 250V AC for industrial power needs
  • Twist-lock mechanism with alignment arrows and lock/unlock symbols gives visual confirmation of secure connection
  • Valox housing with gray finish resists corrosion and impact for durable indoor service
  • Screw terminals accept 8 AWG to 16 AWG conductors for flexible field wiring
  • CSA C22.2 No.42, Federal Spec W-C-596 and UL 498 listed for code-compliant installation

Specifications

BrandHubbell Wiring Device-Kellems
ModelHBL2720SR2
TypeSafety Shroud Twist Lock
Length5.700
ColorGray
Weight0.65

Questions about this item

How much heat does the HBL2720SR2 dissipate when running at 30 A continuously?

The receptacle is rated for maximum continuous operation at 75°C (167°F) and its Valox housing resists corrosion and impact in dry indoor locations.

What wiring must I already have to install this L15-30R receptacle?

You need a three-pole, four-wire supply rated for 30 A at 250V AC and screw terminals accept conductors from 8 AWG to 16 AWG.

Will this twist-lock receptacle mate with older NEMA L15-30 plugs I already own?

Yes, the NEMA L15-30R configuration follows the standard three-pole, four-wire layout, so compatible locking plugs will engage and lock correctly.
