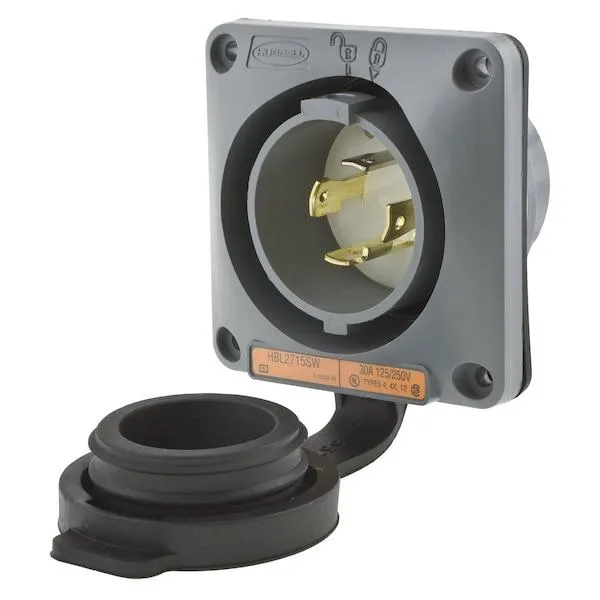

Gray thermoplastic flanged locking inlet with IP66 watertight housing

Hubbell Incorporated

Hubbell Incorporated HBL2715SW Watertight Flanged Locking Inlet 30 A 125/250 V video accessory

SKU CH-1DGF-59MT2

A watertight, flanged locking inlet rated 30 A at 125/250 V AC with IP66 and NEMA 12, 4, 4X protection for harsh environments

  • Type3" Harsh Environment, Hook-and-Loop Closure
  • ColorGray
  • IP66 watertight seal protects against harsh environments
  • 30 A 125/250 V AC rating powers demanding equipment
  • NEMA L14-30P locking inlet ensures secure connections
  • Flush-mount flanged design with included hardware simplifies installation
  • Impact-resistant thermoplastic housing withstands tough conditions

Watertight Locking Inlet 30 A 125/250 V

This Hubbell HBL2715SW is a NEMA L14-30P flanged inlet rated for 30 A at 125/250 V AC. It provides a secure, grounded connection for single-phase equipment in wet or harsh locations. The IP66 and NEMA 4X rated thermoplastic housing resists water jets and corrosion. Mounting hardware is included for flush installation.

IP66 and NEMA 4X rated housing

The single specification that decides fit is the combined IP66 and NEMA 4X enclosure rating. This certifies the inlet against powerful water jets and corrosion in indoor or outdoor environments. If the application does not require this level of ingress protection, a lower-rated inlet would be sufficient.

Flush mount with standard wiring range

The inlet mounts flush through a panel cut-out and accepts wire from 8 AWG down to 16 AWG using standard screw terminals. It frees the installer from sourcing separate sealing gaskets or locking rings because the watertight flange integrates both functions. The four-blade, three-pole L14-30P configuration mates with matching locking connectors.

Highlights

  • IP66 watertight seal protects against harsh environments
  • 30 A 125/250 V AC rating powers demanding equipment
  • NEMA L14-30P locking inlet ensures secure connections
  • Flush-mount flanged design with included hardware simplifies installation
  • Impact-resistant thermoplastic housing withstands tough conditions

Specifications

BrandHubbell Wiring Device-Kellems
ModelHBL2715SW
Type3" Harsh Environment, Hook-and-Loop Closure
ColorGray

Questions about this item

What does the 30 A current rating mean for the devices I can connect?

The inlet supports loads up to 30 A at 125/250 V AC, so it can feed equipment drawing up to 30 amps on a single-phase circuit.

How does the NEMA L14-30P plug configuration limit what I can plug in?

Only a matching NEMA L14-30P locking plug with four blades and three poles will engage, preventing mismatched voltages or phases.

What cut-out size and mounting hardware are needed to flush-mount this inlet?

The flanged body is designed for flush mounting and the package includes the required mounting hardware for installation.
