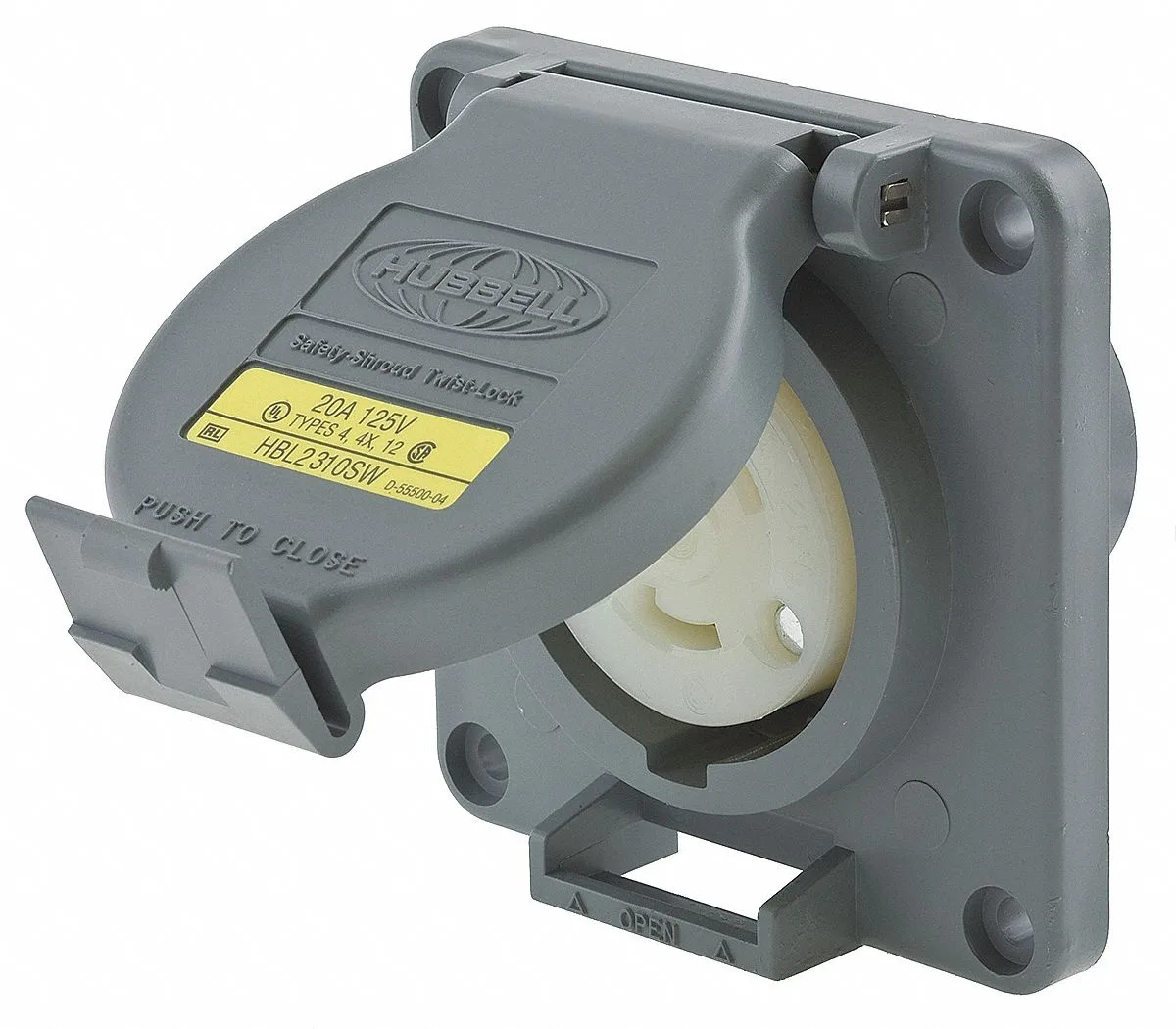

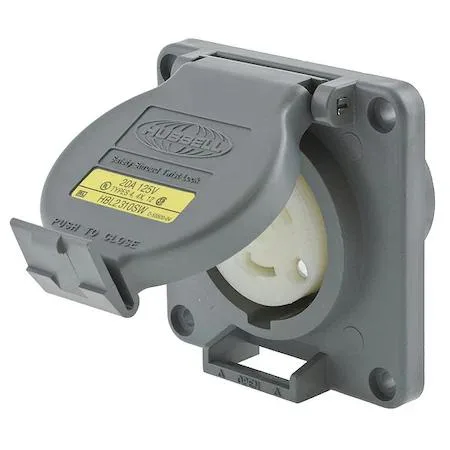

Gray watertight locking receptacle with flip-up cover

Hubbell Incorporated

Hubbell Incorporated HBL2310SW Watertight Locking Receptacle 20A 125V Gray

SKU CH-G9F6-BEQE6

Watertight locking receptacle rated 20 A at 125 V with NEMA 4X enclosure and L5-20R configuration

  • TypeWatertight Safety Shroud Twist Lock
  • Length4.000
  • ColorGray
  • Weight0.5
  • Watertight NEMA 4X rating protects against wash-down and corrosion
  • Locking flip-up cover secures connections in vibration-prone areas
  • 20 A 125 V straight-blade twist-lock handles heavy-duty loads
  • Valox housing resists impact and chemical exposure
  • Screw terminals accept standard wiring for quick installation

Watertight Locking Receptacle 20A 125V

This Hubbell watertight locking receptacle handles 20 amps at 125 volts AC for demanding environments. The L5-20R configuration suits equipment requiring a secure, polarized connection. It is built for single-phase wiring with three wires and two poles.

Valox Housing with Locking Flip-Up Cover

The gray Valox housing meets NEMA 12, 4, and 4X enclosure ratings for protection against water and dust. A shrouded, locking flip-up cover seals the inlet when not in use. Flush mounting and screw terminals simplify installation in a single-gang opening.

NEMA L5-20R Configuration Decides Fit

The receptacle only accepts matching L5-20P plugs, so verify the plug on your cordset before purchase. Builders needing a different NEMA rating or a flanged mounting style must select another model.

Highlights

  • Watertight NEMA 4X rating protects against wash-down and corrosion
  • Locking flip-up cover secures connections in vibration-prone areas
  • 20 A 125 V straight-blade twist-lock handles heavy-duty loads
  • Valox housing resists impact and chemical exposure
  • Screw terminals accept standard wiring for quick installation

Specifications

BrandHubbell Wiring Device-Kellems
ModelHBL2310SW
TypeWatertight Safety Shroud Twist Lock
Length4.000
ColorGray
Weight0.5

Questions about this item

What does the NEMA L5-20R configuration cap the receptacle at in practice?

The L5-20R rating limits the device to 20 A at 125 V AC single-phase, with a 2-pole, 3-wire polarised connection.

What are the physical mounting requirements for the flush-mount design?

It fits a single-gang opening with a non-flanged Valox housing and includes a locking flip-up cover for NEMA 4, 4X and 12 sealing.

How is the wiring terminated and which step is often missed?

Three brass screw terminals accept the conductors; the grounding screw must be tightened before the cover is latched to maintain the watertight seal.
