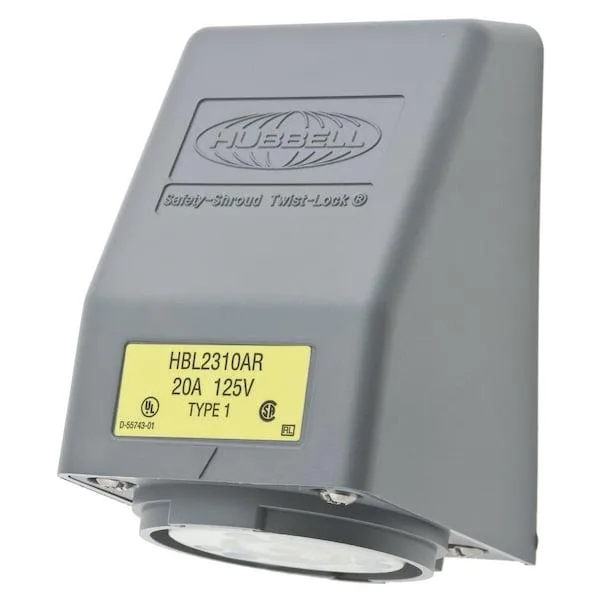

Gray rectangular flanged locking receptacle with twist-lock face and alignment arrows

Hubbell Incorporated

Hubbell Incorporated HBL2310AR Flanged Locking Receptacle L5-20R 20A 125V

SKU CH-CE49-R3M00

A 20 A 125 V locking receptacle with flanged flush mount for indoor use

  • TypeLocking Devices
  • ColorGray
  • Twist-lock mechanism secures connections reliably
  • L5-20R rating supports 20 A at 125 V
  • Valox housing resists corrosion and impact
  • Operates from -40 °F to 167 °F continuously
  • Accepts #14 to #8 AWG copper wire

Hubbell L5-20R Flanged Locking Receptacle

The Hubbell HBL2310AR is a 20A 125V AC flanged locking receptacle built for dry indoor locations. It uses a NEMA L5-20R configuration with a 2-pole 3-wire grounded design. The twist-lock mechanism accepts both shrouded and standard NEMA locking plugs. Alignment arrows with lock and unlock symbols assist with engagement verification.

Upgrades from non-locking or lower-rated outlets

This device replaces standard receptacles where vibration or movement could disconnect a plug. The locking feature secures the connection for equipment rated up to 20 amps. The jump is worth it when a secure connection prevents downtime on critical 125V circuits. It also replaces older locking devices lacking visible alignment indicators.

Sustained load performance in continuous operation

The Valox housing and nylon components are rated for continuous operation from -40°F to 167°F. Brass contacts and springs maintain conductivity under a steady 20A draw. Materials are identified as corrosion resistant and impact resistant for long-term reliability. The device accepts 14 to 8 AWG copper wire via screw terminals for secure termination.

Highlights

  • Twist-lock mechanism secures connections reliably
  • L5-20R rating supports 20 A at 125 V
  • Valox housing resists corrosion and impact
  • Operates from -40 °F to 167 °F continuously
  • Accepts #14 to #8 AWG copper wire

Specifications

BrandHUBBELL
TypeLocking Devices
ColorGray

Questions about this item

What are the mounting dimensions for the flanged L5-20R receptacle?

The unit uses a flush-mount rectangular flange; the housing and flange are moulded from Valox thermoplastic with nylon components and brass contacts.

How do I wire the L5-20R and verify the twist-lock is seated?

Connect #14 to #8 AWG copper wire to the screw terminals; alignment arrows and lock/unlock symbols on the face show when the plug is fully engaged.

Which parts wear out and need replacement on this 20 A twist-lock receptacle?

The brass contacts and internal springs carry the 20 A load; the Valox housing and nylon parts resist impact and corrosion from -40 °F to 167 °F.
