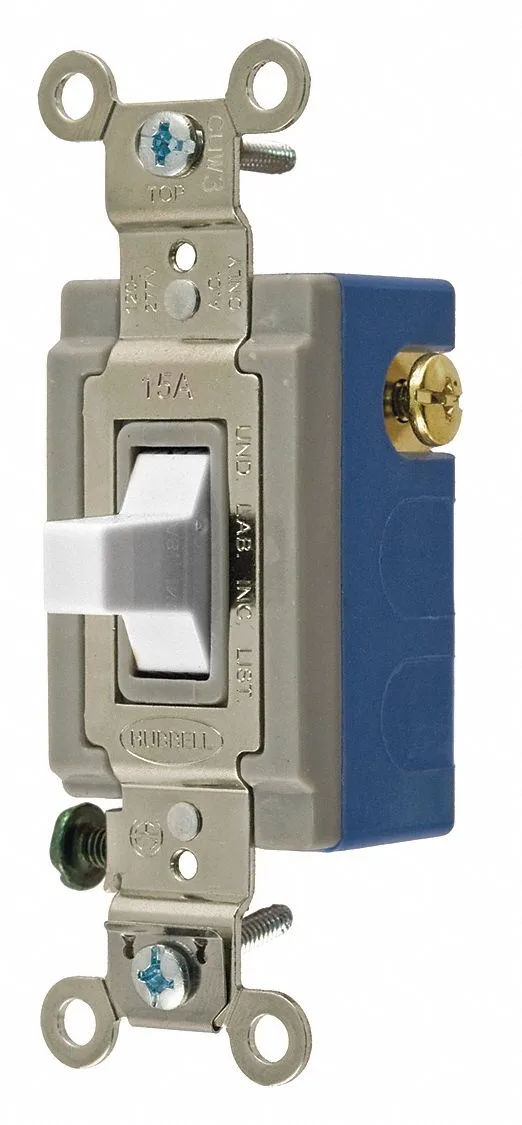

Hubbell Incorporated HBL1556W Wall Switch 15 A 120/277V AC
A 15 A, 120/277V AC single-pole/double-throw wall switch with momentary action and a centre-off position, accepting 14-10 AWG wire via back or side terminals
- Single-pole/double-throw switching for versatile control
- 15 A rating at 120/277 V AC handles standard circuits
- Back and side wiring accepts 14 to 10 AWG conductors
- Shatter and crack resistant body with impact resistance
- UL Listed for code-compliant installations
Wall Switch 15 A 120/277V AC
This single-pole double-throw wall switch handles 15 amps at 120 or 277 volts AC. It is a momentary-contact device without illumination or pilot light, built with shatter- and impact-resistant materials and UL listed for safety. Suitable for residential or commercial lighting and motor-control circuits.
Back and Side Wiring 10–14 AWG
The switch accepts back-wired or side-wired conductors from 14 AWG up to 10 AWG, giving installers flexibility during rough-in or retrofit. Mounting holes are spaced 3.3 inches centre-to-centre, matching standard US wall boxes. No locking mechanism or horsepower rating applies to this model.
Momentary Center-Off Operation
The three-position centre-off action returns to the off position when released, ideal for momentary motor jogging or signalling circuits. It does not latch in the on position, so it cannot replace a maintained-contact toggle or decorator switch. Buyers needing a stay-on switch or a pilot-light indicator should select a different device.
Highlights
- Single-pole/double-throw switching for versatile control
- 15 A rating at 120/277 V AC handles standard circuits
- Back and side wiring accepts 14 to 10 AWG conductors
- Shatter and crack resistant body with impact resistance
- UL Listed for code-compliant installations
Specifications
| Brand | HUBBELL |
|---|
Questions about this item
What is the maximum current the HBL1556W can handle continuously?
The switch is rated for 15 A at 120/277V AC, which is the limit that appears first under sustained use.
How much heat does the switch generate when left on all day?
As a mechanical toggle with no illuminated or pilot-light components, it produces negligible heat during continuous operation.
What wire gauges must I have on hand to install this switch?
The terminals accept 14 AWG to 10 AWG solid or stranded copper wire for back or side wiring.
