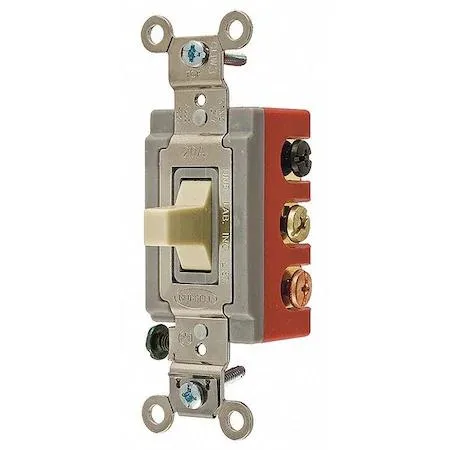

Ivory toggle wall switch, double pole, 20 A rating

Hubbell Incorporated

Hubbell Incorporated HBL1386I Wall Switch 2-Pole Toggle 20A Ivory

SKU CH-XNZZ-R8Q7S

A 20 A double-pole toggle switch rated 120/277 V AC with back and side wiring for 14–10 AWG conductors

  • Color/FinishIvory
  • Color MappingIvory
  • TypeLight Switch
  • 20 A rating handles heavy lighting loads
  • Double-pole design controls two circuits from one switch
  • 120/277 V AC rating suits commercial and residential wiring
  • Back and side wiring accepts 14 to 10 AWG conductors
  • UL Listed for verified safety compliance

Hubbell HBL1386I 20 A Double-Pole Wall Switch

The Hubbell HBL1386I is a single-gang, double-pole toggle switch rated for 20 A at 120/277 V AC. It is intended for electricians and facility managers who need a maintained-contact switch to control two separate circuits from one location. The ivory finish suits standard commercial and residential wall plates.

Sustained-load performance

Built with shatter- and crack-resistant materials, the switch body resists impact during daily operation. Back and side wiring terminals accept conductors from 14 AWG to 10 AWG, providing secure connections that remain stable under continuous 20 A loads. UL listing confirms the device meets safety requirements for prolonged use in branch circuits.

Voltage and wiring limits

The 120/277 V AC rating defines the maximum system voltage the switch can safely interrupt. Mounting holes are spaced on a 3.3 in centre-to-centre height, matching standard US wall boxes. No pilot light, illumination or locking mechanism is included, so the switch is limited to basic on/off control without status indication.

Highlights

  • 20 A rating handles heavy lighting loads
  • Double-pole design controls two circuits from one switch
  • 120/277 V AC rating suits commercial and residential wiring
  • Back and side wiring accepts 14 to 10 AWG conductors
  • UL Listed for verified safety compliance

Specifications

BrandHubbell Wiring Device-Kellems
Color/FinishIvory
Color MappingIvory
TypeLight Switch

Questions about this item

How much heat or noise does the 20 A toggle produce when it runs continuously on a 120/277 V circuit?

The switch is a passive mechanical device with no fan or electronics, so it generates no audible noise and negligible heat during normal 20 A operation.

What wiring and boxes must already be in place for the HBL1386I to install correctly?

You need a standard wall box with 3.3 in mount-hole centres, 14–10 AWG copper conductors, and a 120/277 V AC supply wired for back or side termination.

Will the double-pole mechanism work alongside existing single-pole switches on the same circuit?

Yes, the double-pole action simply opens both hot legs simultaneously, so it can share a circuit with legacy single-pole switches without interference.
