White toggle light switch rectangular body 20 A 120/277 V

Hubbell Incorporated

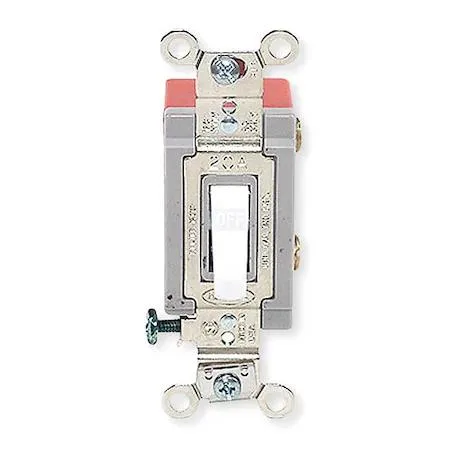

Hubbell Incorporated HBL1222W toggle switch 2-pole 20 A 120/277 V white

SKU CH-QAT2-9DGRD

A 20 A, 120/277 V toggle switch with back and side wiring for 14–10 AWG conductors

  • Color/FinishWhite
  • Color MappingWhite
  • TypeLight Switch
  • 20 A rating handles heavier lighting or motor loads
  • 120/277 V AC range suits residential and commercial circuits
  • Double-pole toggle breaks both lines for safer isolation
  • Back and side wiring with 14–10 AWG screw terminals speeds installation
  • Shatter- and impact-resistant body meets UL Listed safety standards

Hubbell 20 A 120/277 V toggle switch

The Hubbell HBL1222W is a white, double-pole toggle switch rated for 20 A at 120/277 V AC. It is built for maintained contact operation in commercial and residential lighting circuits. The body is shatter and crack resistant with impact resistance. It accepts back and side wiring using screw terminals.

Who this suits and who should look elsewhere

This switch suits electricians and installers who need a UL Listed, 20 A double-pole toggle for 120/277 V lighting loads up to 1 hp. It is not for circuits requiring a three-pole or four-pole configuration. It is not for applications that need a locking-style mechanism. It is not for circuits rated above 20 A or voltages outside the 120/277 V AC range.

Wiring and installation checks

Verify the circuit is rated for 20 A at 120/277 V AC and protected by a suitable breaker. Confirm the box has space for a single-gang device with back and side wiring access. Ensure conductors are solid or stranded copper between 14 AWG and 10 AWG. Check that screw-terminal connections are permitted by local code for this circuit.

Highlights

  • 20 A rating handles heavier lighting or motor loads
  • 120/277 V AC range suits residential and commercial circuits
  • Double-pole toggle breaks both lines for safer isolation
  • Back and side wiring with 14–10 AWG screw terminals speeds installation
  • Shatter- and impact-resistant body meets UL Listed safety standards

Specifications

BrandHubbell Wiring Device-Kellems
Color/FinishWhite
Color MappingWhite
TypeLight Switch

Questions about this item

What wiring method and wire gauge range does the HBL1222W require for installation?

The switch accepts back or side wiring with screw terminals and supports conductors from 14 AWG up to 10 AWG.

Can the 20 A 120/277 V toggle replace an existing single-pole switch on a 120 V lighting circuit?

Yes, it functions as a double-pole maintained toggle rated for 20 A at 120/277 V AC, so it will control a 120 V load when both poles are wired appropriately.

How can I verify the HBL1222W is operating correctly after wiring it?

The toggle should move firmly between maintained on and off positions, the connected load should switch cleanly without flicker, and the UL Listed marking confirms compliance with safety standards.
