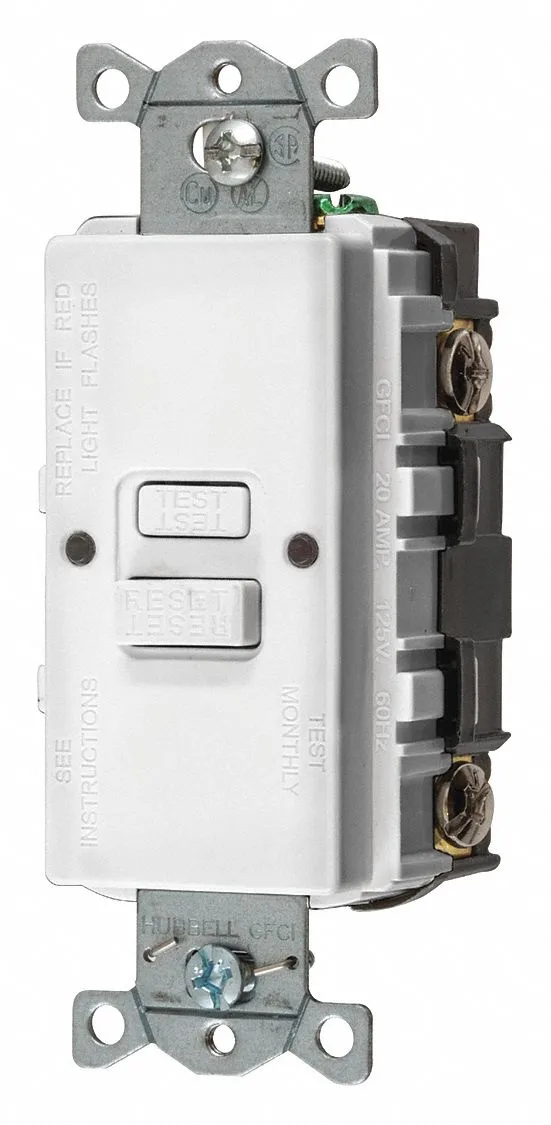

White rectangular GFCI receptacle with test and reset buttons, flush-mount nylon housing

Hubbell Incorporated

Hubbell Incorporated GFBF20W GFCI Receptacle 20A 125VAC White

SKU CH-WPKA-6ESNP

A 20 A, 125 V GFCI receptacle with self-testing, automatic reset and flush-mount nylon housing in white

  • TypeWiring Devices
  • Protects against ground faults with automatic self-testing
  • Handles 20 A at 125 V AC for commercial circuits
  • Durable nylon housing rated NEMA 6 for harsh environments
  • Meets NEC, ADA and CSA standards for code compliance
  • Includes mounting hardware for 3.27 in centre-to-centre flush installation

20 A GFCI Receptacle for Commercial Use

This 20 A, 125 V AC GFCI receptacle is built for commercial and general-use wiring. The white nylon housing mounts flush with included hardware and uses screw terminals for a three-wire back-wired connection. Automatic reset and integrated self-testing help maintain continuous ground-fault protection.

Limits of a 20 A 125 V AC Circuit

The device is rated for 20 amperes at 125 volts AC and carries a 1 hp motor rating. It meets NEC requirements and is UL listed and CSA certified for standard commercial loads. The two-pole, three-wire configuration does not support higher voltages, three-phase circuits or loads exceeding the stated current and horsepower limits.

Replaces Standard Receptacles Without GFCI

This unit upgrades a conventional duplex outlet by adding ground-fault protection and self-test capability in the same flush-mount footprint. The 3.27 in mount-hole spacing matches common box patterns, so the swap suits renovations where code now requires GFCI. It is not for installations needing a different voltage, current rating or a non-self-testing device.

Highlights

  • Protects against ground faults with automatic self-testing
  • Handles 20 A at 125 V AC for commercial circuits
  • Durable nylon housing rated NEMA 6 for harsh environments
  • Meets NEC, ADA and CSA standards for code compliance
  • Includes mounting hardware for 3.27 in centre-to-centre flush installation

Specifications

BrandHUBBELL WIRING DEVICE-KELLEMS
TypeWiring Devices

Questions about this item

Should I choose the 20 A version or a lower-amperage GFCI for a 20 A branch circuit?

Select the 20 A model when the circuit breaker is rated 20 A; it matches the breaker and accepts 12 AWG conductors on the screw terminals.

What does the 125 VAC rating mean once the receptacle is installed?

It confirms the device is rated for standard 125 V AC household circuits and will trip on ground faults at that nominal voltage.

How does the self-test feature work with the UL and CSA listings?

The built-in self-test automatically verifies the GFCI electronics at regular intervals; if it fails, the unit trips and cannot be reset, maintaining compliance with UL and CSA safety standards.
