Hubbell Incorporated
Hubbell Incorporated DT5060W Countdown Timer White 120/277V AC
A countdown timer with 15 to 60 minute settings, 120/277V AC operation and manual override for wall-switch installation
- Countdown timer adjustable from 15 to 60 minutes
- Electronic switch handles 1000 watts at 120 volts and 1400 watts at 277 volts
- Manual override lets you bypass the timer instantly
- Five preset buttons with permanent markings simplify daily scheduling
- Meets CEC Title 24, ASHRAE 90.1 and cULus UL 60730 standards
Countdown Timer for Wall Switch
The Hubbell DT5060W is an electronic countdown timer designed for single-gang wall-switch installation. It suits residential or light-commercial circuits where automatic shut-off after a preset period is required.
Check Voltage and Load Before Wiring
Verify the supply is 120 V or 277 V AC and that the connected load does not exceed 1000 W at 120 V or 1400 W at 277 V. The device is rated for 8.3 A and 1/6 hp motor loads on a single-pole circuit.

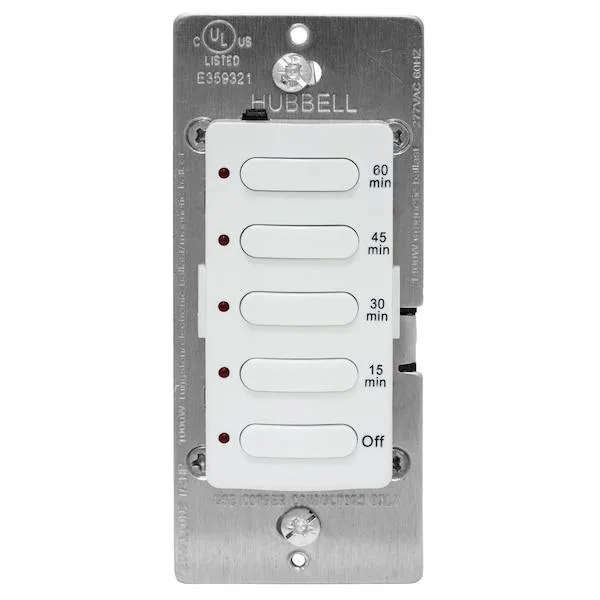

White Single-Gang Body with Manual Override
The white thermoplastic housing fits a standard one-gang box and provides five pre-set buttons with permanent time markings from 15 to 60 minutes. A manual override allows instant on/off control without cancelling the timer programme. The unit carries cULus listings to UL 60730-1 and UL 60730-2 and meets CEC Title 24 and ASHRAE 90.1 requirements.
Highlights
- Countdown timer adjustable from 15 to 60 minutes
- Electronic switch handles 1000 watts at 120 volts and 1400 watts at 277 volts
- Manual override lets you bypass the timer instantly
- Five preset buttons with permanent markings simplify daily scheduling
- Meets CEC Title 24, ASHRAE 90.1 and cULus UL 60730 standards
Specifications
| Brand | HUBBELL WIRING DEVICE-KELLEMS |
|---|
Questions about this item
What comes in the box with the DT5060W timer and what must I purchase separately?
The box contains the countdown timer unit with its wall-switch mounting hardware; wire connectors and a cover plate are not included and must be bought separately.
How do I decide between the 15-minute minimum and 60-minute maximum preset options on this timer?
Choose the 15-minute setting for short-duration loads such as bathroom fans and the 60-minute setting for longer cycles like garage lighting; the five-button selector lets you lock in any preset between those limits.
What does the 1000/1400-watt rating mean when the timer is installed on a 120/277 V AC circuit?
At 120 V the timer handles up to 1000 watts and at 277 V up to 1400 watts, so match the load to the voltage you are wiring to avoid overload.
