Hubbell Incorporated DT5060I Countdown Timer Ivory 120/277V AC

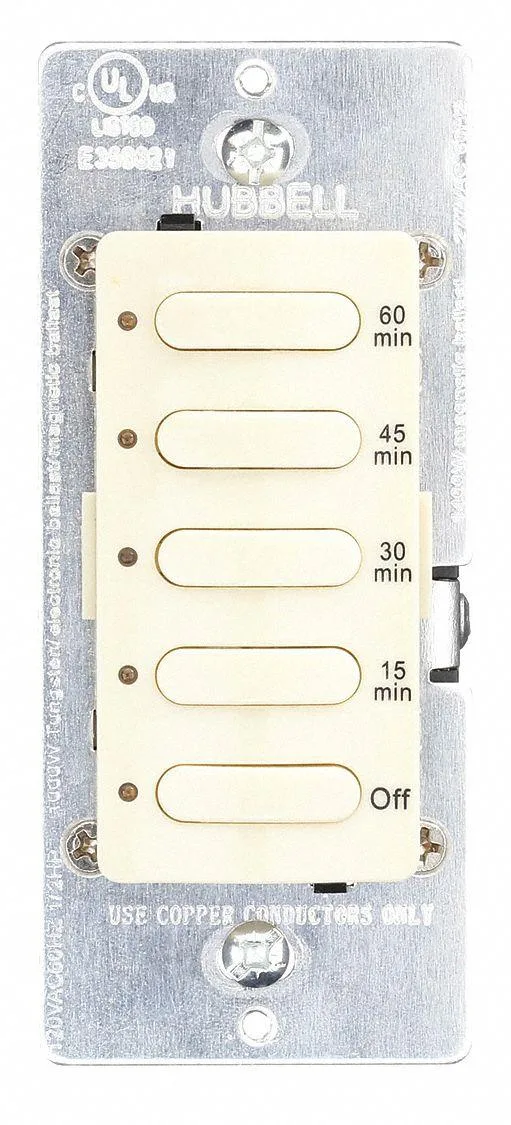

Ivory wall-switch countdown timer with 15-to-60-minute presets, manual override and 120/277 V AC rating up to 1400 W
- Set lights to turn off automatically with 15–60 minute countdown
- Control two voltage supplies on one device at 120/277V AC
- Meet energy-code requirements with CEC Title 24 and ASHRAE 90.1 compliance
- Override the timer instantly using the manual switch on the wall plate
- Choose preset durations quickly via five clearly marked buttons
Product Identity

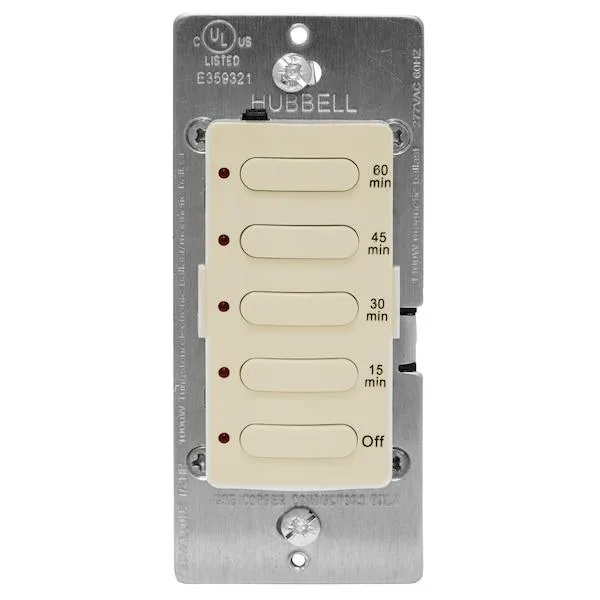

The Hubbell DT5060I is an ivory wall-switch countdown timer rated for 120/277 V AC circuits. It provides electronic switching with manual override for commercial or residential lighting and motor loads up to 1/6 hp at 120 V.
Installation Notes
The single-gang device fits a standard wall box and connects with typical line-voltage wiring. Electronic switching requires a neutral connection; verify the box contains one before starting. The 5-button preset panel is factory-marked, so no programming step is needed.
Capacity and Limits
Timing range runs from 15 minutes to 60 minutes. Resistive load rating is 1000 W at 120 V and 1400 W at 277 V with an 8.30 A maximum. Motor loads above 1/6 hp at 120 V exceed the contact rating and need a separate contactor.
Highlights
- Set lights to turn off automatically with 15–60 minute countdown
- Control two voltage supplies on one device at 120/277V AC
- Meet energy-code requirements with CEC Title 24 and ASHRAE 90.1 compliance
- Override the timer instantly using the manual switch on the wall plate
- Choose preset durations quickly via five clearly marked buttons
Specifications
| Brand | HUBBELL WIRING DEVICE-KELLEMS |
|---|
Questions about this item
How do I confirm the countdown timer is working after wiring it to a 120/277V AC circuit?
After installation, press one of the five pre-set buttons to start a countdown between 15 and 60 minutes. The load should energise for the selected duration, then switch off automatically. Use the manual override to verify the connected device responds immediately when the timer is bypassed.
What comes in the box with the DT5060I and what must be purchased separately?
The package includes the ivory electronic wall-switch timer rated for 1000/1400 W at 8.30 A, 1/6 hp at 120 V, with CEC Title 24, cULus UL60730-1, cULus UL60730-2 and ASHRAE 90.1 compliance. Mounting screws, wire connectors and a compatible wall plate are not included and must be sourced separately.
Which timer version should I choose for a single-gang 120 V or 277 V lighting circuit?
The DT5060I is a single-pole, one-gang electronic countdown timer covering both 120 V and 277 V AC in one model. Select it when you need adjustable 15-to-60-minute delays with permanent button markings and manual override for lighting or motor loads up to 1000 W at 120 V or 1400 W at 277 V.
