Hubbell Incorporated CSB115W Wall Switch 15A 120/277V AC White
A 15 A single-pole wall switch rated for 120/277 V AC with back and side wiring for 14 to 10 AWG conductors, shatter and corrosion resistant, and UL listed
- 15 A single-pole switch handles standard lighting loads
- Back and side wiring accepts 14 to 10 AWG conductors
- UL Listed for 120/277 V AC installations
- Shatter, corrosion and impact resistant thermoplastic body
- 3 in mounting centres fit standard wall boxes
Single-Pole Switch for 15 A Circuits

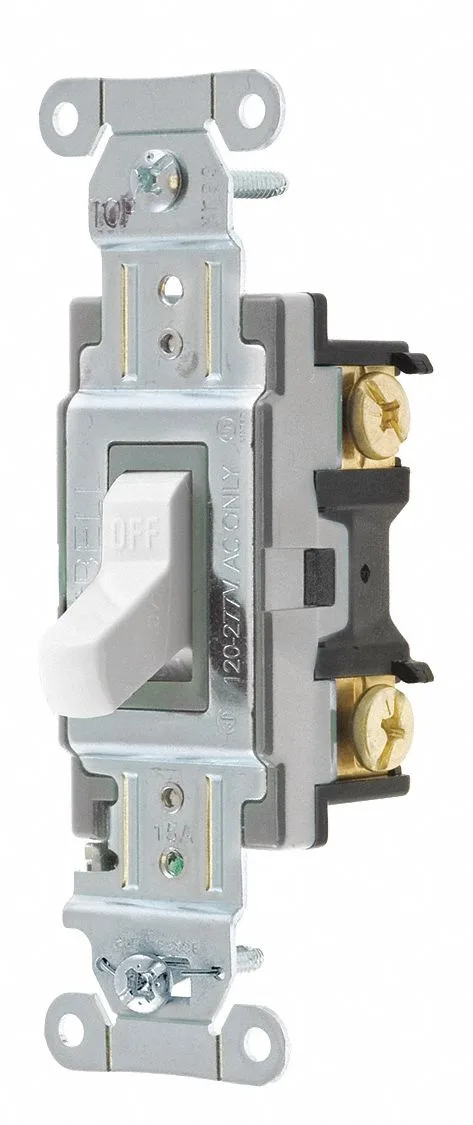

This Hubbell white wall switch provides a maintained single-pole function rated for 15 A at 120/277 V AC. It suits residential or light-commercial circuits where a simple on-off control is required. The shatter and crack resistant body also resists corrosion and impact. UL listing confirms compliance with the relevant safety standard.
Back and Side Wiring Accepts 14 to 10 AWG

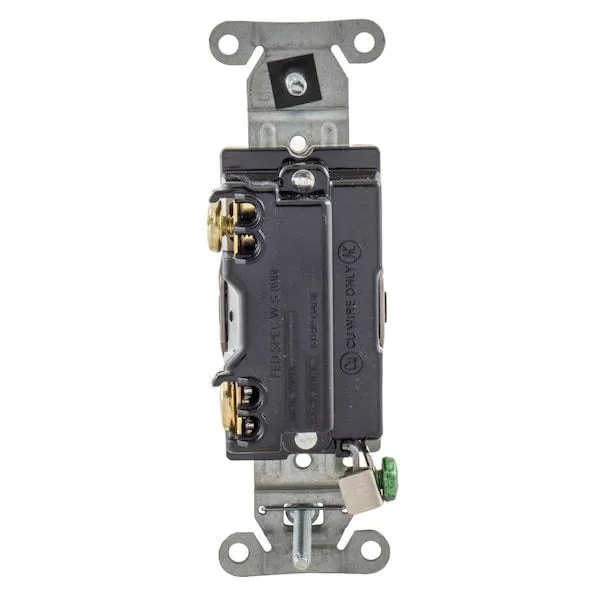

Installers can terminate conductors using either back-wire or side-wire entries, accommodating solid or stranded copper from 14 AWG up to 10 AWG. No illuminated indicator, pilot light or nightlight is fitted, so the device remains visually unobtrusive in the finished installation. The single switch mechanism operates without a locking feature.
Mounting Holes Spaced 3.3 Inches Apart
The mounting ears are centred 3.3 in apart, matching standard US wall-box dimensions for a single-gang opening. The switch is rated only for the stated voltage and current; it carries no horsepower rating and is not suitable for motor loads that require a dedicated HP-rated device. Circuits exceeding 15 A or voltages outside the 120/277 V AC range are not supported.
Highlights
- 15 A single-pole switch handles standard lighting loads
- Back and side wiring accepts 14 to 10 AWG conductors
- UL Listed for 120/277 V AC installations
- Shatter, corrosion and impact resistant thermoplastic body
- 3 in mounting centres fit standard wall boxes
Specifications
| Brand | HUBBELL WIRING DEVICE-KELLEMS |
|---|
Questions about this item
Will the 15 A wall switch need any scheduled maintenance or replacement parts over time?
The single-pole switch has no user-serviceable parts; its shatter-resistant, corrosion-resistant and impact-resistant construction is designed to last the life of the installation.
What is the first limit reached when the CSB115W runs continuously at full 15 A load?
The 15 A current rating is the limiting factor; the device is UL Listed for 120/277 V AC operation at that maximum.
Does the switch generate noticeable heat or noise when powering a circuit all day?
It operates silently with no illumination or pilot light, and normal warmth stays within the UL Listed temperature rise for a 15 A wall switch.
