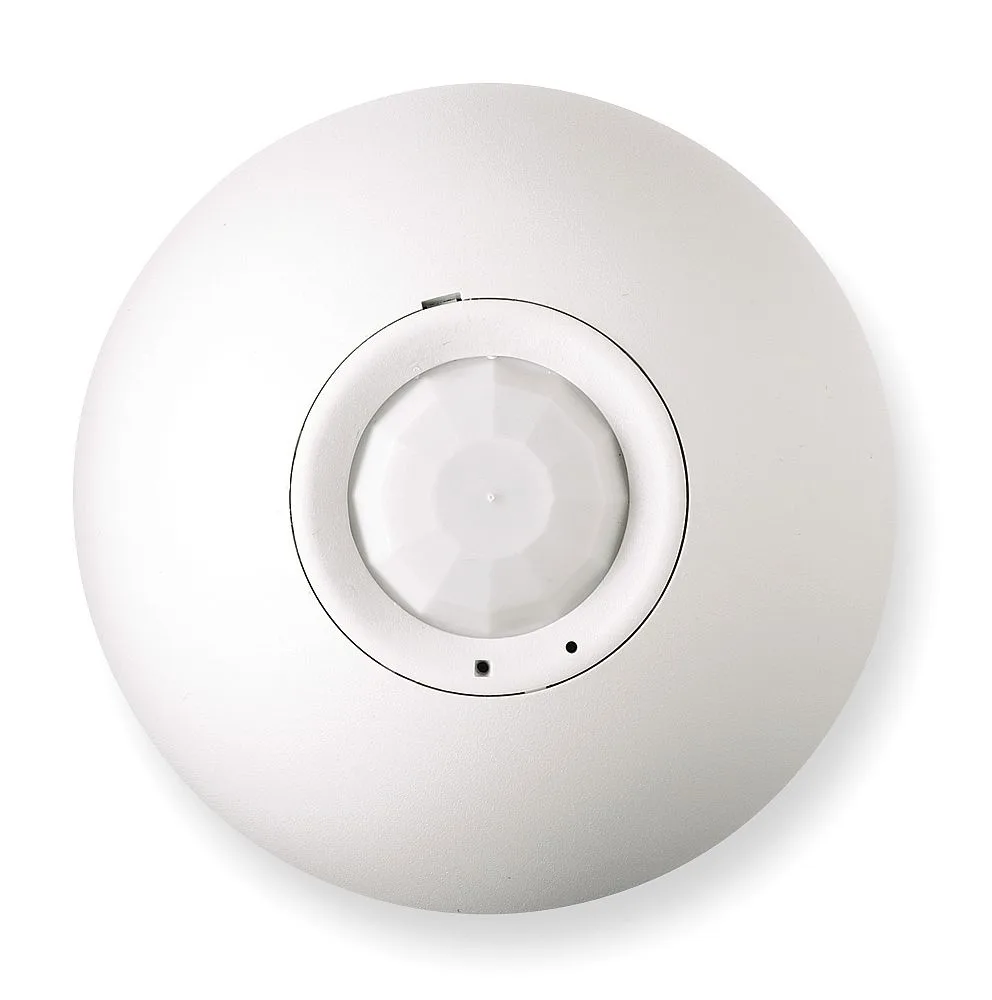

Hubbell Incorporated ATP1500CL Occupancy Sensor Ceiling Mount Hard Wired
A ceiling-mounted PIR occupancy sensor covering 1,500 sq ft at 12 ft height, hard-wired for 120 to 277V AC with adaptive time delay up to 40 min and cULus listing
- Passive infrared detects occupancy across 1,500 sq ft
- Hard-wired 120-277 V AC operation simplifies installation
- Adaptive time delay adjusts up to 40 minutes automatically
- cULus and UL244A listed meeting ASHRAE 90.1 standards
- Ceiling mount at 12 ft height includes all mounting hardware
Ceiling-mount occupancy sensor
The Hubbell ATP1500CL is a passive infrared occupancy sensor designed for ceiling installation in commercial or residential spaces. It detects motion across a maximum coverage area of 1,500 sq ft from a mounting height of up to 12 ft and controls lighting loads directly through hard-wired connections.
Hard-wired 120–277 V AC operation
The unit operates on 120 to 277 V AC circuits and carries a load rating of 1,800 W for incandescent lighting at 120 V. Communication is hard-wired only, with no wireless protocol, and the adaptive time delay can be set up to a maximum of 40 minutes. It meets ASHRAE 90.1, cULus Listed and UL244A standards.
Verify voltage, load and ceiling access
Before ordering, confirm that the supply voltage falls within the 120–277 V AC range and that the connected lighting load does not exceed the rated wattage. Ensure the ceiling cavity can accommodate the 4.5 in overall diameter and that mounting hardware can be secured to the structure. Check local code adoption of the listed standards.
Highlights
- Passive infrared detects occupancy across 1,500 sq ft
- Hard-wired 120-277 V AC operation simplifies installation
- Adaptive time delay adjusts up to 40 minutes automatically
- cULus and UL244A listed meeting ASHRAE 90.1 standards
- Ceiling mount at 12 ft height includes all mounting hardware
Specifications
| Brand | HUBBELL WIRING DEVICE-KELLEMS |
|---|
Questions about this item
Which ATP1500CL version should I choose for a standard ceiling installation?
The ATP1500CL is a single hard-wired ceiling-mount occupancy sensor with a 4.5 in diameter, 12 ft maximum mounting height and 1,500 sq ft coverage, so one model fits standard installations.
What does the 1,500 sq ft coverage mean once the sensor is mounted at 12 ft?
At the 12 ft maximum mounting height the passive infrared sensor detects motion across up to 1,500 sq ft, providing automatic lighting control for large rooms or open-plan areas.
How does the hard-wired 120-277V AC interface cap the load I can connect?
The hard-wired input accepts 120 to 277V AC and supports up to 1,800 W incandescent at 120V AC, with adaptive time delay up to 40 min and compliance to ASHRAE 90.1, UL244A and cULus listing.
