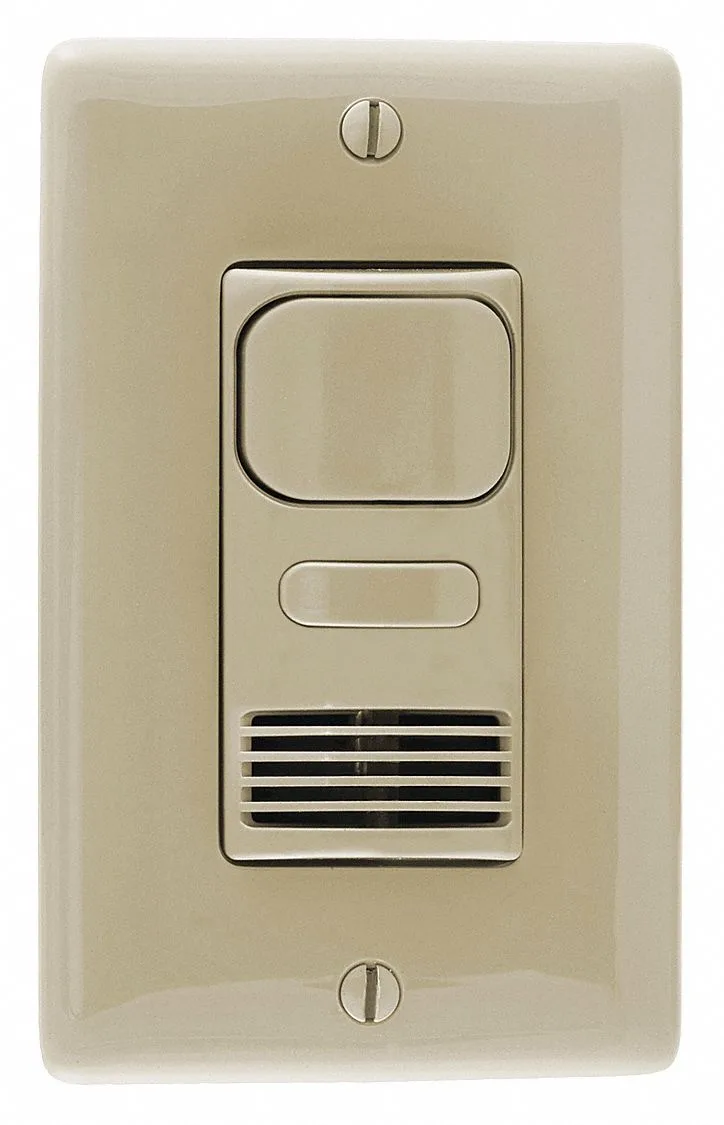

Ivory wall-mount occupancy sensor with single button

Hubbell Incorporated

Hubbell Incorporated AD2000I1 Wall Mount Sensor

SKU CH-WJVE-Z5HEQ

Wall-mount sensor provides occupancy and vacancy detection for fluorescent and incandescent loads up to 1,000 sq ft coverage

  • Dual PIR and ultrasonic sensing covers 1,000 sq ft
  • Operates on 120 to 277V AC without a neutral wire
  • Handles 1,000W fluorescent or 800W incandescent loads at 120V AC
  • Single-button occupancy and vacancy control simplifies operation
  • Hard-wired communication ensures reliable performance without wireless interference

Wall Mount Occupancy Sensor

The Hubbell AD2000I1 is a hard-wired wall mount sensor designed for commercial lighting control. It uses combined passive infrared and ultrasonic detection to cover up to 1,000 sq ft. The unit operates on 120 to 277V AC and supports fluorescent loads up to 1,000W and incandescent loads up to 800W at 120V AC. No neutral wire is required for installation.

Upgrade from Single Technology Sensors

This dual technology sensor replaces single technology units that may false trigger or leave blind spots. The combined PIR and ultrasonic operation improves reliability in spaces with partitions or irregular layouts. The upgrade is worthwhile when existing sensors struggle with coverage gaps or nuisance switching in areas up to the rated 1,000 sq ft.

Sustained Load Performance

Under continuous operation the sensor maintains its rated load handling of 1,000W fluorescent or 800W incandescent at 120V AC. Hard wired communication ensures consistent response without wireless interference. The absence of dimming circuitry means the relay contacts switch the full load cleanly during extended occupancy cycles across the 120 to 277V AC range.

Highlights

  • Dual PIR and ultrasonic sensing covers 1,000 sq ft
  • Operates on 120 to 277V AC without a neutral wire
  • Handles 1,000W fluorescent or 800W incandescent loads at 120V AC
  • Single-button occupancy and vacancy control simplifies operation
  • Hard-wired communication ensures reliable performance without wireless interference

Specifications

BrandHUBBELL WIRING DEVICE-KELLEMS

Questions about this item

Does the AD2000I1 need a neutral wire for wall-box mounting?

No neutral is required; the sensor connects directly to line and load conductors in a standard wall box.

What wiring step is most often missed when installing this hard-wired sensor?

Connecting the load wire to the correct terminal — reversing line and load will prevent the relay from switching.

Which lamps can be replaced without changing the sensor's load limits?

Fluorescent lamps up to 1000 W at 120 V or incandescent lamps up to 800 W at 120 V stay within the rated load.
