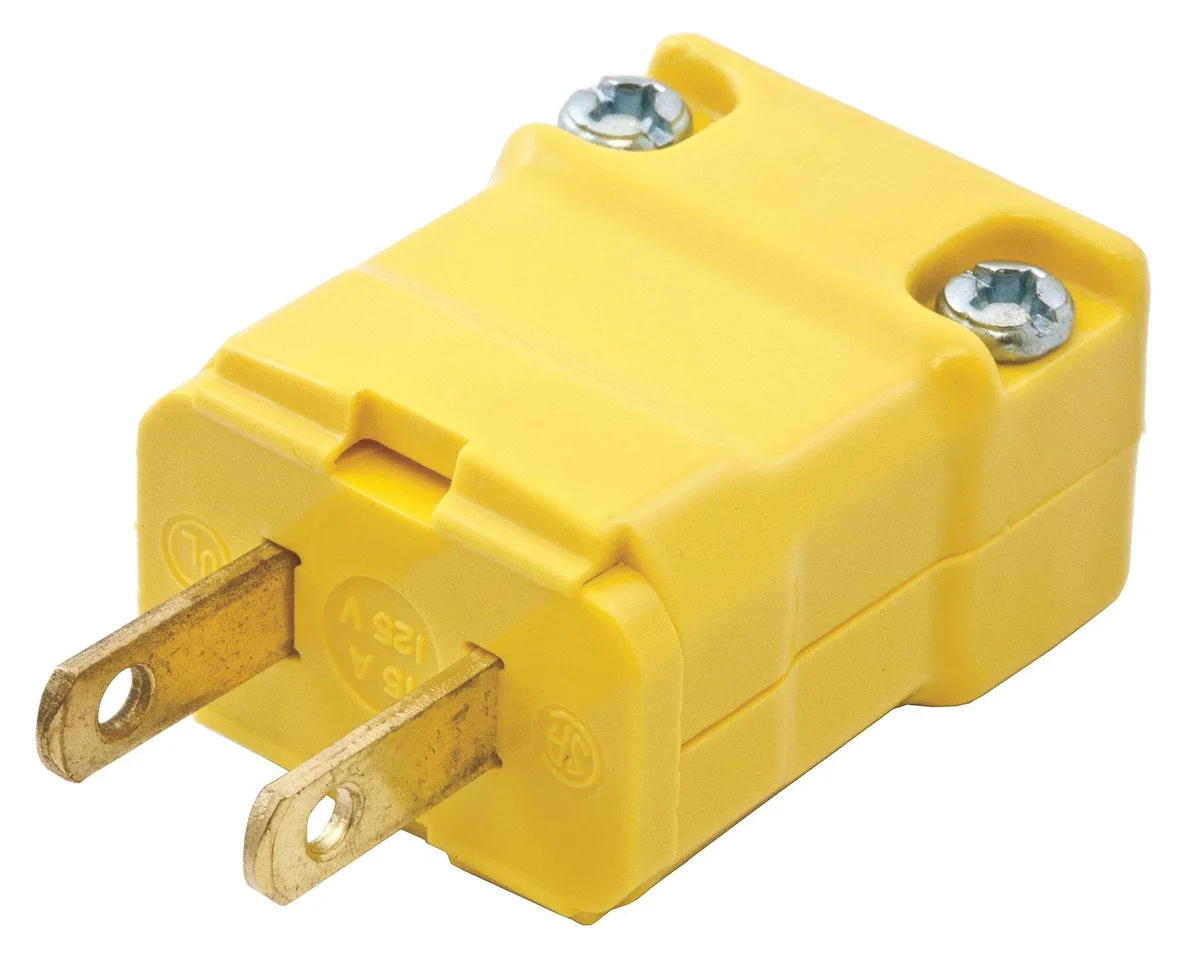

Yellow nylon industrial straight-blade plug with hinged one-piece body and brass blades

Hubbell Incorporated

Hubbell HBL5865VY 15 A 125 V Yellow Nylon Plug

SKU CH-YJK2-TT5PC

A non-grounding industrial straight-blade plug rated 15 A at 125 V with a hinged nylon body and brass blades

  • Type50A
  • ColorYellow
  • Rated 15 A at 125 V AC for reliable power delivery
  • Hinged one-piece nylon body simplifies assembly and resists corrosion
  • Brass blades 0.060 in thick ensure durable conductivity
  • Accepts 18 to 14 AWG stranded copper wire
  • Operates from -40 °C to 75 °C for harsh environments

Industrial Straight-Blade Plug

The Hubbell HBL5865VY is a 15 A 125 V non-grounding plug built for commercial and industrial wiring tasks. Its hinged one-piece nylon body simplifies field assembly and resists corrosion in harsh environments.

Replacing Worn Non-Grounding Plugs

This plug replaces damaged 1-15P straight-blade connectors on tools, appliances or extension cords where grounding is not required. The upgrade is worth it when the original housing cracks, blades loosen or the cord clamp fails to retain conductors securely.

NEMA 1-15P Interface Limits

The NEMA 1-15P configuration accepts only two conductors and provides no equipment ground path, so it cannot serve devices that require grounding for safety. Cord diameter must stay between .218 in and .385 in, and wire gauge is limited to 18 AWG through 14 AWG stranded copper. Operating temperature range spans -40°C to 75°C, and dielectric strength is rated at 2000V minimum.

Highlights

  • Rated 15 A at 125 V AC for reliable power delivery
  • Hinged one-piece nylon body simplifies assembly and resists corrosion
  • Brass blades 0.060 in thick ensure durable conductivity
  • Accepts 18 to 14 AWG stranded copper wire
  • Operates from -40 °C to 75 °C for harsh environments

Specifications

BrandHubbell Wiring Device-Kellems
ModelHBL5865VY
Type50A
ColorYellow

Questions about this item

What cord diameter range does the HBL5865VY accept?

The plug accepts cord diameters from 0.218 in to 0.385 in, covering #18 AWG to #14 AWG stranded copper wire.

How do you wire the brass blades on this non-grounding plug?

Loosen the screw terminals, insert each stripped wire under its brass blade screw, then tighten securely; no ground screw is used on this 1-15P model.

When should the nylon housing or Noryl clamp be replaced?

Replace the plug if the yellow nylon body cracks, the Noryl cord clamp no longer grips the cable, or the brass blades show corrosion or overheating discoloration.
