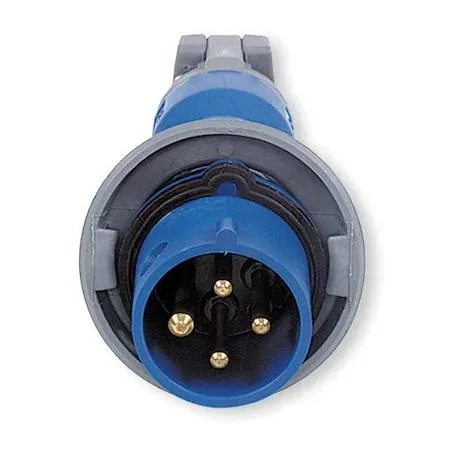

Blue watertight industrial plug with shrouded pins and gasketed nylon housing

Hubbell Incorporated

Hubbell HBL460P9W Watertight Pin & Sleeve Plug 60 A

SKU CH-MA61-021E3

Watertight 60 A, 250 V AC pin-and-sleeve plug with IP67-rated Zytel 801 nylon housing for three-phase industrial use

  • Color/FinishBlue
  • Color MappingBlue
  • TypeLight Switch
  • Watertight IP67 enclosure seals out moisture and dust
  • 60 A 250 V AC rating powers heavy three-phase loads
  • Zytel 801 nylon housing withstands -40 °C to +75 °C extremes
  • Accepts #8 to #2 AWG cords from .50 in to 1.45 in diameter
  • UL Listed E146032 and CSA C22.2 No. 182.1 certified for industrial safety

Hubbell 60 A Watertight Plug

This Hubbell IEC pin-and-sleeve plug provides a watertight connection for three-phase power up to 60 amps at 250 V AC. Its Zytel 801 nylon housing and IP67-rated enclosure with a gasketed sealing ring protect against dust and water ingress in industrial environments. The grounded, shrouded design accepts portable cords from #8 AWG to #2 AWG with cable diameters of .50 in to 1.45 in. It meets CSA Standard C22.2 No. 182.1 and is UL Classified to IEC60309-1.

Sustained Load Performance

The plug operates across a temperature range of -40 °C to +75 °C and carries a horsepower rating up to 7-1/2 hp, supporting continuous high-ampacity service. Pressure terminal screws secure each of the four conductors to resist loosening under vibration and thermal cycling. The rugged nylon body maintains structural integrity and sealing performance during prolonged use in demanding conditions.

Installation Notes

Wiring requires stripping conductors to fit the pressure terminals and tightening the screws to the specified torque. The cable gland must be compressed evenly around the cord jacket to preserve the IP67 seal; an undersized or oversized cable will compromise water resistance. The shrouded pins reduce accidental contact, but the plug only mates with matching IEC 60309-1 receptacles. Buyers needing a different ampacity, voltage rating, or phase configuration cannot use this device.

Highlights

  • Watertight IP67 enclosure seals out moisture and dust
  • 60 A 250 V AC rating powers heavy three-phase loads
  • Zytel 801 nylon housing withstands -40 °C to +75 °C extremes
  • Accepts #8 to #2 AWG cords from .50 in to 1.45 in diameter
  • UL Listed E146032 and CSA C22.2 No. 182.1 certified for industrial safety

Specifications

BrandHUBBELL
Color/FinishBlue
Color MappingBlue
TypeLight Switch

Questions about this item

Does the HBL460P9W run hot or draw extra power when it carries 60 A continuously in a three-phase circuit?

The plug is rated for 60 A at 250 V AC and operates from -40 °C to +75 °C, so it handles full-load current within that temperature envelope without additional cooling.

What cable size and type must I already have to terminate on the pressure terminals of this plug?

It accepts portable cord from #8 AWG to #2 AWG with an outer diameter between 0.50 in and 1.45 in, matching the gland range on the Zytel 801 nylon body.

Will this IEC 60309 plug mate with the older 60 A receptacles already installed in our panel?

Yes, it conforms to IEC 60309-1 and is UL Classified to that standard, so it fits any matching 60 A 250 V three-phase four-wire receptacle built to the same pin-and-sleeve pattern.
