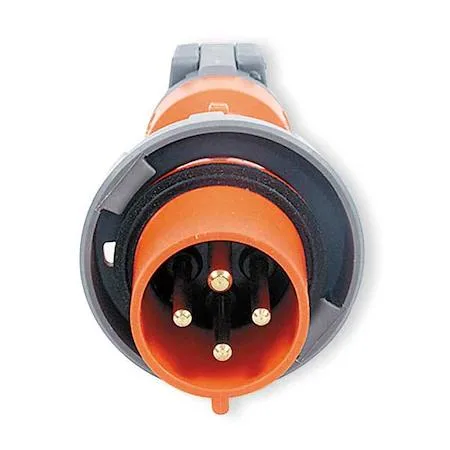

Orange watertight pin-and-sleeve plug, non-metallic nylon housing, 100 A rating

Hubbell Incorporated

Hubbell HBL4100P12W Watertight Pin & Sleeve Plug 100A

SKU CH-MC1B-A6BXP

Watertight 100 A pin-and-sleeve plug rated 125/250 V AC with IP67 and Type 4X protection, Zytel 801 nylon housing, screw terminals for 3 AWG to 1/0 AWG conductors, and CSA/UL compliance

  • Color/FinishOrange
  • Color MappingOrange
  • TypeLight Switch
  • Watertight IP67 rating protects against dust and immersion
  • 100 A current rating powers heavy-duty industrial equipment
  • Zytel 801 nylon housing resists impact and moisture
  • Wide -40 °C to +75 °C operating range suits harsh environments
  • CSA and UL certified for safety compliance

Industrial power connector for 100 A circuits

This Hubbell HBL4100P12W pin-and-sleeve plug delivers a watertight 100 A connection at 125/250 V AC for industrial and commercial installations. Its IEC grounding style and rugged Zytel 801 nylon housing suit environments where moisture and impact resistance are required. The plug accepts 3 AWG to 1/0 AWG conductors and is rated for up to 10 hp motor loads. It meets CSA C22.2 No.182.1, UL E146032 and IEC 60309-1 standards.

Watertight sealing and screw-terminal wiring

The gasketed sealing ring and Type 4X, IP67-rated enclosure keep water and contaminants out of the connection. Screw terminals with straight orientation simplify field termination on cables up to 1.065 in diameter. The non-metallic housing resists corrosion and operates from -40 °C to +75 °C without degradation. These features reduce downtime in wash-down, outdoor and heavy-process areas.

100 A continuous current rating

The single specification that determines suitability is the 100 A current rating combined with the 125/250 V AC voltage rating. Installations requiring a different amperage, voltage or pole configuration cannot use this plug. Buyers needing lower-capacity connectors or alternative mounting styles must select a different device.

Highlights

  • Watertight IP67 rating protects against dust and immersion
  • 100 A current rating powers heavy-duty industrial equipment
  • Zytel 801 nylon housing resists impact and moisture
  • Wide -40 °C to +75 °C operating range suits harsh environments
  • CSA and UL certified for safety compliance

Specifications

BrandHUBBELL
Color/FinishOrange
Color MappingOrange
TypeLight Switch

Questions about this item

Will the screw terminals on the Zytel 801 nylon housing need periodic re-torquing after installation?

The plug uses screw terminals with straight orientation; standard practice is to check terminal tightness after initial energising and during scheduled maintenance.

At continuous 100 A load, does the 75 °C operating ceiling or the IP67 seal become the limiting factor first?

The housing is rated to +75 °C and the IP67 seal is integral to that rating; sustained 100 A operation must keep ambient and conductor temperatures within the 75 °C limit.

How much heat does the 100 A rating generate inside the watertight enclosure during all-day use?

The device is rated for 100 A at 125/250 V AC within a -40 °C to +75 °C range; heat rise depends on cable size, ambient temperature and duty cycle.
