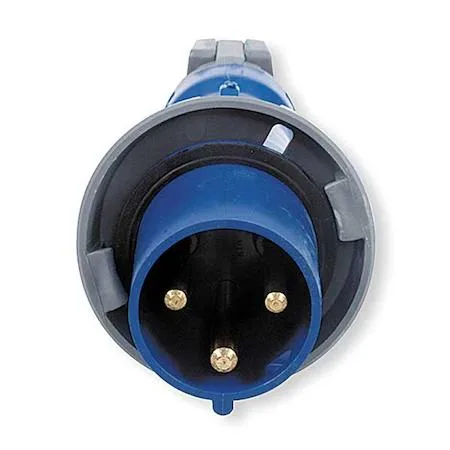

Blue watertight pin-and-sleeve plug with nylon housing

Hubbell Incorporated

Hubbell HBL360P6W Watertight Pin & Sleeve Plug 60 A

SKU CH-1RDW-TQW76

A watertight pin-and-sleeve plug rated for 60 A at 250 V AC with an IP67-rated Zytel 801 nylon housing

  • Color/FinishBlue
  • Color MappingBlue
  • TypeLight Switch
  • Watertight reliability with IP67 ingress protection rating
  • Handles 60 A at 250 V AC single-phase power
  • Rugged Zytel 801 nylon housing resists impact and moisture
  • Accepts #8 to #2 AWG conductors via pressure terminal screws
  • Operates continuously from -40 °C to +75 °C

Industrial 60 A Watertight Plug

The Hubbell HBL360P6W is a watertight pin-and-sleeve plug rated for 60 amps at 250 V AC single-phase. Its Zytel 801 nylon housing meets IP67 ingress protection and withstands continuous temperatures from -40 °C to +75 °C. The device accepts cable diameters from .83 in to 1.45 in and wire sizes #8 AWG to #2 AWG via pressure terminal screws. It is UL Listed and CSA certified for demanding industrial environments.

Suited for Harsh Wet Locations

This plug serves maintenance crews and OEMs who need a locking, weatherproof connection on 60 A temporary-power or permanent-equipment circuits. The shrouded IEC grounding contacts add protection against accidental contact in damp or wash-down areas. Buyers who require a lower amperage rating, a different voltage configuration, or a non-locking straight-blade connector should look at other device families.

Simple Screw-Terminal Assembly

Installation consists of stripping conductors to the length implied by the terminal design, inserting them into the pressure screws, and tightening to the specified torque. The gasketed sealing ring must be seated evenly before the housing halves are clamped to maintain the IP67 seal. The most common issue is insufficient cord-grip compression on cables near the .83 in or 1.45 in limits, which can allow moisture ingress or strain-relief failure.

Highlights

  • Watertight reliability with IP67 ingress protection rating
  • Handles 60 A at 250 V AC single-phase power
  • Rugged Zytel 801 nylon housing resists impact and moisture
  • Accepts #8 to #2 AWG conductors via pressure terminal screws
  • Operates continuously from -40 °C to +75 °C

Specifications

BrandHUBBELL
Color/FinishBlue
Color MappingBlue
TypeLight Switch

Questions about this item

What cable diameter range does the 60 A plug accept for a watertight seal?

The cord-mounted design accepts cable diameters from .83 in to 1.45 in and uses a gasketed sealing ring to maintain IP67 ingress protection.

Will the plug fit a receptacle that follows the IEC 60309 pin-and-sleeve standard?

Yes — the plug is UL Classified to IEC60309-1 and uses the IEC grounding configuration with shrouded contacts for mating with compatible receptacles.

How can I verify the connection is secure after wiring the plug?

Tighten the pressure terminal screws onto #8 AWG to #2 AWG conductors, confirm the gasketed ring seats fully, and check that the IP67 rating is maintained with no visible gaps.
