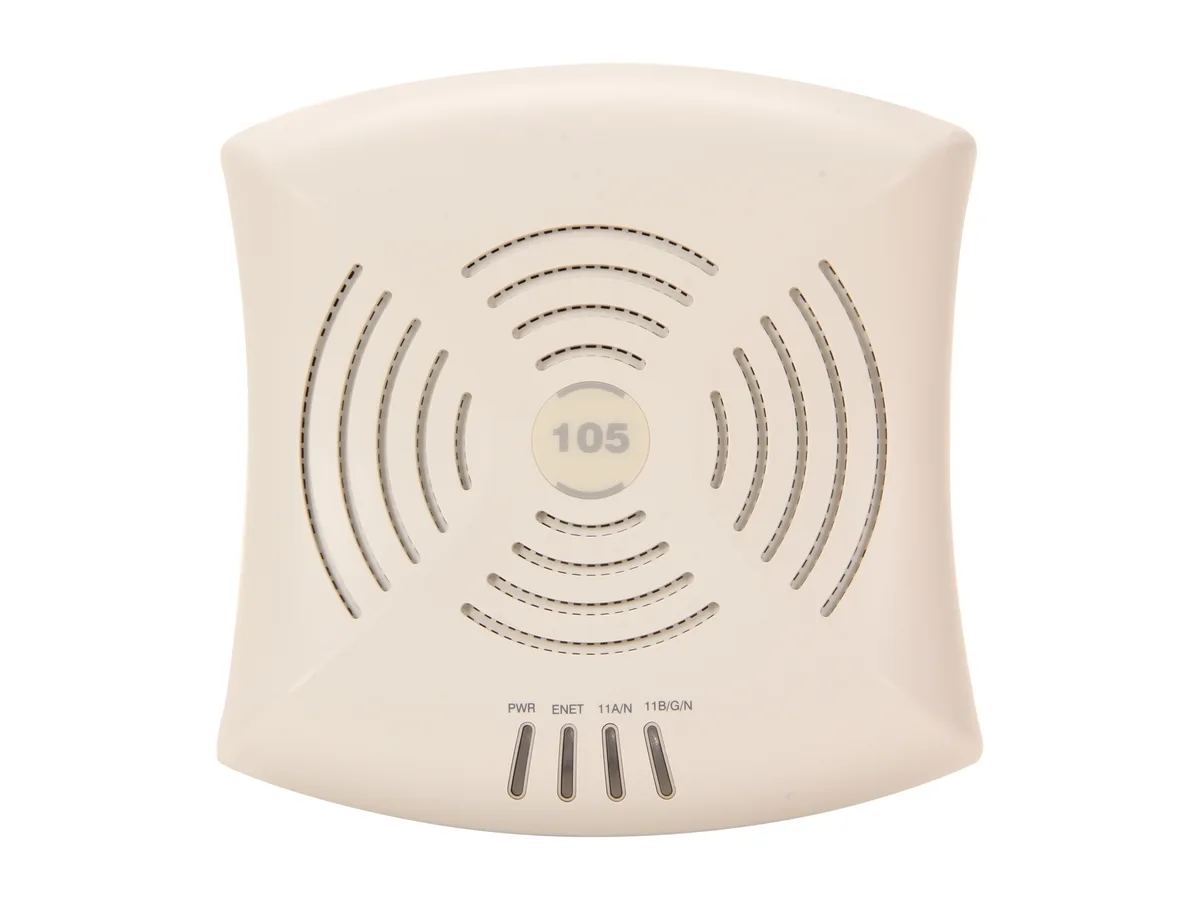

White square ceiling-mount wireless access point with four internal antennas

HPE Networking Instant On

HPE Networking Instant On IAP-105-US access point

SKU CH-KRY1-MVEPM

Dual-band 802.11n access point delivering 300 Mbps per radio with four integrated antennas and PoE power

  • StandardsIEEE 802.11a/b/g/n, 802.3/3u/3ab, 802.3af
  • Wireless Data Rates300Mbps per radio
  • Frequency Band2.400 to 2.4835 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.
  • ChannelsDependent upon configured regulatory domain
  • AntennaFour integrated, omni-directional antenna elements (supporti
  • Transmitted PowerConfigurable in increments of 0.5 dBm Maximum transmit power
  • 300 Mbps per radio for fast wireless throughput
  • Dual-band 2.4 GHz and 5 GHz coverage across multiple regulatory channels
  • Four integrated omni-directional antennas with 2x2 MIMO for reliable signal
  • PoE-powered at 12.5 W maximum for simple single-cable deployment
  • Mounts to drop-ceiling T-bar or flat surfaces with built-in tabs

Instant On IAP-105-US wireless access point

This HPE Instant On IAP-105-US access point delivers 300Mbps per radio across 2.4 GHz and 5 GHz bands using IEEE 802.11n technology. It supports up to 16 APs managed by a single Virtual Controller for small business or distributed deployments. The unit includes one 10/100/1000BASE-T Ethernet port and a console interface for local configuration. Integrated omni-directional antennas provide 2x2 MIMO with spatial diversity for reliable coverage.

Sustained load behaviour

Under continuous operation the AP draws a maximum of 12.5 watts and operates within 0°C to 50°C ambient temperature with 5% to 95% non-condensing humidity. Transmit power is configurable in 0.5 dBm increments up to 23 dBm per band, limited by local regulatory requirements. Maximum ratio combining improves receiver performance during extended high-density client sessions. The device is powered via 802.3af PoE or an optional 12 V DC adapter.

Pre-installation checks

Verify that your network infrastructure can supply 802.3af Power over Ethernet at 48 V DC or plan for a separate 12 V DC power adapter which is sold separately. Confirm the mounting surface suits the molded tabs for 15/16 inch T-bar ceiling grids or the slotted tabs for screw mounting to walls or flat surfaces. Ensure the single Gigabit Ethernet uplink meets your backhaul bandwidth expectations. The console port uses an RJ-45 connector for initial setup if required.

Highlights

  • 300 Mbps per radio for fast wireless throughput
  • Dual-band 2.4 GHz and 5 GHz coverage across multiple regulatory channels
  • Four integrated omni-directional antennas with 2x2 MIMO for reliable signal
  • PoE-powered at 12.5 W maximum for simple single-cable deployment
  • Mounts to drop-ceiling T-bar or flat surfaces with built-in tabs

Specifications

BrandHPE Instant On
SeriesInstant
ModelIAP-105-US
StandardsIEEE 802.11a/b/g/n, 802.3/3u/3ab, 802.3af
Wireless Data Rates300Mbps per radio
Frequency Band2.400 to 2.4835 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz
ChannelsDependent upon configured regulatory domain
AntennaFour integrated, omni-directional antenna elements (supporting up to 2x2 MIMO with spatial diversity)
Transmitted PowerConfigurable in increments of 0.5 dBm
Maximum transmit power:
2.4 GHz: 23 dBm (limited by local regulatory requirements)
5 GHz: 23 dBm (limited by local regulatory requirements)
Modulation802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n: Orthogonal frequency division multiplexing (OFDM)
Supported modulation types:
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
InterfaceEthernet Port
WAN PortsOne 10/100/1000BASE-T Ethernet (RJ-45)
One DC power connector
One RJ-45 console interface
Power Supply48 V DC 802.3af power over Ethernet
12 V DC for external AC supplied power (adapter sold separately)
Maximum power consumption: 12.5 watts
Temperature0°C - 50°C (32°F - 122°F)
Humidity5% - 95%, Non-Condensing
Dimensions5.2" x 5.3" x 1.8"
Weight10.56 oz.

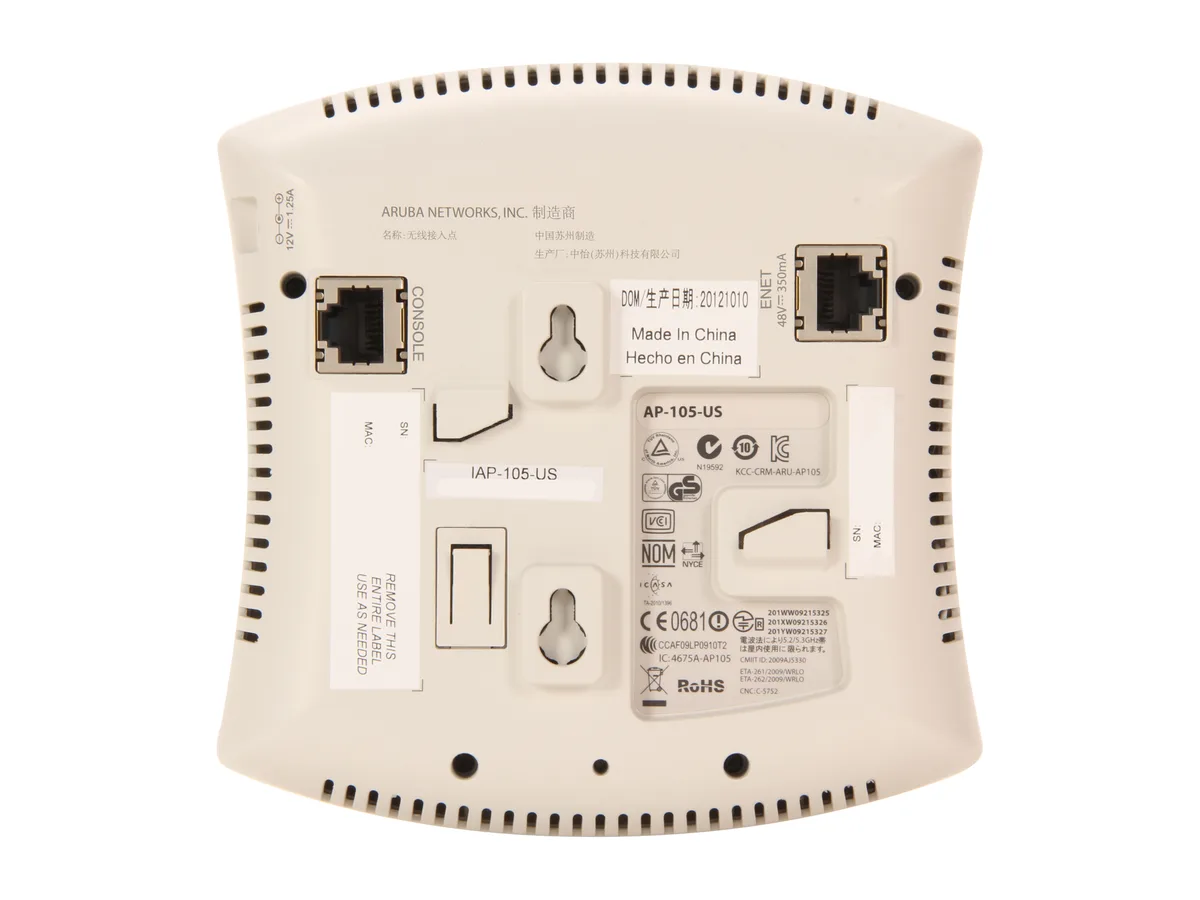

FeaturesMounting:
Molded mounting tabs for attaching to 15/16" T-bar drop-tile ceiling
Slotted tabs for screw mounting to a wall, ceiling or other flat surface
Maximum ratio combining (MRC) for improved receiver performance
802.11n high-throughput (HT) support: HT 20/40
802.11n packet aggregation: A-MPDU, A-MSDU
*No Power Adapter is Included.

Questions about this item

How much heat does the IAP-105-US generate when running continuously at its 12.5 watt maximum power draw?

At 12.5 watts maximum consumption the access point produces modest heat and operates silently with no fan; it is rated for 0 °C to 50 °C ambient temperature.

Which PoE standard or external adapter must I already have to power the IAP-105-US?

The unit requires 802.3af Power over Ethernet delivering 48 V DC, or a separate 12 V DC external AC adapter that is not included.

Will the IAP-105-US work alongside my older 802.11b/g clients on the 2.4 GHz band?

Yes, its 2.4 GHz radio supports 802.11b and 802.11g modulation (DSSS and OFDM) so legacy clients can associate at their native rates.
