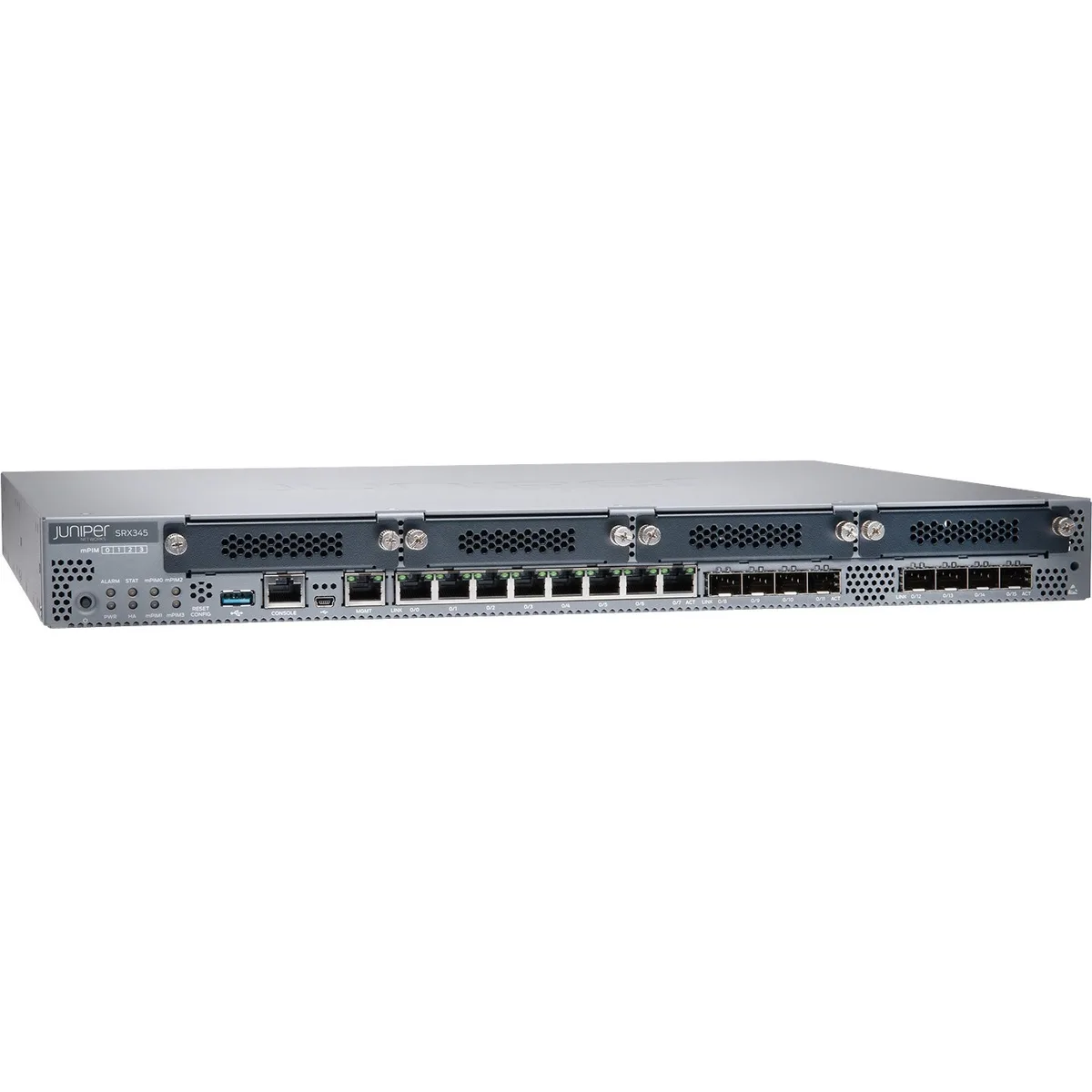

HPE Juniper SRX345 1U firewall appliance, silver rack-mount chassis, front ports visible

HPE Juniper Networking

HPE Juniper Networking SRX345-SYS-JB firewall appliance 16x1GbE 4GB RAM 8GB storage

SKU CH-2EA2-VMJEV MPN SRX345-SYS-JB

A 1U firewall appliance with 16 Gigabit Ethernet ports, 4 GB RAM and 8 GB storage, delivering 5 Gbps firewall and 977 Mbps IPSec VPN throughput

  • Form Factor1U
  • ProtocolsROUTING PROTOCOLS IPv4, IPv6, ISO, Connectionless Network Se
  • VPNTunnels: Site-to-Site, Hub and Spoke, Dynamic Endpoint, Auto
  • Power InputPower Supply: AC (external)
  • FeaturesPERFORMANCE AND SCALE Routing with packet mode (64 B packet
  • Dimensions17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm)
  • Consolidates security, routing, switching and WAN in a 1U form factor
  • 16 onboard 1 GbE ports provide high-density connectivity
  • 4 GB RAM and 8 GB storage support demanding network services
  • Up to 5 Gbps firewall throughput for robust threat protection
  • 977 Mbps IPSec VPN performance secures site-to-site and remote access

Consolidated security routing platform

The Juniper Networks SRX345 services gateway combines firewall, routing, switching and WAN connectivity in a single 1U appliance. Sixteen onboard 1GbE ports provide LAN and WAN density for branch offices. Four gigabytes of system memory and eight gigabytes of storage support the Junos software base feature set including NAT, IPSec VPN and MPLS.

Performance ceiling at IMIX traffic

Stateful firewall throughput reaches 2,300 Mbps with IMIX packet sizes and 5,500 Mbps with 1,518-byte packets. Routing performance is rated at 750 Kpps for 64-byte packets. IPSec VPN throughput peaks at 977 Mbps, which caps encrypted site-to-site or remote-access workloads.

Buyers who need more than sixteen copper ports

The fixed sixteen 1GbE interfaces cannot be expanded with additional copper density. Organisations requiring higher port counts, 10GbE uplinks or redundant power supplies must evaluate larger SRX models. The external AC power supply also removes internal redundancy.

Highlights

  • Consolidates security, routing, switching and WAN in a 1U form factor
  • 16 onboard 1 GbE ports provide high-density connectivity
  • 4 GB RAM and 8 GB storage support demanding network services
  • Up to 5 Gbps firewall throughput for robust threat protection
  • 977 Mbps IPSec VPN performance secures site-to-site and remote access

Specifications

BrandJuniper Networks
SeriesSRX300
ModelSRX345
Part NumberSRX345-SYS-JB
Form Factor1U
ProtocolsROUTING PROTOCOLS
IPv4, IPv6, ISO, Connectionless Network Service (CLNS)
Static routes
RIP v1/v2
OSPF/OSPF v3
BGP with Route Reflector
IS-IS
Multicast: Internet Group Management Protocol (IGMP) v1/v2, Protocol Independent Multicast (PIM) sparse mode (SM)/dense mode (DM)/source-specific multicast (SSM), Session Description Protocol (SDP), Distance Vector Multicast Routing Protocol (DVMRP), Multicast Source Discovery Protocol (MSDP), Reverse Path Forwarding (RPF)
Encapsulation: VLAN, Point-to-Point Protocol (PPP), Frame Relay, High-Level Data Link Control (HDLC), serial, Multilink Poin
VPNTunnels: Site-to-Site, Hub and Spoke, Dynamic Endpoint, AutoVPN, ADVPN, Group VPN (IPv4/ IPv6/ Dual Stack)
Juniper Secure Connect: Remote access / SSL VPN
Configuration payload: Yes
IKE Encryption algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB
IKE authentication algorithms: MD5, SHA-1, SHA-128, SHA-256, SHA-384
Authentication: Pre-shared key and public key infrastructure (PKI) (X.509)
IPSec (Internet Protocol Security): Authentication Header (AH) / Encapsulating Security Payload (ESP) protocol
IPSec Authentication Algorithms: hmac-md5, hmac-sha-196, hmac-sha-256
IPSec
Power InputPower Supply: AC (external)
FeaturesPERFORMANCE AND SCALE
Routing with packet mode (64 B packet size) in Kpps: 750
Routing with packet mode (IMIX packet size) in Mbps: 2,300
Routing with packet mode (1,518 B packet size in Mbps: 5,500
Stateful firewall (64 B packet size) in Kpps: 550
Stateful firewall (IMIX packet size) in Mbps: 1,500
Stateful firewall (1,518 B packet size) in Mbps: 5,000
IPSec VPN (IMIX packet size) in Mbps: 325
IPSec VPN (1,400 B packet size) in Mbps: 977
Application visibility and control in Mbps: 1,700
Recommended IPS in Mbps: 600
Next-generation firewall in Mbps: 430
Secure Web Access firewall in
Dimensions17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm)
Weight10.80 lb (4.90 kg)
Shipping weight4.99 kg
Package size551 × 526 × 152 mm

Questions about this item

Should I choose the SRX345-SYS-JB with 16x1GbE ports or a different SRX300 model?

The SRX345-SYS-JB provides 16 onboard 1GbE ports, 4 GB RAM and 8 GB storage in a 1U chassis; other SRX300 models such as the SRX300 have fewer ports and lower throughput, so select this model when you need the full 16-port density and up to 5 Gbps firewall performance.

What does the 5 Gbps firewall figure mean when the appliance is handling real traffic?

With 1,518-byte packets the routing throughput reaches 5,500 Mbps; with IMIX traffic it sustains 2,300 Mbps, and with 64-byte packets it processes 750 Kpps, so actual throughput depends on your typical packet size mix.

The unit has 16x1GbE interfaces — what total bandwidth can they deliver in practice?

All 16 ports are 1 GbE, giving a maximum aggregate line-rate of 16 Gbps, but the firewall engine is rated at 5 Gbps, so the effective throughput cap for inspected traffic is 5 Gbps regardless of how many ports are active.
