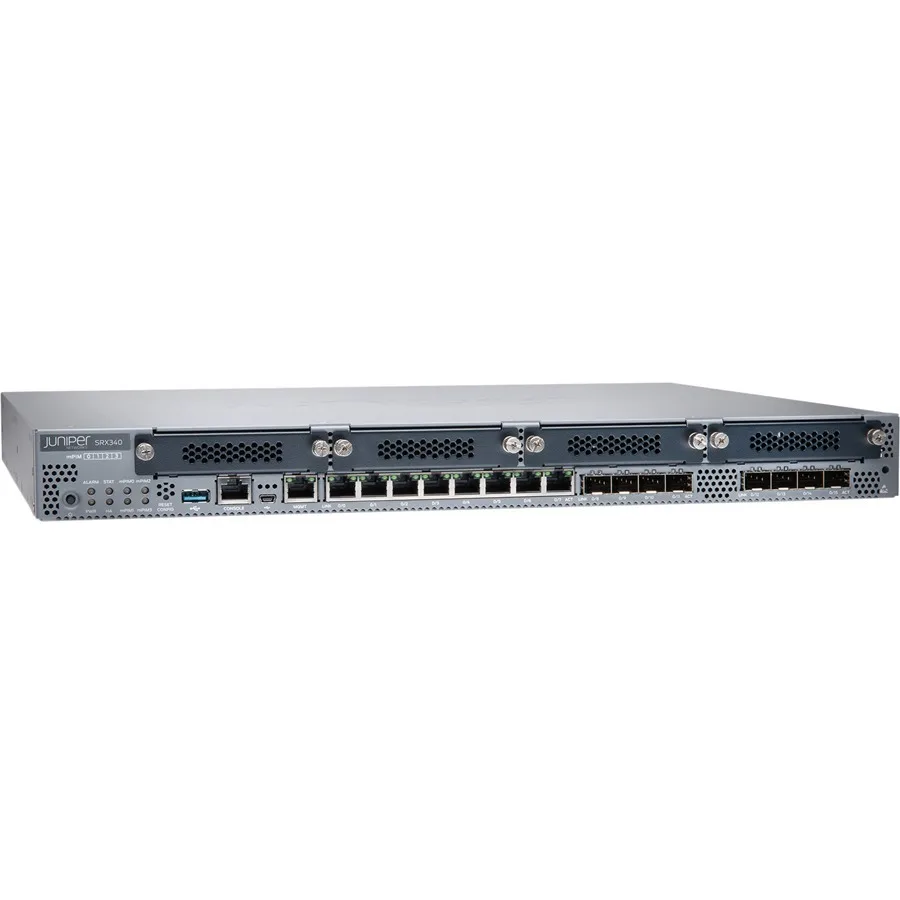

Silver 1U rack-mount firewall appliance with front ports

HPE Juniper Networking

HPE Juniper Networking SRX340-SYS-JB firewall appliance 1U 16x1GbE 4GB RAM 8GB storage

SKU CH-HTQS-5BDBG MPN SRX340-SYS-JB

A 1U firewall appliance with 16 onboard 1 GbE ports, 4 GB RAM and 8 GB storage, delivering up to 4.7 Gbps firewall and 733 Mbps IPSec VPN throughput

  • Form Factor1U
  • ProtocolsROUTING PROTOCOLS IPv4, IPv6, ISO, Connectionless Network Se
  • VPNTunnels: Site-to-Site, Hub and Spoke, Dynamic Endpoint, Auto
  • Power InputPower Supply: AC (external)
  • FeaturesPERFORMANCE AND SCALE Routing with packet mode (64 B packet
  • Dimensions17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm)
  • Consolidates security, routing, switching and WAN connectivity in a 1U form factor
  • Delivers up to 4.7 Gbps firewall throughput for high-speed threat inspection
  • Provides 733 Mbps IPSec VPN performance for secure site-to-site links
  • Includes 16 onboard 1 GbE ports for flexible LAN and WAN connectivity
  • Equipped with 4 GB RAM and 8 GB storage for logging and services

Product identity

The HPE Juniper Networking SRX340-SYS-JB is a 1U firewall appliance that combines routing, switching and security in a single rack-mount chassis. It provides sixteen 1 GbE ports, 4 GB of system memory and 8 GB of onboard storage for small to mid-size branch deployments.

Setup requirements

Verify that your rack can accommodate a 1U device measuring 17.36 x 1.72 x 14.57 inches and weighing 10.80 lb. Confirm an external AC power source is available and that your network design can use the sixteen 1 GbE interfaces for WAN, LAN and management connections.

Fit and alternatives

This appliance suits organisations that need integrated firewall, NAT, IPSec VPN, routing and switching with up to 4.7 Gbps firewall throughput and 733 Mbps IPSec VPN throughput in a compact form factor. Buyers who require higher port density, multi-gigabit interfaces or greater memory and storage capacity should evaluate larger platforms.

Highlights

  • Consolidates security, routing, switching and WAN connectivity in a 1U form factor
  • Delivers up to 4.7 Gbps firewall throughput for high-speed threat inspection
  • Provides 733 Mbps IPSec VPN performance for secure site-to-site links
  • Includes 16 onboard 1 GbE ports for flexible LAN and WAN connectivity
  • Equipped with 4 GB RAM and 8 GB storage for logging and services

Specifications

BrandJuniper Networks
SeriesSRX300
ModelSRX340
Part NumberSRX340-SYS-JB
Form Factor1U
ProtocolsROUTING PROTOCOLS
IPv4, IPv6, ISO, Connectionless Network Service (CLNS)
Static routes
RIP v1/v2
OSPF/OSPF v3
BGP with Route Reflector
IS-IS
Multicast: Internet Group Management Protocol (IGMP) v1/v2, Protocol Independent Multicast (PIM) sparse mode (SM)/dense mode (DM)/source-specific multicast (SSM), Session Description Protocol (SDP), Distance Vector Multicast Routing Protocol (DVMRP), Multicast Source Discovery Protocol (MSDP), Reverse Path Forwarding (RPF)
Encapsulation: VLAN, Point-to-Point Protocol (PPP), Frame Relay, High-Level Data Link Control (HDLC), serial, Multilink Poin
VPNTunnels: Site-to-Site, Hub and Spoke, Dynamic Endpoint, AutoVPN, ADVPN, Group VPN (IPv4/ IPv6/ Dual Stack)
Juniper Secure Connect: Remote access / SSL VPN
Configuration payload: Yes
IKE Encryption algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB
IKE authentication algorithms: MD5, SHA-1, SHA-128, SHA-256, SHA-384
Authentication: Pre-shared key and public key infrastructure (PKI) (X.509)
IPSec (Internet Protocol Security): Authentication Header (AH) / Encapsulating Security Payload (ESP) protocol
IPSec Authentication Algorithms: hmac-md5, hmac-sha-196, hmac-sha-256
IPSec
Power InputPower Supply: AC (external)
FeaturesPERFORMANCE AND SCALE
Routing with packet mode (64 B packet size) in Kpps: 550
Routing with packet mode (IMIX packet size) in Mbps: 1,600
Routing with packet mode (1,518 B packet size in Mbps: 3,000
Stateful firewall (64 B packet size) in Kpps: 350
Stateful firewall (IMIX packet size) in Mbps: 1,100
Stateful firewall (1,518 B packet size) in Mbps: 4,700
IPSec VPN (IMIX packet size) in Mbps: 239
IPSec VPN (1,400 B packet size) in Mbps: 733
Application visibility and control in Mbps: 1,000
Recommended IPS in Mbps: 400
Next-generation firewall in Mbps: 420
Secure Web Access firewall in
Dimensions17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm)
Weight10.80 lb (4.90 kg)
Shipping weight4.99 kg
Package size549 × 521 × 152 mm

Questions about this item

What comes in the box with the SRX340-SYS-JB and what must be purchased separately?

The unit ships as a 1U appliance with 16 onboard 1 GbE ports, 4 GB RAM, 8 GB storage and an external AC power supply. Transceivers, cables, rack-mount rails and any Junos feature licences are sold separately.

Which SRX340 version should I choose for a branch needing up to 4.7 Gbps firewall throughput?

The SRX340-SYS-JB model provides up to 4.7 Gbps firewall and 733 Mbps IPSec VPN performance with 16x1GbE ports, 4 GB RAM and 8 GB storage, matching the stated branch requirements.

What does the 550 Kpps routing figure mean for real-world traffic on this appliance?

At 64-byte packet size the SRX340 routes 550 Kpps; with IMIX traffic it delivers 1,600 Mbps and at 1,518-byte packets it reaches 3,000 Mbps routing throughput.
