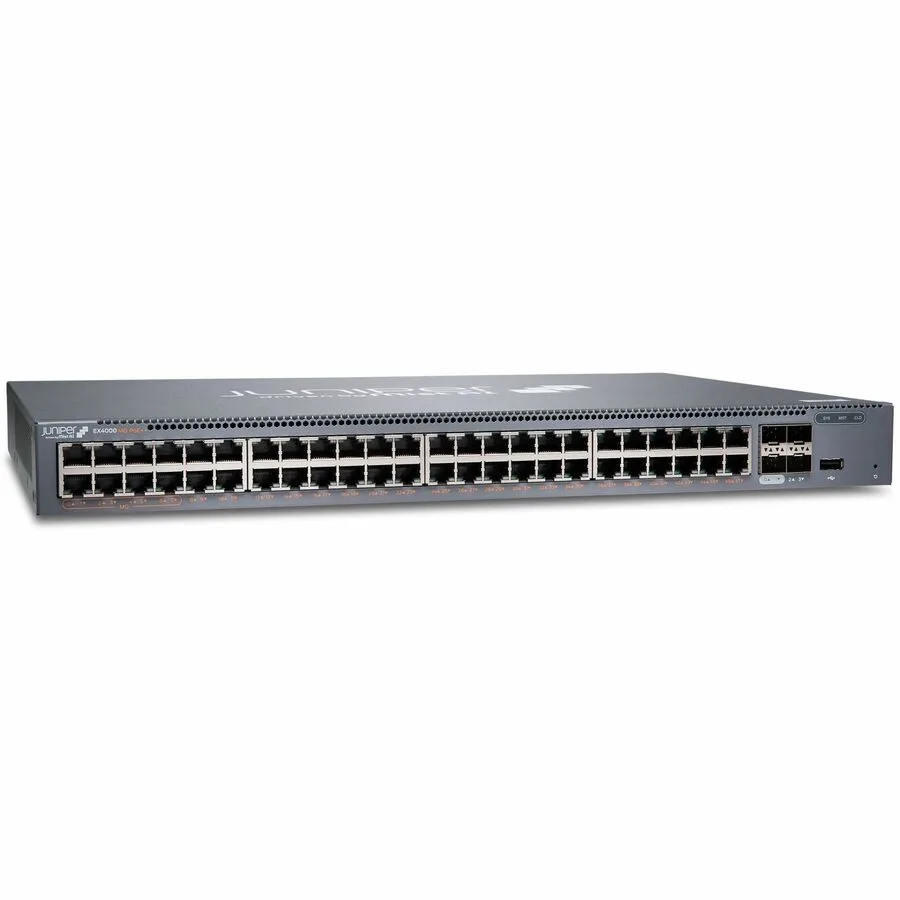

Silver 1U rackmount network switch with 48 RJ45 ports and 4 SFP+ uplinks

HPE Juniper Networking

HPE Juniper Networking EX4000-48MP 48-port PoE++ network switch

SKU CH-FMXY-420KN MPN EX4000-48MP

A managed 48-port switch with 8 multi-gigabit and 40 gigabit RJ45 ports, 4 SFP+ uplinks, PoE++ across all ports and a 960 W power budget

  • Network Management TypeManaged
  • Primary Ports48 x RJ45 + 4 x SFP+
  • SecurityMedia Access Control (MAC) limiting (per port and per VLAN)
  • PoEYes
  • QoSL2 QoS L3 QoS Ingress policing: 1 rate 2 color Hardware queu
  • Layer3
  • 48 PoE++ ports deliver up to 60W each for high-power devices
  • 960W total PoE budget powers dense access-point or camera deployments
  • 8 multi-gig ports at 2.5GBaseT boost uplink throughput
  • 4 SFP+ slots enable 1G or 10G fibre uplinks
  • Layer 3 routing with 1,000 IPv4 prefixes supports network segmentation

48-port PoE++ switch for managed networks

The HPE Juniper Networking EX4000-48MP is a managed Layer 3 switch that provides 48 RJ45 ports with PoE++ and four SFP+ uplinks. Eight RJ45 ports support multi-gigabit speeds up to 2.5G while forty ports operate at 10/100/1000BaseT. It delivers a 960W PoE budget with up to 60W per port for high-power devices. Cloud-native AI features integrate with Juniper Mist Wired Assurance.

Verify rack space and uplink optics before ordering

The unit measures 17.36 x 1.71 x 11.97 inches and weighs 5.2 kg, requiring a standard 1U rack slot. SFP+ transceivers for the four uplink ports are sold separately and must be sourced for the desired fibre or copper link. Ensure the site power infrastructure can sustain the 960W PoE budget plus the 92W base consumption. Confirm that connected endpoints negotiate IEEE 802.3bz or 802.3bt correctly.

Fixed chassis with front-to-rear airflow

The fixed form factor uses front-to-rear cooling suited to standard data-centre aisles. All 48 copper ports and four SFP+ cages sit on the front panel for straightforward patching. Perpetual PoE and Fast PoE keep powered devices alive during firmware reloads or brief power events. Hardware queues per port total 12 with strict priority and weighted deficit round-robin scheduling for consistent QoS.

Highlights

  • 48 PoE++ ports deliver up to 60W each for high-power devices
  • 960W total PoE budget powers dense access-point or camera deployments
  • 8 multi-gig ports at 2.5GBaseT boost uplink throughput
  • 4 SFP+ slots enable 1G or 10G fibre uplinks
  • Layer 3 routing with 1,000 IPv4 prefixes supports network segmentation

Specifications

BrandJuniper Networks, Inc.
SeriesEX4000
ModelEX4000-48MP
Part NumberEX4000-48MP
Network Management TypeManaged
Primary Ports48 x RJ45 + 4 x SFP+
SecurityMedia Access Control (MAC) limiting (per port and per VLAN)
Allowed MAC addresses: 32,000
Dynamic Address Resolution Protocol (ARP) dynamic ARP inspection (DAI)
IP source guard
Local proxy ARP
Static ARP support
Dynamic Host Configuration Protocol (DHCP) snooping
Captive portal
Persistent MAC address configurations
Distributed denial of service (DDoS) protection (CPU control path flooding protection)
PoEYes
QoSL2 QoS
L3 QoS
Ingress policing: 1 rate 2 color
Hardware queues per port: 12 (8 unicast + 4 multicast)
Scheduling methods (egress): Strict priority (SP), weighted deficit round-robin (WDRR)
802.1p, DiffServ code point (DSCP)/IP precedence trust and marking
L2-L4 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN, IP address, DSCP/IP precedence, TCP/UDP port numbers, and more
Congestion avoidance capabilities: Tail drop, weighted random early detection (WRED)
Layer3
Layer 2 FeaturesLayer 2 switching
Maximum MAC addresses per system: 32,000
Jumbo frames: 9216 bytes
Concurrent Active VLAN: 1020
Range of possible VLAN IDs: 1 to 4094
Virtual Spanning Tree (VST) instances: 253
Port-based VLAN
Voice VLAN
Physical port redundancy: Redundant trunk group (RTG)
Compatible with Per-VLAN Spanning Tree Plus (PVST+)
Routed VLAN interface (RVI)
Uplink failure detection (UFD)
ITU-T G.8032: Ethernet Ring Protection Switching
IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
LLDP-MED with VoIP integration
Default VLAN and multiple VLAN range support
MAC learning deactivate
Pers
Layer 3 FeaturesLayer 3 features: IPv4
Maximum number of ARP entries: 4,000
Maximum number of IPv4 unicast routes in hardware: 1,000 prefixes; 7,800 host routes
Maximum number of IPv4 multicast routes in hardware: 3,200 multicast routes
Routing protocols: RIPv1/v2, OSPF, BGP, IS-IS
Static routing
Routing policy
Bidirectional Forwarding Detection (BFD)
L3 redundancy: Virtual Router Redundancy Protocol (VRRP)
VRF-Lite
Layer 3 Features: IPv6
Maximum number of neighbor discovery (ND) entries: 3,000
Maximum number of IPv6 unicast routes in hardware: 1,000 prefixes; 3,800 host routes
Maximum number of IPv
PoE Ports48 x PoE++
PoE Power Budget960W
Max Power Consumptionwithout PoE: 92W
Dimensions17.36 x 1.71 x 11.97 in (44.10 x 4.34 x 30.40 cm)
Weight5.2 Kg
Shipping weight11.34 kg
Package size565 × 514 × 152 mm

Questions about this item

What comes in the box with the EX4000-48MP and do I need to buy SFP+ optics separately?

The switch includes the 48-port Multi-Gig chassis with 48 RJ45 ports and 4 SFP+ uplinks. Optics for the SFP+ ports are sold separately, so order the transceivers you need for fibre or direct-attach links.

How should I choose between the 8 multi-gig ports and the 40 standard gigabit ports for my devices?

The 8 ports support 100M, 1G and 2.5GBaseT speeds, while the remaining 40 ports run at 10/100/1000BaseT. Connect 2.5G-capable endpoints to the first 8 ports and standard gigabit devices to the other 40.

What does the 960W PoE++ budget mean for real-world deployments?

The 960W budget delivers up to 60W per port across all 48 PoE++ ports. You can power high-draw devices such as pan-tilt-zoom cameras or multi-radio access points on every port simultaneously without exceeding the switch's power supply.
