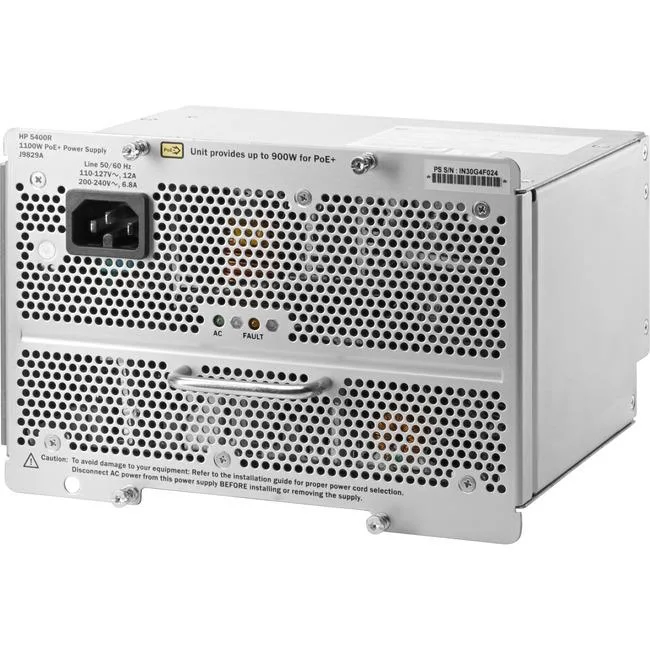

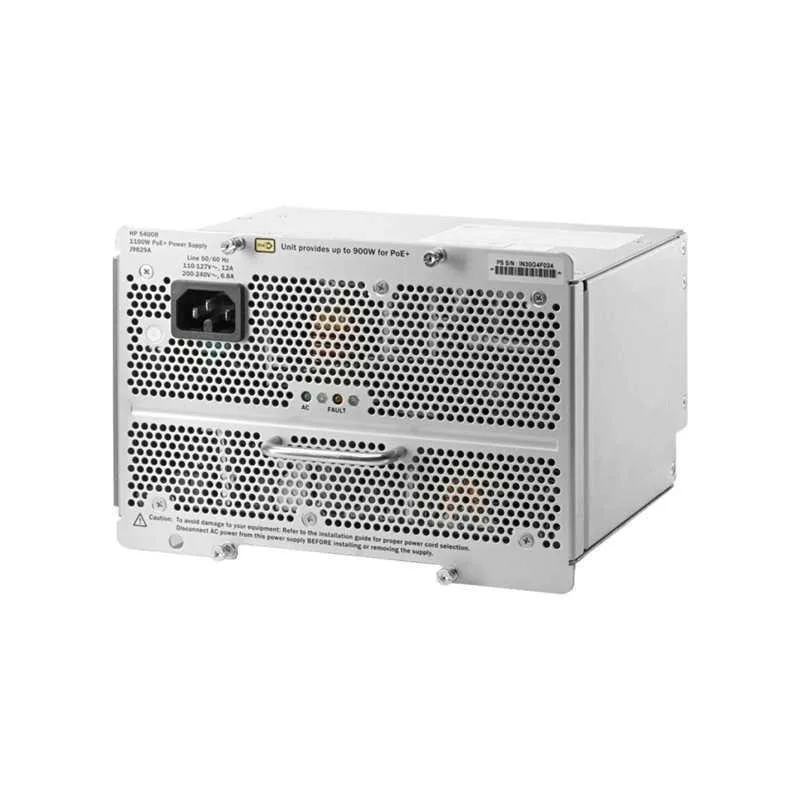

Rectangular silver power supply unit with rear connectors and side vents

HPE

HPE J9829A#ABA 5400R 1100W PoE+ zl2 server power supply

SKU CH-13H5-KDP15 MPN J9829A#ABA

Hot-swappable power module delivering 1100 W PoE+ to HPE 5400R zl2 switches

  • 1,100 W output powers PoE+ devices on 5400R zl2 switches
  • Dual 120 V AC / 230 V AC input fits global power grids
  • Hot-plug design enables replacement without switch downtime
  • Compact 5.1" x 7.5" x 6.3" form factor saves rack space
  • REACH certification confirms environmentally responsible materials

Purpose-built PoE+ module

The HPE 5400R 1100W PoE+ zl2 power supply is a hot-plug module designed exclusively for the 5400R zl2 switch series. It delivers up to 1100 W to power both switch operations and connected PoE+ devices such as access points or IP phones. Network engineers deploying campus access layers use this unit to consolidate power distribution in the rack. Buyers needing a redundant PSU for a different switch family cannot use this module.

Input range and output ceiling

The unit accepts 120 V AC or 230 V AC mains input and is rated for a maximum output of 1100 W. A 30 V AC figure also appears in the manufacturer data but is not a standard mains voltage for this product class. The 1.10 kW limit defines the total PoE+ budget available across all active ports. Installations that require more than 1100 W of combined switch and PoE load must add a second chassis or choose a higher-capacity platform.

Chassis fit and environmental compliance

The module measures 5.1 in high, 7.5 in wide and 6.3 in deep, weighing approximately 6.03 lb. It slides into the dedicated power-supply bay of the 5400R zl2 chassis and secures with a captive thumbscrew for tool-free replacement. The power supply carries REACH certification, confirming compliance with European chemical-substance regulations. Technicians should verify bay availability before ordering, as the zl2 chassis supports a finite number of power modules.

Highlights

  • 1,100 W output powers PoE+ devices on 5400R zl2 switches
  • Dual 120 V AC / 230 V AC input fits global power grids
  • Hot-plug design enables replacement without switch downtime
  • Compact 5.1" x 7.5" x 6.3" form factor saves rack space
  • REACH certification confirms environmentally responsible materials

Specifications

No published specifications for this item yet.

Questions about this item

Which capacity fits a 5400R zl2 switch that needs PoE+ on every port?

The 1100 W unit is the standard PoE+ power supply for the 5400R zl2 series and delivers up to 1100 watts for full PoE+ loads.

What does the 1100 watt rating actually provide inside the switch?

It supplies up to 1100 W of PoE+ power to connected devices while the switch itself draws from the same module.

What input voltages does the zl2 power module accept and what does that limit?

It operates on 120 V AC or 230 V AC, so maximum output is available on either mains voltage worldwide.
