White rectangular indoor access point with integrated antennas, two RJ45 ports and two USB ports

HPE

HPE Aruba Networking AP-735 S1G43A Wi-Fi 7 access point

SKU CH-B5N3-WX8HV MPN S1G43A

Tri-band Wi-Fi 7 access point with 9.3 Gbps aggregate throughput, dual 5 GbE ports and integrated Bluetooth 5.4 plus 802.15.4 radios for dense IoT environments

  • WiFi GenerationWi-Fi 7
  • Device ManagementOn-premises; Public Cloud; Virtual Private Cloud (VPC); as a
  • Wireless Data RatesMax bandwidths and peak data rate per band: 20/40 (2.4 GHz),
  • Frequency Band2.4 GHz + 5 GHz + 6 GHz or 5 GHz + 5 GHz + 6 GHz or 5 GHz +
  • AntennaIntegrated down tilt omnidirectional antennas for 2x2 MIMO w
  • Mounting LocationIndoor
  • Wi-Fi 7 tri-radio design reaches 14.4 Gbps peak data rate
  • Ultra Tri-Band filtering boosts 5 GHz and 6 GHz capacity by 30%
  • Dual 5 GbE ports provide link redundancy and PoE resilience
  • Integrated Bluetooth 5.4 and 802.15.4 radios connect twice the IoT endpoints
  • UL 2043 plenum rating allows installation in air-handling spaces

Campus Wi-Fi 7 tri-radio access point

The HPE Aruba Networking AP-735 S1G43A is an indoor tri-radio wireless access point built for enterprise campuses, healthcare facilities, education sites, retail spaces and industrial IoT deployments. It delivers Wi-Fi 7 connectivity across 2.4 GHz, 5 GHz and 6 GHz bands using integrated down-tilt omnidirectional antennas. Two 5 GbE wired ports provide redundant Ethernet and power connections. Management options include on-premises, public cloud, virtual private cloud and as-a-service models.

Suits high-density IoT

Organisations that need simultaneous 2.4 GHz, 5 GHz and 6 GHz coverage with integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee will benefit from the Ultra Tri-Band filtering and dual USB 2.0 host interfaces. Sites limited to legacy Wi-Fi generations or without multi-gigabit switching infrastructure will not utilise the 14.4 Gbps peak data rate or 320 MHz channel width on 6 GHz. The proprietary serial console connector also requires a specific cable not used by standard RJ45 consoles.

Dual 5 GbE ports with PoE-powered redundancy

The two 5 GbE RJ45 ports supply both data and power, enabling link redundancy and eliminating the need for a separate power supply. Verify that the upstream switch or injector can deliver sufficient PoE power for the access point.

Highlights

  • Wi-Fi 7 tri-radio design reaches 14.4 Gbps peak data rate
  • Ultra Tri-Band filtering boosts 5 GHz and 6 GHz capacity by 30%
  • Dual 5 GbE ports provide link redundancy and PoE resilience
  • Integrated Bluetooth 5.4 and 802.15.4 radios connect twice the IoT endpoints
  • UL 2043 plenum rating allows installation in air-handling spaces

Specifications

BrandHPE Aruba Networking
Series730 Series
ModelAP-735
Part NumberS1G43A
WiFi GenerationWi-Fi 7
Device ManagementOn-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Wireless Data RatesMax bandwidths and peak data rate per band: 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), maximum peak data rate 14.4 Gbps
Frequency Band2.4 GHz + 5 GHz + 6 GHz or 5 GHz + 5 GHz + 6 GHz or 5 GHz + 6 GHz + 6 GHz
AntennaIntegrated down tilt omnidirectional antennas for 2x2 MIMO with peak antenna gain of 5.1 dBi in 2.4 GHz, 5.5 dBi in 5 GHz (5.2 dBi in dual5 GHz mode) and 5.3 dBi in 6 GHz (5.2 dBi in dual6 GHz mode).
Built in antennas are optimized for horizontal ceiling-mounted orientation of the AP. The down tilt angle for maximum gain is roughly 30° to 40°.
Mounting LocationIndoor
InterfaceWired network interface: 2 x 5GbE

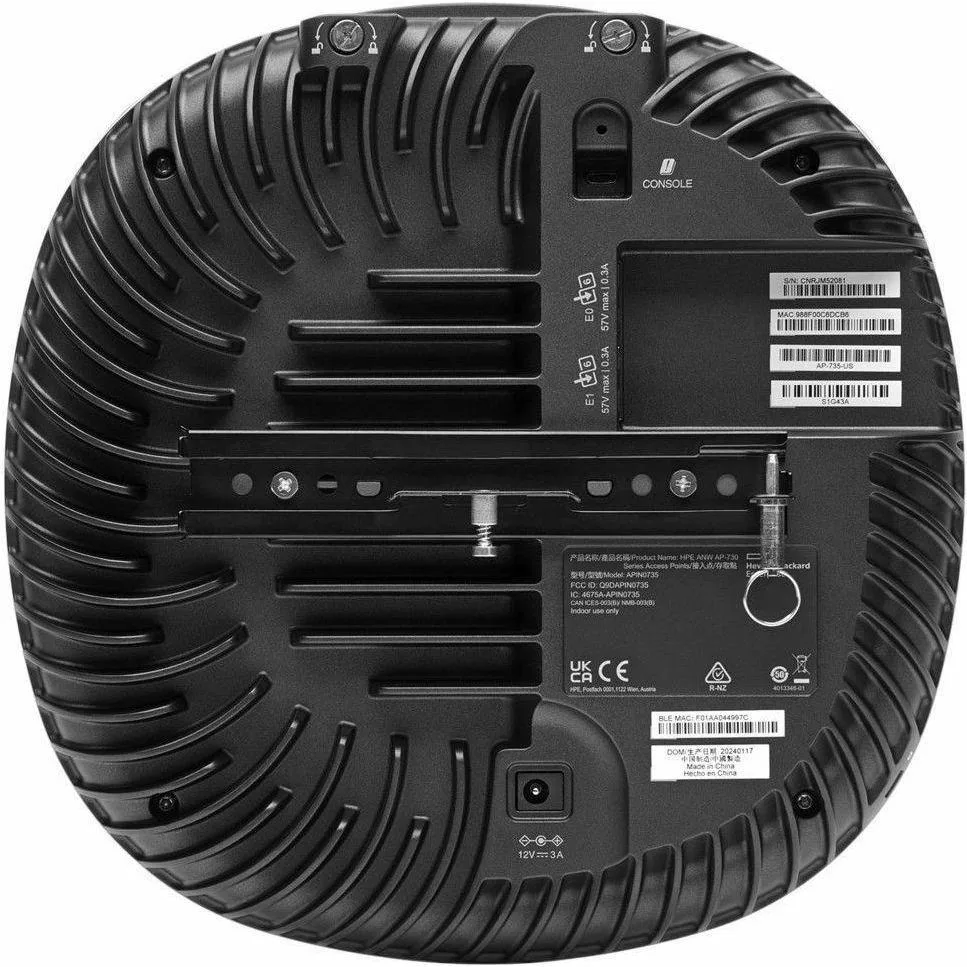

Ports: E0, E1: Two Ethernet wired network ports (RJ45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Kensington security slot Serial console interface (proprietary, microB USB physical jack)
CertificationsUL2043 plenum rating
WiFi Alliance®
Wi-Fi CERTIFIED® a, b, g, n, ac, 6, 7
WPA2 and WPA3 (Enterprise, Personal),
Enhanced Open (OWE)
WMM, WMM-PS, W-Fi agile multiband Bluetooth SIG
Ethernet Alliance (PoE, PD device, class 5)
ComplianceFCC/ISED CE Marked Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-2
Shipping weight1.50 kg
Package size269 × 259 × 91 mm

Questions about this item

What comes in the box with the S1G43A and what must I purchase separately?

The AP-735 ships with the access point and integrated antennas; mounting brackets, PoE injector or 5GbE switch, and any required licences are sold separately.

Which radio band combination should I select for the 735 — 2.4/5/6 GHz, dual-5/6 GHz or 5/dual-6 GHz?

Choose 2.4/5/6 GHz for legacy client support, dual-5/6 GHz when 5 GHz density is highest, or 5/dual-6 GHz to maximise 6 GHz capacity.

What does the 9.3 Gbps aggregate figure mean once the AP-735 is mounted and serving clients?

It represents the combined peak PHY rate across all three 2x2 radios under ideal conditions; real-world throughput will be lower due to overhead, client mix and channel width.
