Silver 2U rack server front panel with eight drive bays

HP

HP ProLiant DL380 Gen9 2U Rack Server E5-2670 v3 12C 2.3GHz 96GB DDR4 2x 1TB SATA B140i

SKU CH-YKAR-R3E43

A 2U rack server with a 12-core Xeon at 2.3 GHz, 96 GB DDR4, and two 1 TB SATA drives on a B140i controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon E5 v3
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 96GB

HDD 2 x 1TB

  • 12-core Xeon at 2.3 GHz handles heavy workloads
  • 96 GB DDR4 ECC memory supports large datasets
  • Two 1 TB 7.2K SATA drives provide storage capacity
  • B140i controller enables RAID 0/1/5/10 redundancy
  • Dual 500 W hot-swap power supplies ensure uptime

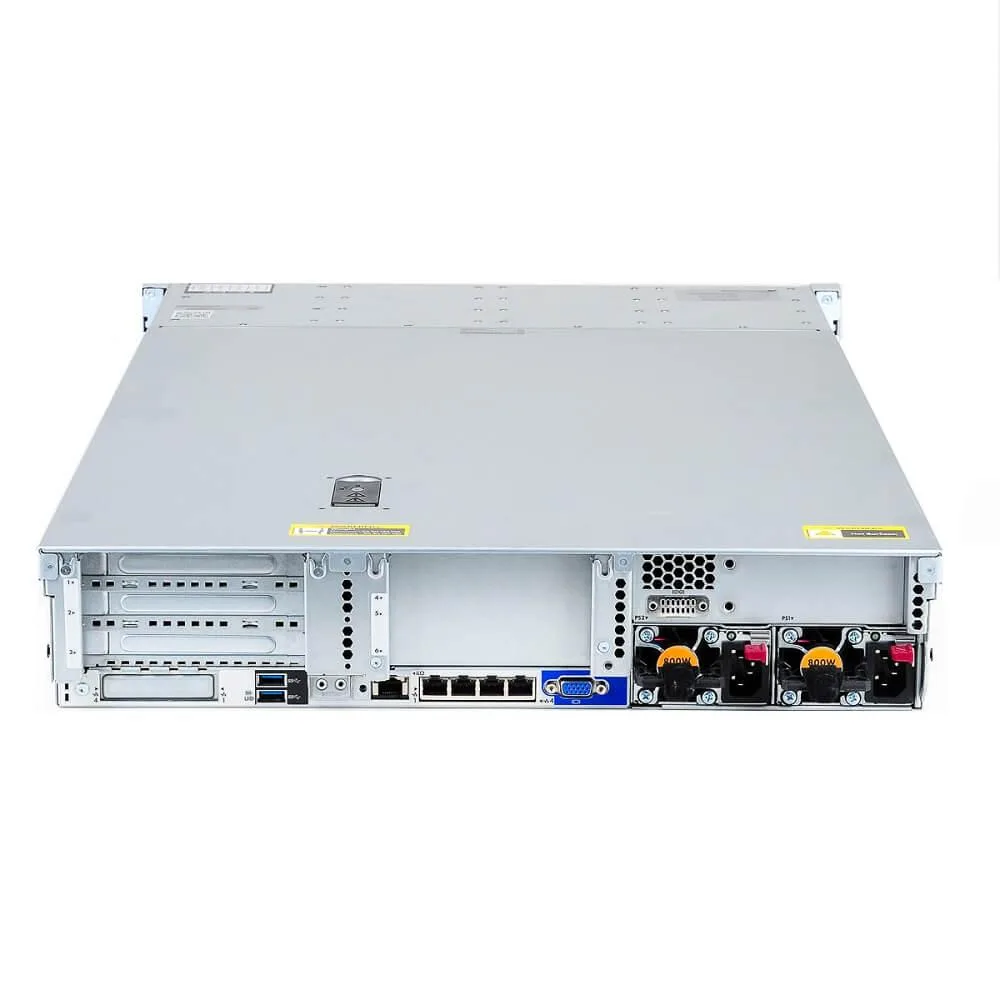

HP ProLiant DL380 Gen9 2U Rack Server

The HP ProLiant DL380 Gen9 is a 2U rack server built for data-centre workloads. It ships with a single Intel Xeon E5-2670 v3 twelve-core processor running at 2.3GHz. The system includes 96GB of DDR4 ECC registered memory across 24 DIMM slots. Redundant hot-swap 500W power supplies support continuous operation.

B140i Software RAID with SATA Drives

The storage controller is the B140i, which provides software RAID levels 0, 1, 5 and 10 for SATA devices only. Two 1TB 7.2K 6Gbps 2.5-inch enterprise SATA drives are installed in the 8-bay SFF chassis. The controller does not support SAS or NVME drives. Buyers who need hardware RAID or NVME boot devices must add a different controller.

Expandable Memory and Drive Bay Options

The server supports up to 3TB of total DDR4 memory when a second processor is added, using 24 slots at speeds up to 2400MT/s. Three drive bay zones allow expansion to 16 or 24 SFF bays, or the addition of NVME drives in bay 2. A universal media bay fits in bay 3 only. Builders who need GPU compute or fibre-channel connectivity must source compatible riser cards separately.

Highlights

  • 12-core Xeon at 2.3 GHz handles heavy workloads
  • 96 GB DDR4 ECC memory supports large datasets
  • Two 1 TB 7.2K SATA drives provide storage capacity
  • B140i controller enables RAID 0/1/5/10 redundancy
  • Dual 500 W hot-swap power supplies ensure uptime

Specifications

BrandHP
SeriesProLiant
ModelProliant DL380 G9
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon E5 v3
MAX Processors2
ChipsetIntel C610
Installed Memory Size96GB
Memory TypeDDR4
Max Memory Capacity96GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s ECC Registered, actual memory speed dependent on the processor capability).
Number of Memory Slots24
Storage ControllerB140i Software RAID
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/10
Media DrivesNone
GPU TypeMatrox G200eH2
Video Memory16MB
Remote ManagementiLO Management (standard).
LAN Ports4 x Ports
Expansion SlotsPrimary Riser: 3 PCIe 3.0 Slots (1-3) available: 2x Full-Height Half Length, 1x Half-Lenth Full Height. Optional 3 additional slots (Slot 2 PCIe Riser and dual CPU required).
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight63.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 2.3 GHz clock speed affect performance under heavy multi-threaded workloads?

The twelve-core Xeon E5-2670 v3 runs at a base frequency of 2.3 GHz with 24 threads available through Hyper-Threading, providing steady throughput for virtualisation and database tasks without relying on turbo bursts.

What RAID levels can the B140i controller actually deliver with the installed SATA drives?

The B140i software RAID supports RAID 0, 1, 5 and 10 across the two 1 TB 7.2K SATA drives, but it is limited to SATA-only operation and does not accelerate SAS or NVMe devices.

Will the 2.5-inch drive trays fit the eight SFF bays without extra hardware?

Yes, the server includes eight SFF bays and the two 1 TB enterprise SATA drives ship with their trays, so they mount directly in the front bays without additional caddies.
