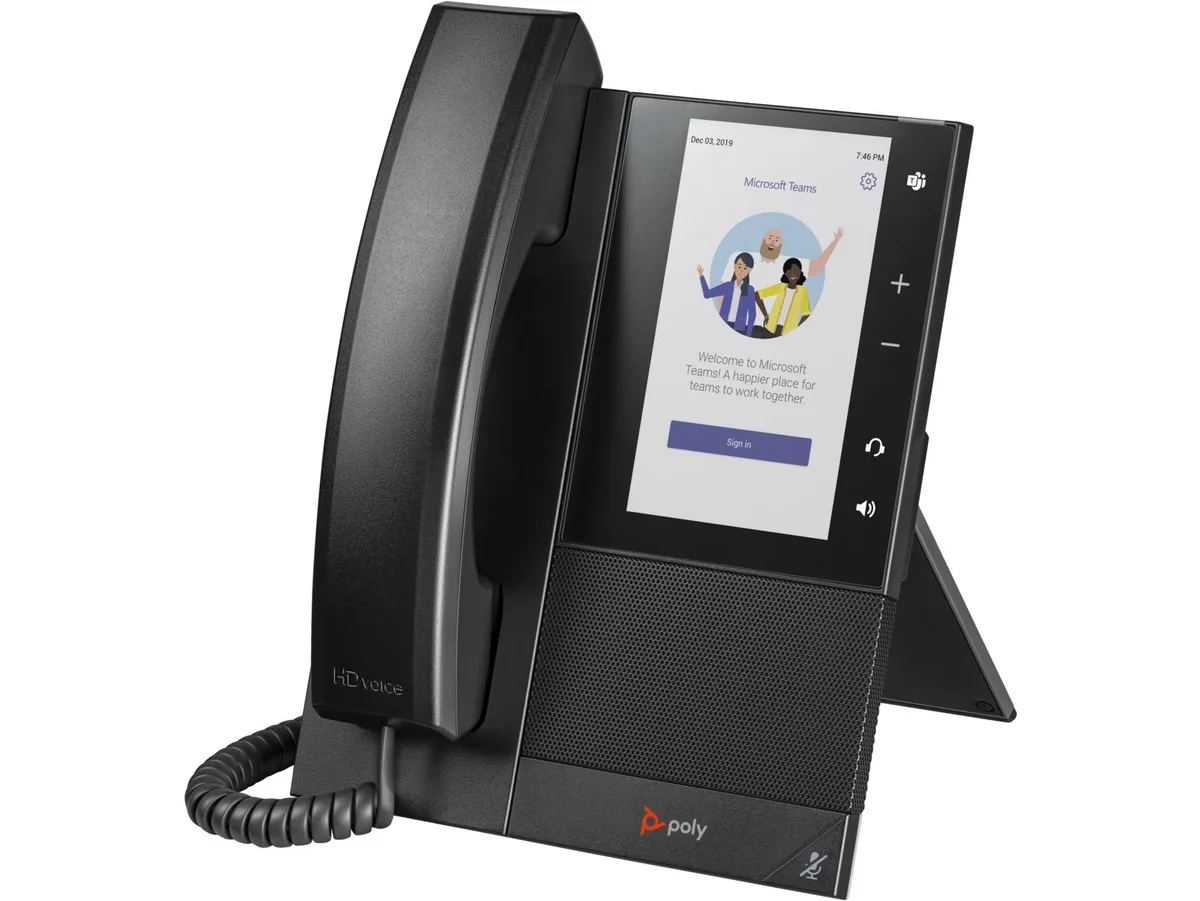

Black desktop VoIP phone with 5 inch colour touchscreen and corded handset

HP

HP Poly CCX 505 VoIP Phone 82Z79AA 24 lines 5 inch display PoE

SKU CH-T0N6-CPVFE MPN 82Z79AA

Desktop VoIP phone with 24 SIP lines, 5-inch touchscreen and PoE power

  • TypeVoIP Phones
  • Protocols10/100/1000 Base-TX across LAN and PC ports; Conforms to IEE
  • Security802.1X Authentication and EAPOL Media encryption via SRTP; D
  • Ports1 USB 2.0 Type-A (for media, storage applications, headset,
  • Displaywith Display
  • System RequirementsManagement Software Poly Lens; Poly Zero Touch Provisioning;
  • Clear conversations with Poly HD Voice and Acoustic Clarity
  • 24 SIP lines handle heavy call volumes
  • 5-inch multi-touch colour display for easy access
  • PoE powered — single cable for data and power
  • Microsoft Teams certified out of the box

Desk phone with 24 SIP lines

The HP Poly CCX 505 is a corded VoIP telephone built for offices that need many simultaneous registrations. It supports 24 SIP lines and presents them on a 5 inch colour touchscreen. Integrated Wi-Fi allows placement where Ethernet cabling is difficult. The handset and desk stand are included in the box.

Gigabit Ethernet with PoE class 0

Two RJ-45 ports provide 10/100/1000 Mbps connectivity for LAN and PC pass-through. The phone draws up to 13 W through IEEE 802.3af Power over Ethernet class 0, so a separate power supply is not required. Link negotiation follows IEEE 802.3 clauses 28 and 40 for broad switch compatibility.

USB-A and USB-C for peripherals

One USB 2.0 Type-A and one USB 2.0 Type-C port accept headsets, storage or an expansion module. Security features include 802.1X authentication, SRTP media encryption and HTTPS provisioning. Management is handled through Poly Lens, Zero Touch Provisioning or the web interface. The unit weighs 2.850 lbs and ships with a CAT-5E cable.

Highlights

  • Clear conversations with Poly HD Voice and Acoustic Clarity
  • 24 SIP lines handle heavy call volumes
  • 5-inch multi-touch colour display for easy access
  • PoE powered — single cable for data and power
  • Microsoft Teams certified out of the box

Specifications

BrandHP
ModelPoly CCX 505
Part Number82Z79AA
TypeVoIP Phones
Protocols10/100/1000 Base-TX across LAN and PC ports; Conforms to IEEE802.3- 2005 (Clause 40) for physical media attachment; Conforms to IEEE802.3- 2002 (Clause 28) for link partner auto-negotiation; Manual or dynamic host configuration protocol (DHCP) network setup
Security802.1X Authentication and EAPOL Media encryption via SRTP; Digest authentication; Encrypted configuration files; HTTPS secure provisioning; Password login; Support for signed software executables; Support for URL syntax with password; Transport Layer Security (TLS)
Ports1 USB 2.0 Type-A (for media, storage applications, headset, expansion module); 1 USB 2.0 Type-C® (for media, storage applications, headset, expansion module); 2 RJ-45 (10/100/1000 Mbps)
Displaywith Display
System RequirementsManagement Software
Poly Lens; Poly Zero Touch Provisioning; Polycom Device Management Service for Service Providers (PDMS-SP) Cloud Management; Web UI to device IP address.
PowerBuilt-in auto sensing IEEE 802.3af Power over Ethernet (Class 0); 13 W (maximum)
SpecificationsTelephony and call handling features
Busy Lamp Field (BLF); Call timer and call waiting; Caller ID enable/disable; Distinctive incoming call treatment/call waiting; Do not disturb function; One-touch speed dial, redial; Shared call/bridged line appearance; Automatic off-hook call placement (hot dialing); Call media recording/playback; Automatic/remote answer on headset using electronic hook-switch; Call hold/resume, diversion (forward), transfer (consultation, blind), pickup; Calling, called, connected party identification; Call forward for shared lines; Private hold for shared lines
Features24 lines (SIP registrations)
Package ContentsSetup sheet; Console; Network (LAN) cable-CAT-5E; Desk stand; Handset with handset cord
Shipping weight1.00 kg
Package size264 × 241 × 71 mm

Questions about this item

How many SIP registrations does the CCX 505 support?

The phone handles 24 SIP registrations, so you can configure up to 24 separate lines or identities on one device.

What does the 13 W maximum power draw mean for my PoE switch?

The phone draws up to 13 W over IEEE 802.3af PoE, so any standard Class 0 PoE port will supply enough power without a separate adapter.

What speed do the two RJ-45 ports actually deliver?

Both RJ-45 ports run at 10/100/1000 Mbps, giving you a gigabit uplink to the network and a gigabit pass-through for a PC.
