Compact rectangular HP USB 2.0 docking station with matte dark finish, front ports and slim profile

HP

HP FQ834UT#ABA USB 2.0 docking station

SKU CH-P2BX-EQNR6 MPN FQ834UT#ABA

USB 2.0 docking station adds 4 USB 2.0 ports, VGA, DVI-D, audio and Ethernet for compatible HP notebooks

  • CompatibilityHP 2133 Mini-Note PC HP 550 Notebook PC HP Compaq 2230s Note

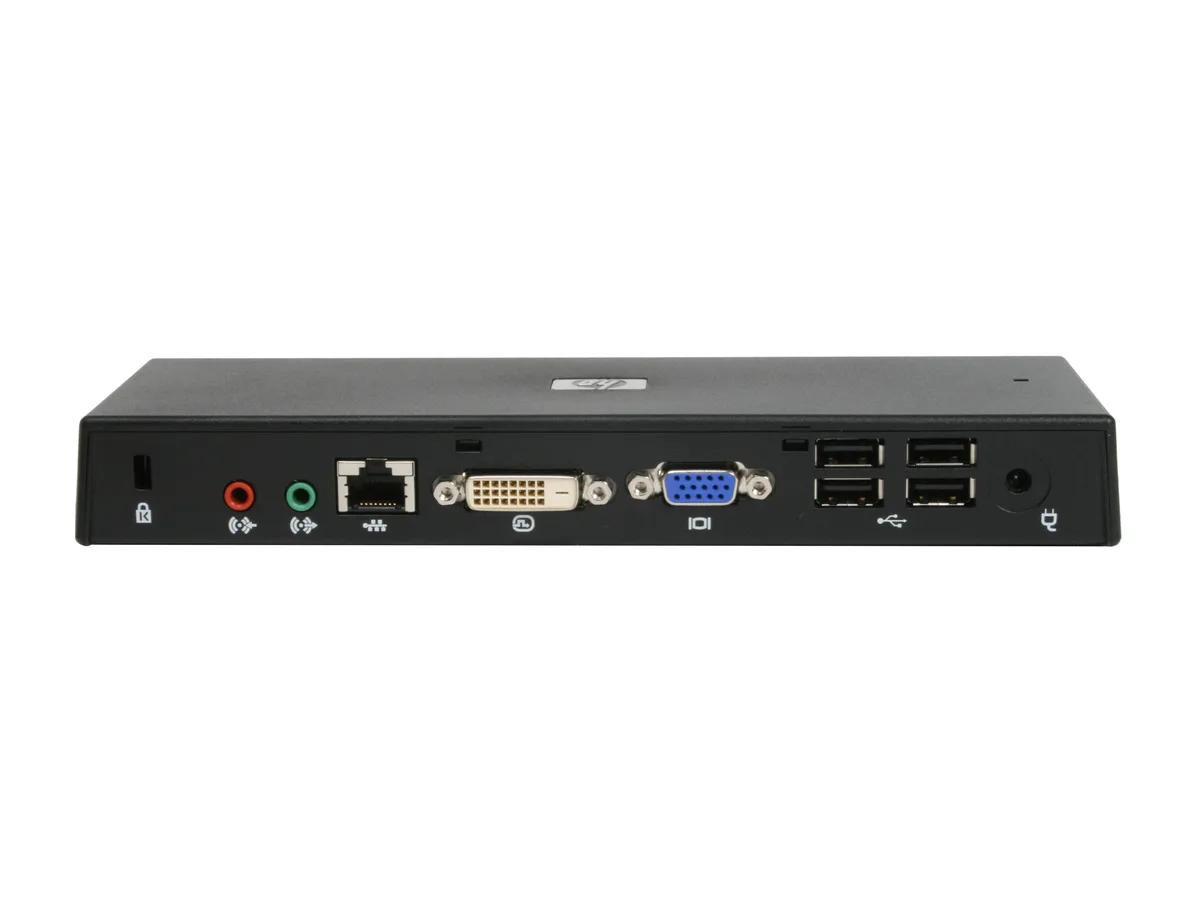

  • Ports Spec4 USB 2.0, VGA, DVI-D, Headphone, Microphone and Ethernet
  • FeaturesThe HP USB 2.0 Docking Station uses universal USB technology
  • Dimension8.66" x 3.2" x 1.1"
  • Weight11.32 oz.
  • Connect multiple displays via VGA and DVI-D ports
  • Expand connectivity with four USB 2.0 ports for peripherals
  • Wired network access through integrated Ethernet port
  • Audio in and out with dedicated headphone and microphone jacks
  • Compact 8.66 x 3.2 x 1.1 inch design saves desk space

What this docking station adds

The HP FQ834UT#ABA USB 2.0 Docking Station expands a single USB port into four USB 2.0 ports, VGA, DVI-D, headphone, microphone and Ethernet connections. It draws power and data through one universal USB link so no driver disc is required. The unit measures 8.66 by 3.2 by 1.1 inches and weighs 11.32 ounces.

Who this suits and who should look elsewhere

Owners of the listed HP notebook models — including the 2133 Mini-Note, 550, Compaq 2230s, 2510p, 2710p, 6530b, 6535b, 6730b, 6730s, 6735b, 6735s, 6830s, 6910p, 8510p, 8710p, 8710w, EliteBook 2530p, 2730p, 6930p, 8530p, 8530w, 8730w and Mini 2140 — gain a compact desk dock for legacy peripherals and dual-display output. Buyers who need more than two external monitors, faster USB speeds, additional video interfaces or a dock for non-listed laptops should look elsewhere.

The spec that decides fit

A single USB 2.0 upstream connection carries all video, audio, network and peripheral traffic, so the host laptop must provide that port and the user must accept the shared bandwidth limit.

Highlights

  • Connect multiple displays via VGA and DVI-D ports
  • Expand connectivity with four USB 2.0 ports for peripherals
  • Wired network access through integrated Ethernet port
  • Audio in and out with dedicated headphone and microphone jacks
  • Compact 8.66 x 3.2 x 1.1 inch design saves desk space

Specifications

BrandHP
ModelFQ834UT#ABA
CompatibilityHP 2133 Mini-Note PC
HP 550 Notebook PC
HP Compaq 2230s Notebook PC
HP Compaq 2510p Notebook PC
HP Compaq 2710p Notebook PC
HP Compaq 6530b Notebook PC
HP Compaq 6535b Notebook PC
HP Compaq 6730b Notebook PC
HP Compaq 6730s Notebook PC
HP Compaq 6735b Notebook PC
HP Compaq 6735s Notebook PC
HP Compaq 6830s Notebook PC
HP Compaq 6910p Notebook PC
HP Compaq 8510p Notebook PC
HP Compaq 8710p Notebook PC
HP Compaq 8710w Mobile Workstation
HP EliteBook 2530p Notebook PC
HP EliteBook 2730p Notebook PC
HP EliteBook 6930p Notebook PC
HP EliteBook 8530p Notebook PC
HP EliteBook 8530w Mobile W
Ports Spec4 USB 2.0, VGA, DVI-D, Headphone, Microphone and Ethernet
FeaturesThe HP USB 2.0 Docking Station uses universal USB technology to pass through critical signals such as video, audio, LAN and peripheral connectivity (keyboard, mouse, printer). No need for a CD, this docking station has flash memory that stores installation-ready software drivers. This device supports one display output at a time (DVI or VGA).
Universal USB connectivity that enables attach to HP and other notebooks
Plug and Play - Onboard flash memory module with installation software
XP compatibility & Vista compatibility up to Vista 64
Dimension8.66" x 3.2" x 1.1"
Weight11.32 oz.
Shipping weight1.36 kg
Package size241 × 229 × 64 mm

Questions about this item

Which HP notebook models work with the FQ834UT#ABA docking station?

The dock is validated for HP 2133 Mini-Note, 550, Compaq 2230s, 2510p, 2710p, 6530b, 6535b, 6730b, 6730s, 6735b, 6735s, 6830s, 6910p, 8510p, 8710p, 8710w, EliteBook 2530p, 2730p, 6930p, 8530p, 8530w, 8730w and Mini 2140 models.

What video outputs are available when the dock is connected to a compatible notebook?

The station provides both VGA and DVI-D ports, allowing a single external monitor to be driven through either analogue or digital video from the host USB link.

How does the USB 2.0 connection affect Ethernet and peripheral performance?

All traffic for the wired LAN port, four USB 2.0 peripherals, audio in and out, and both video outputs shares the single USB 2.0 upstream link, so combined throughput is limited to the host controller's USB 2.0 signalling rate.
