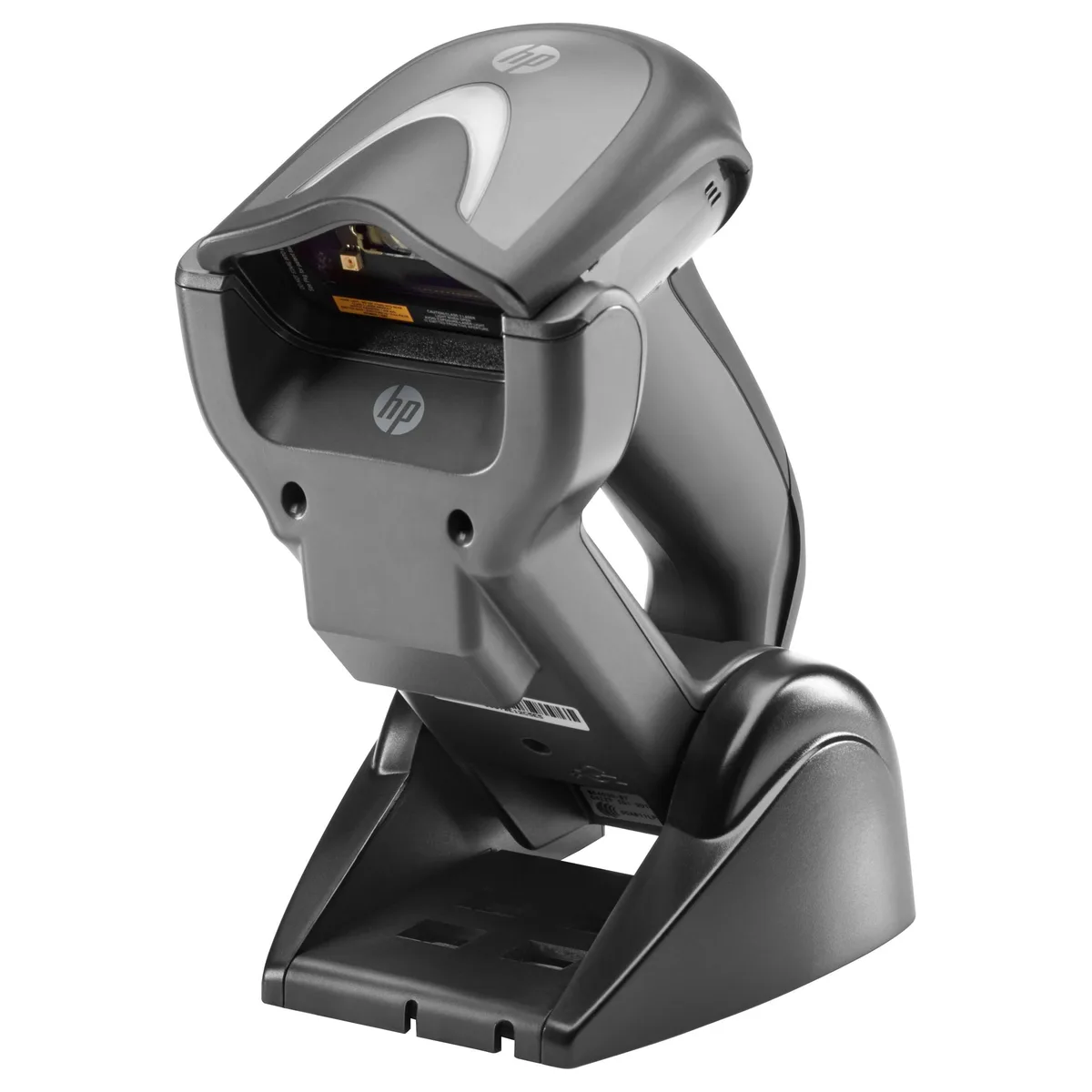

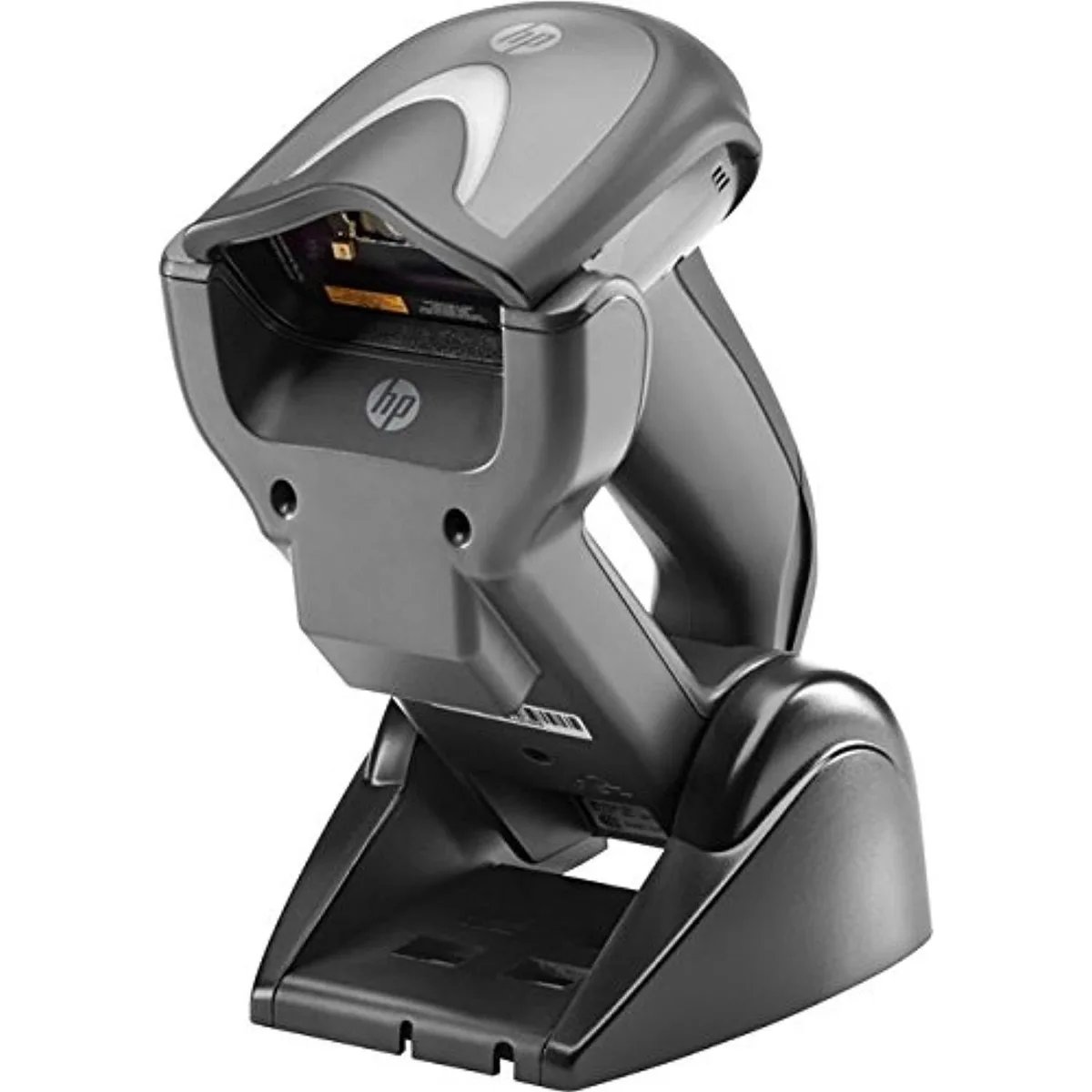

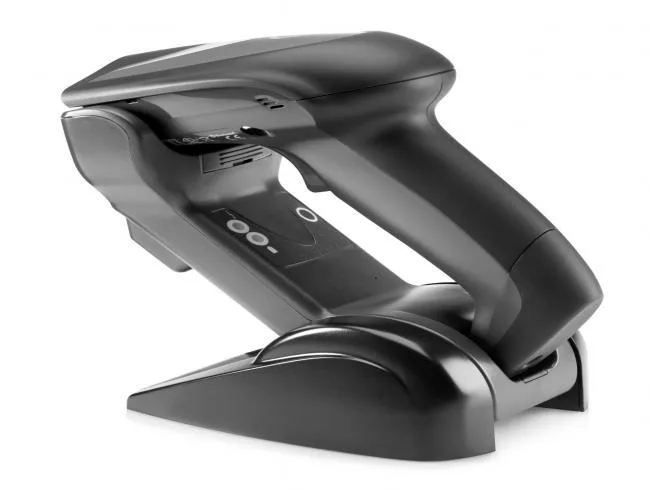

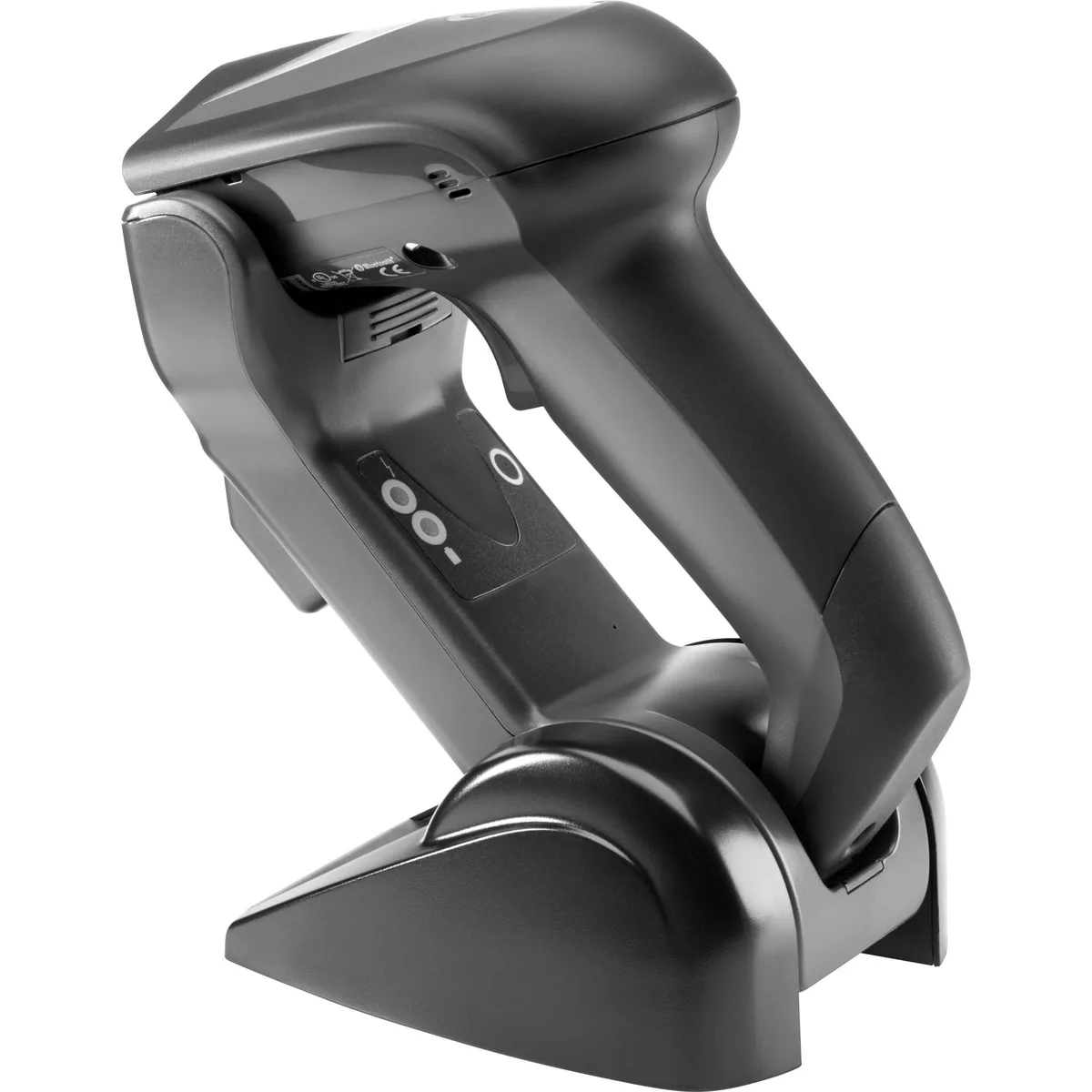

Black handheld barcode scanner with charging cradle

HP

HP E6P34AA Bluetooth 2.0 Cordless 1D/2D Handheld Barcode Scanner

SKU CH-04EE-ZFSBB MPN E6P34AA

Cordless 1D/2D imager reads barcodes up to 30.0 m via Bluetooth 2.0 and recharges in its stand

  • Form FactorHandheld
  • ConnectivityCordless
  • Interfaces SupportedUSB 2.0 / Type A
  • Cordless TypePiconet: Max. Readers per Radio Receiver: 7 (when using an e
  • Depth of Scan FieldCode 39: 10 mils (4.0 to 19.0 cm / 1.6 to 7.5 in) Code 39: 1
  • BatteryBattery type: Lithium-Ion, 2100 mAh Charge time: 16 hours us
  • Wireless freedom up to 30.0 m with Bluetooth 2.0 Class 2
  • Reads 1D and 2D codes omni-directionally from near contact to 30.0 cm
  • Cordless design eliminates cable clutter at the point of sale
  • 2100 mAh lithium-ion battery powers a full shift on one charge
  • Scanner and base each weigh 0.54 lb for comfortable all-day use

Cordless 1D/2D Barcode Scanner

The HP E6P34AA is a handheld imager that reads both one-dimensional and two-dimensional codes without a cable. It connects through a USB 2.0 Type A dongle using Bluetooth 2.0 Class 2 at 2.4 GHz. Up to seven scanners can share one Piconet receiver. The unit ships new in black with a presentation stand that doubles as a charger.

Setup checks before ordering

Confirm the host runs Windows XP Professional, Windows 7 Professional 64-bit, Windows 8.1 Professional 64-bit, Windows Embedded POSReady 7 64-bit or Windows Embedded POSReady 2009. A free USB Type A port is required for the radio receiver. The scanner uses the Serial Port Profile, so the operating system must expose a virtual COM port for the application. Verify the 30.0 m open-air range covers the intended work area.

Thermals noise and power draw

Typical operating draw is below 2.5 W at 5 VDC from the USB supply. Standby current stays under 2.5 mA at the same voltage. The lithium-ion pack of 2100 mAh recharges in 16 hours while seated in the stand. No fan is present, so the device runs silently. Red, green and yellow LEDs on the cradle show charging status and power or data activity.

Highlights

  • Wireless freedom up to 30.0 m with Bluetooth 2.0 Class 2
  • Reads 1D and 2D codes omni-directionally from near contact to 30.0 cm
  • Cordless design eliminates cable clutter at the point of sale
  • 2100 mAh lithium-ion battery powers a full shift on one charge
  • Scanner and base each weigh 0.54 lb for comfortable all-day use

Specifications

BrandHP
Part NumberE6P34AA
Form FactorHandheld
ConnectivityCordless
Interfaces SupportedUSB 2.0 / Type A
Cordless TypePiconet: Max. Readers per Radio Receiver: 7 (when using an external Piconet dongle)
Profiles: SPP (Serial Port Profile)
Protocol: Bluetooth 2.0 Certified Class 2
Radio Frequency: 2.4 GHz
Radio Range (Open Air): 30.0 m / 98.4 ft
Range distances are measured using the base station.
Range with connection to other Bluetooth peripherals may show different results.
Security: Data Encryption
Scanner Authentication
Depth of Scan FieldCode 39: 10 mils (4.0 to 19.0 cm / 1.6 to 7.5 in)
Code 39: 10 mils (1.0 to 30.0 cm / 0.4 to 11.8 in)
Data Matrix: 10 mils (2.0 to 16.0 cm / 0.8 to 6.3 in)
Data Matrix: 15 mils (0 to 23.6 cm / 0 to 9.3 in)
EAN: 13 mils (1.5 to 40.0 cm / 0.6 to 15.7 in)
PDF417: 10 mils (0.5 to 22.0 cm / 0.2 to 8.6 in)
QR Code: 10 mils (3.0 to 12.5 cm / 1.2 to 4.9 in)
BatteryBattery type: Lithium-Ion, 2100 mAh
Charge time: 16 hours using USB (5v)
Cradle Indicator LEDs:
Battery Charging (Red)
Charge Completed (Green)
Power/Data (Yellow)
Input Voltage5 V (USB)
CurrentOperating (Typical): < 2.5 W @ 5 VDC
Standby/Idle (Typical): < 2.5 mA @ 5 VDC
ColorBlack
Dimensions7.25" x 3.90" x 2.20" (base station)
7.10" x 2.80" x 3.90" (scanner)
WeightCharger:0.54 lb.
Scanner: 0.54 lb.
Operating Systems SupportedWindows 8.1 Professional 64-bit
Windows Embedded 8.1
Windows 7 Professional 64-bit
Windows Embedded POSReady 7 64-bit
Windows Embedded POSReady 2009
Windows XP Professional
Shipping weight1.36 kg
Package size305 × 229 × 102 mm

Questions about this item

Does the HP E6P34AA package include a charging cradle and USB cable, or must they be purchased separately?

The box contains the handheld scanner, a presentation stand that recharges the 2100 mAh lithium-ion battery, and a USB 2.0 Type A cable for data and power.

Which Bluetooth profile should I select for a direct PC connection without an external dongle?

The scanner uses the Serial Port Profile over Bluetooth 2.0 Class 2, so pair it directly to a Windows 7, 8.1 or POSReady host — no extra dongle required.

How far can the scanner read a standard 13 mil EAN barcode in a real shop environment?

In open air the radio reaches 30.0 m; the imager reads a 13 mil EAN code from roughly 4.0 to 19.0 cm depending on lighting and angle.
