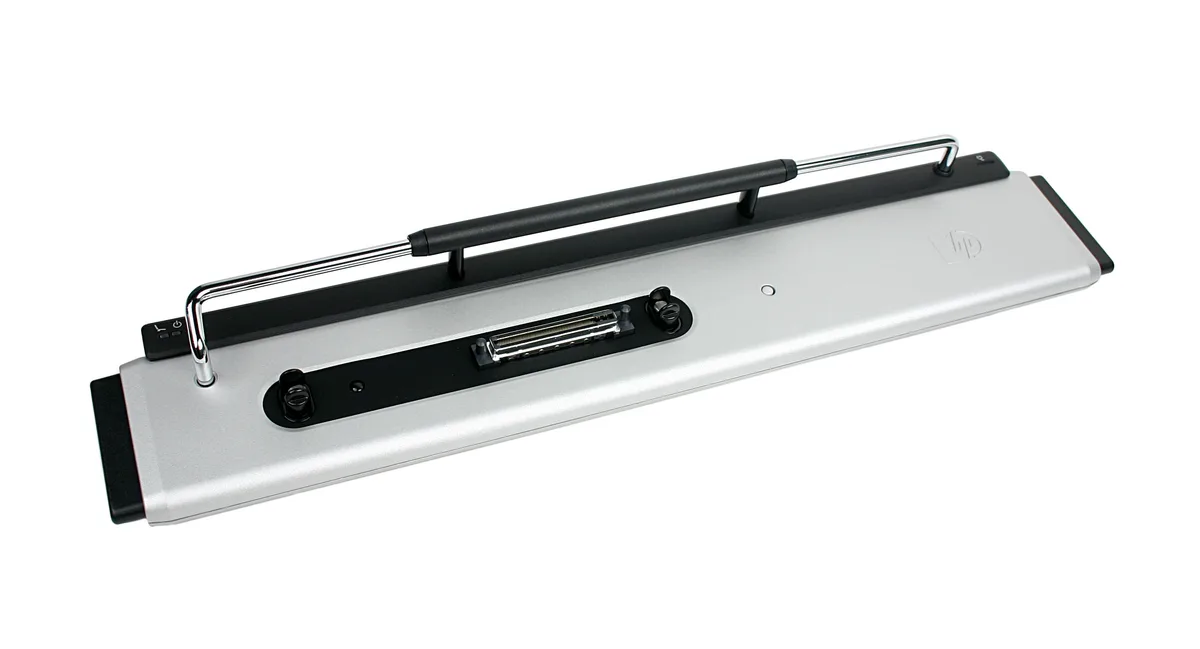

Rectangular silver docking station with front audio jacks and rear port array

HP

HP DC367B#ABA 1.2 Basic Port Replicator docking station 90W AC adapter

SKU CH-WXQW-BRQSR MPN DC367B#ABA

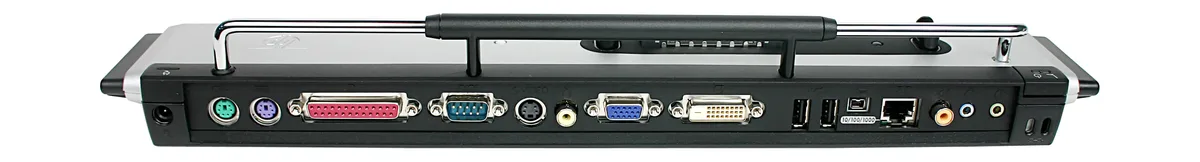

Adds DVI, VGA, composite, S-video, serial, parallel, FireWire, PS/2, dual USB, audio, SPDIF and RJ-45 pass-through to compatible HP notebooks, powered by a 90W adapter

  • CompatibilityCompaq Evo n620c Notebook PC HP Compaq nc4000 Notebook PC HP
  • Ports Spec1 x audio - line-in - mini-phone stereo 3.5 mm 1 x audio - l
  • FeaturesThe Port Replicator incorporates NIC pass though so the netw
  • Dimension16.2" x 3" x 1.1"
  • Weight1.5 lbs.
  • Connect multiple displays with DVI and VGA outputs
  • Expand legacy peripherals via serial, parallel and PS/2 ports

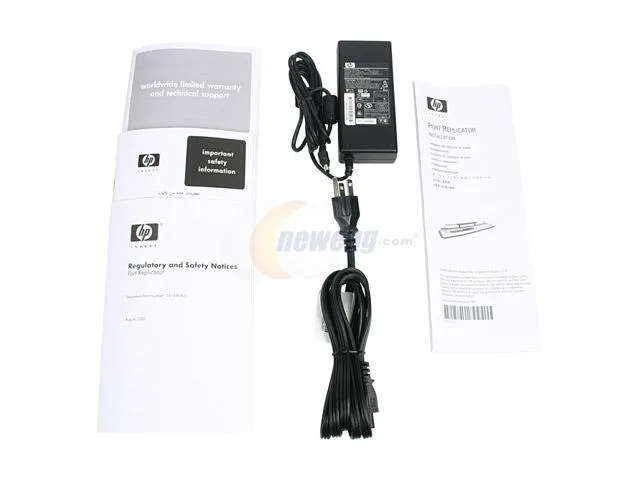

  • Charge the notebook through the included 90W AC adapter
  • Add wired networking using the notebook's own NIC
  • Compact 16.2 x 3 x 1.1 inch footprint saves desk space

Docking station for legacy HP notebooks

The HP DC367B#ABA Basic Port Replicator expands connectivity for specific Compaq Evo and HP Compaq notebooks. It provides video, audio, network and legacy ports through a single docking connector. A 90W AC adapter is included to power the dock and charge the notebook battery. The unit measures 16.2" x 3" x 1.1" and weighs 1.5 lbs.

Suits owners of listed models needing legacy I/O

This replicator suits users of compatible HP Compaq nc, nx, nw and Evo n620c notebooks who require VGA, DVI, S-Video, composite, serial, parallel, PS/2, FireWire or SPDIF connections. It is not for owners of later HP laptops that use USB-C or proprietary slim dock connectors. Buyers who need more than two USB ports or modern display interfaces should look elsewhere.

Docking connector limits compatibility

The proprietary docking interface fits only the notebook models listed in the specifications. No other HP or Compaq systems will connect mechanically or electrically. Verify the exact model number before purchase.

Highlights

  • Connect multiple displays with DVI and VGA outputs
  • Expand legacy peripherals via serial, parallel and PS/2 ports
  • Charge the notebook through the included 90W AC adapter
  • Add wired networking using the notebook's own NIC
  • Compact 16.2 x 3 x 1.1 inch footprint saves desk space

Specifications

BrandHP
ModelDC367B#ABA
CompatibilityCompaq Evo n620c Notebook PC
HP Compaq nc4000 Notebook PC
HP Compaq nc4010 Notebook PC
HP Compaq nc6000 Notebook PC
HP Compaq nc8000 Notebook PC
HP Compaq nw8000 Mobile Workstation
HP Compaq nx5000 Notebook PC
HP Compaq nx7010 Notebook PC
Ports Spec1 x audio - line-in - mini-phone stereo 3.5 mm
1 x audio - line-out - mini-phone stereo 3.5 mm
1 x audio - SPDIF output
1 x display / video - S-video output - 4 pin mini-DIN
1 x display / video - composite video output - RCA
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)
2 x Hi-Speed USB - 4 pin USB Type A
1 x IEEE 1394 (FireWire)
1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
1 x display / video - DVI-Digital - 24 pin digital DVI
1 x display / video - VGA - 15 pin HD D-Sub (HD
FeaturesThe Port Replicator incorporates NIC pass though so the network card of the notebook provides the networking capabilities. The system main battery can be charged when connected to the Port Replicator if the AC Adapter provided with the Port Replicator is plugged in. The Port Replicator has a security slot that incorporates two levels of security. One slot allows the Port Replicator to be secured to a stationary object. The second slot locks the Port Replicator and the notebook to a stationary object. This security feature works only in conjunction with an optional security cable lock
Dimension16.2" x 3" x 1.1"
Weight1.5 lbs.
Shipping weight1.36 kg
Package size432 × 76 × 51 mm

Questions about this item

Which version of the HP DC367B#ABA port replicator should I choose?

There is a single 1.2 Basic Port Replicator model supplied with a 90W AC adapter.

What does the 90W AC adapter mean for daily use?

The 90W adapter powers the dock and charges the notebook system battery while connected.

What does the IEEE 1394 and Hi-Speed USB interface cap in practice?

One IEEE 1394 FireWire port and two Hi-Speed USB Type-A ports are provided for peripherals.
