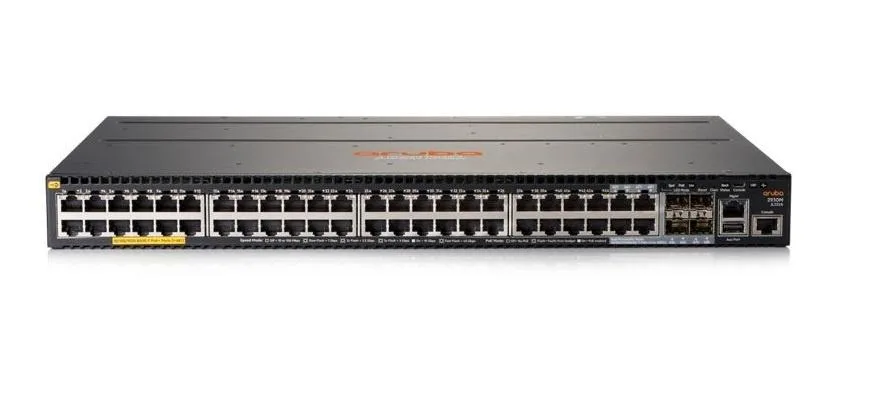

Silver rack-mount network switch with 48 Ethernet ports and one expansion slot

HP

HP Aruba 2930F JL557A 48-Port 1GbE Class 4 PoE Switch

SKU CH-00H2-8MFTZ

A 48-port Gigabit switch with 336 Gbps switching capacity, 250 Mpps throughput and 740 W PoE+ for rack-mount deployments

  • Dimensions17.42 x 12.50 x 1.73 inches
  • Weight10.36 lb
  • FeaturesPart Number: HP JL557A Ports: 48 x Gigabit Ethernet Ports Mo
  • 48 Gigabit ports connect every desktop and device
  • 740 W Class 4 PoE+ powers phones, cameras and APs without extra adapters
  • 336 Gbps switching capacity keeps traffic flowing at line rate
  • 250 Mpps throughput handles bursty workloads without dropping packets
  • Single module slot adds uplink flexibility for future growth

48-port Gigabit PoE+ access switch

The HP Aruba 2930F JL557A provides 48 Gigabit Ethernet ports with Class 4 PoE+ support and a single module slot for uplink expansion. It delivers a switching capacity of 336 Gbps and a forwarding rate of 250 Mpps in a 1U rack-mount chassis weighing 10.36 lb. The switch runs Layer 3 firmware with RIP and OSPF support and requires no separate software licensing.

Suited for wired digital workplaces needing PoE+

This switch fits enterprise edge, SMB and branch offices that power access points, cameras or phones over up to 740 W of PoE+ budget and want cloud or on-premise management via Aruba Central, AirWave or ClearPass. It is not for buyers who need higher port density than 48 ports, 25 GbE or 40 GbE uplinks, or a deeper feature set such as EVPN-VXLAN or MPLS.

One module slot enables flexible uplink choices

The single expansion slot accepts compatible 1 GbE or 10 GbE uplink modules so you can tailor uplinks to the site without replacing the switch. Virtual Switching Framework lets up to four chassis stack logically for simplified control-plane management. Zero Touch Provisioning and Aruba Central cloud onboarding reduce initial configuration effort.

Highlights

  • 48 Gigabit ports connect every desktop and device
  • 740 W Class 4 PoE+ powers phones, cameras and APs without extra adapters
  • 336 Gbps switching capacity keeps traffic flowing at line rate
  • 250 Mpps throughput handles bursty workloads without dropping packets
  • Single module slot adds uplink flexibility for future growth

Specifications

BrandHP
ModelHP JL557A
Part NumberHP JL557A
Dimensions17.42 x 12.50 x 1.73 inches
Weight10.36 lb
FeaturesPart Number: HP JL557A
Ports: 48 x Gigabit Ethernet Ports
Module Slot: 1 x Module Slot for expansion
Switching Capacity: 336 Gbps
Throughput: 250 Mpps (Million Packets Per Second)
Mounting Type: Rack Mount
Dimensions: 17.42 x 12.50 x 1.73 inches
Weight: 10.36 lb
Operating Voltage: 100-240 Volts

Questions about this item

What uplink module do I need to add 10GbE uplinks to the single module slot?

Insert a compatible Aruba 2930F uplink module into the single module slot to provide 1GbE or 10GbE uplinks as required.

Does the 740 W PoE+ budget cover all 48 ports at Class 4 simultaneously?

The 740 W PoE+ budget supports up to 48 Class 4 PoE ports; actual simultaneous ports depend on each device's power draw.

How do I confirm the switch is forwarding at the rated 250 Mpps throughput after setup?

Monitor the forwarding rate via Aruba Central, AirWave, or the CLI; sustained traffic should approach 250 Mpps under load.
