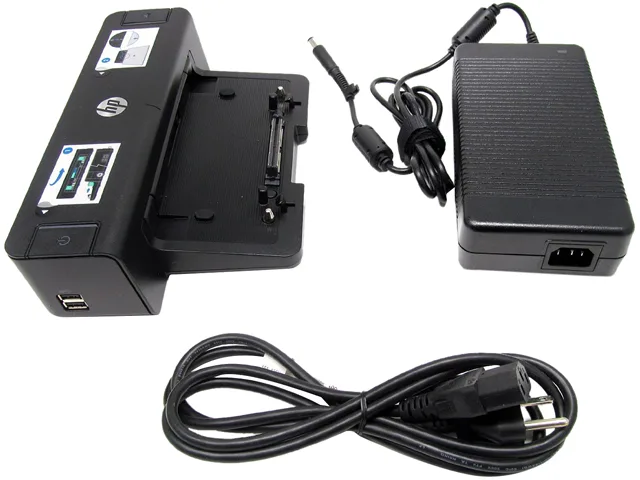

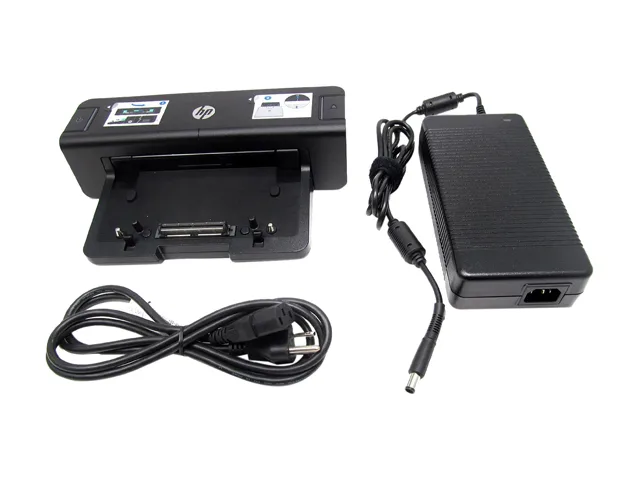

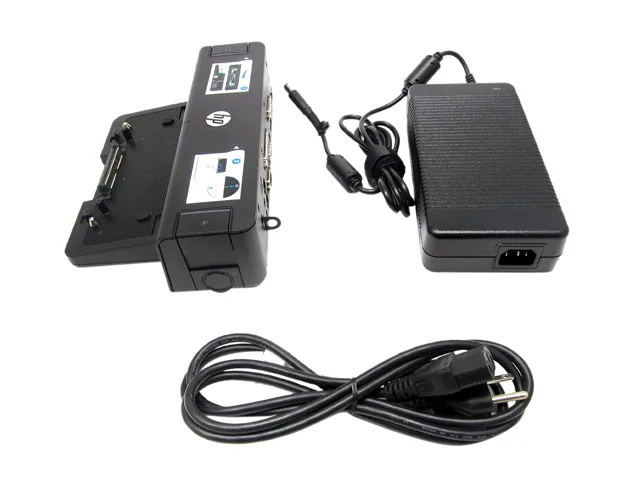

HP A7E34AA#ABA 230W Docking Station
Adds four USB 3.0 ports, DisplayPort 1.2, DVI-D, VGA, RJ-45, serial, parallel, PS/2 and audio to compatible HP notebooks while charging them with 230 W power
- ColorBlack
- CompatibilityHP 6360t Mobile Thin Client HP EliteBook 2170p Notebook PC 2
- Ports Spec1 x Mouse connector 1 x Parallel port 1 x DVI-D 4 x USB 3.0
- Dimension10.24" W x 6.44" D x 2.60" H
- Weight2.36 lbs.
- FeaturesDesktop convenience with full port replication capability in
- Charges notebook while docked using 230W power supply
- Four USB 3.0 ports include three Always-On for peripherals
- DisplayPort 1.2 and DVI-D plus VGA for multi-display setups
- Full port replication adds RJ-45, serial, parallel and audio in compact 10.24" x 6.44" footprint
- Compatible with HP EliteBook and Mobile Workstation models including 2170p, 2560p, 8440p, 8460p, 8470p, 8460w, 8470w, 8560w and 6360t
HP 230W Docking Station for EliteBook
The HP A7E34AA#ABA 230W Docking Station provides full port replication for compatible HP business notebooks and mobile workstations. It delivers desktop convenience in a space-saving black chassis while charging the connected notebook. Supported systems include EliteBook 8460p, 8470p, 8440p, 2170p, 2560p and mobile workstations 8460w, 8470w, 8560w plus the 6360t Mobile Thin Client.
Upgrade from basic port replicators
This dock replaces simpler replicators that lack power delivery or legacy I/O. The jump is worth it when you need simultaneous DVI-D, VGA and DisplayPort 1.2 video outputs alongside four USB 3.0 ports, serial, parallel, PS/2 and RJ-45 connections. It is not for users who only require a single modern video output and a few USB ports without notebook charging.
Simple mechanical docking
The notebook slides onto the connector for instant installation without software drivers. What usually goes wrong is forcing the alignment on worn docking rails or forgetting to seat the 230W power brick before connecting peripherals. The optional cable lock secures both dock and notebook, while the monitor stand port adds a display riser without extra desk hardware.
Highlights
- Charges notebook while docked using 230W power supply
- Four USB 3.0 ports include three Always-On for peripherals
- DisplayPort 1.2 and DVI-D plus VGA for multi-display setups
- Full port replication adds RJ-45, serial, parallel and audio in compact 10.24" x 6.44" footprint
- Compatible with HP EliteBook and Mobile Workstation models including 2170p, 2560p, 8440p, 8460p, 8470p, 8460w, 8470w, 8560w and 6360t
Specifications
| Brand | HP |
|---|---|
| Model | A7E34AA#ABA |
| Color | Black |
| Compatibility | HP 6360t Mobile Thin Client HP EliteBook 2170p Notebook PC 2560p Notebook PC (ENERGY STAR) 8460w Mobile Workstation 8470w Mobile Workstation 8440p Notebook PC 8460p Notebook PC 8470p Notebook PC 8560w Mobile Workstation 8570w Mobile Workstation 8560p Notebook PC 8560p Notebook PC 8570p Notebook PC 8760w Mobile Workstation 8770w Mobile Workstation 8740w Mobile Workstation HP ProBook 6360b Notebook PC 6440b Notebook PC 6460b Notebook PC 6465b Notebook PC 6470b Notebook PC 6475b Notebook PC 6560b Notebook PC 6565b Notebook PC 6570b Notebook PC |

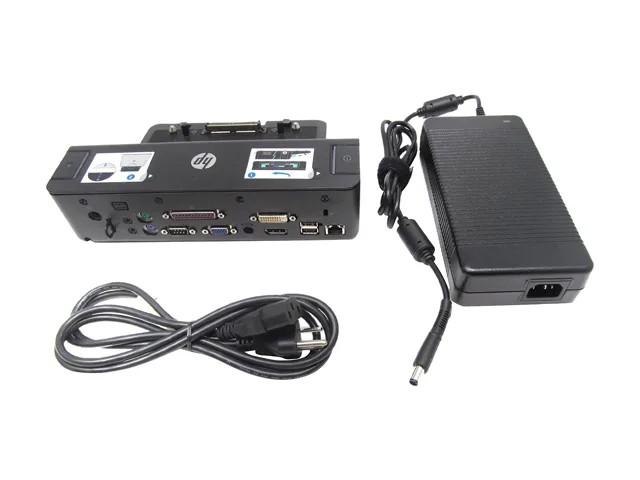

| Ports Spec | 1 x Mouse connector 1 x Parallel port 1 x DVI-D 4 x USB 3.0 ports (3 Always-On, 1 x powered) 1 x RJ-45 (network) jack 1 x DisplayPort connector 1 x VGA port 1 x Serial port 1 x Keyboard connector 1 x Line-in jack 1 x Headphone jack 1 x Monitor stand port |
| Dimension | 10.24" W x 6.44" D x 2.60" H |
| Weight | 2.36 lbs. |
| Features | Desktop convenience with full port replication capability in a space saving design. Conveniently charges the notebook while it is in the docking station. Four USB 3.0 ports; Support for DisplayPort 1.2. Optional integrated HP Docking Station Cable Lock for securing the dock and notebook with one lock. A monitor stand port allows you to add a monitor stand and external display for more comfortable viewing. |
| Shipping weight | 3.27 kg |
| Package size | 325 × 226 × 160 mm |
Questions about this item
What desk space does the 10.24" W x 6.44" D footprint need?
The dock measures 10.24 inches wide by 6.44 inches deep and stands 2.60 inches high, so allow that rectangle plus cable clearance at the rear.
How do I seat the EliteBook 8470p correctly on the docking connector?
Align the notebook's bottom docking port with the station's connector, press down firmly until it clicks, then verify the charging LED lights.
When should I replace the 230W power adapter?
Replace the adapter if the notebook stops charging while docked, the LED stays off, or the brick becomes unusually hot or noisy.
