HP A7E32UT#ABA 90W Docking Station
A 90 W docking station with 16 ports including four USB 3.0, DisplayPort 1.2, DVI-D, VGA, Ethernet and legacy connectors for compatible HP EliteBook and ProBook notebooks
- ColorBlack
- CompatibilityHP EliteBook Notebook PC's 2170p 8460p 8470p 8560p 8570p HP
- Ports Spec1 x Mouse connector 1 x Parallel port 1 x DVI-D 4 x USB 3.0
- Dimension10.24" x 6.44" x 2.6"
- Weight2.36 lbs.
- FeaturesDesktop convenience with full port replication capability in
- Charge notebook while docked with 90 W power delivery

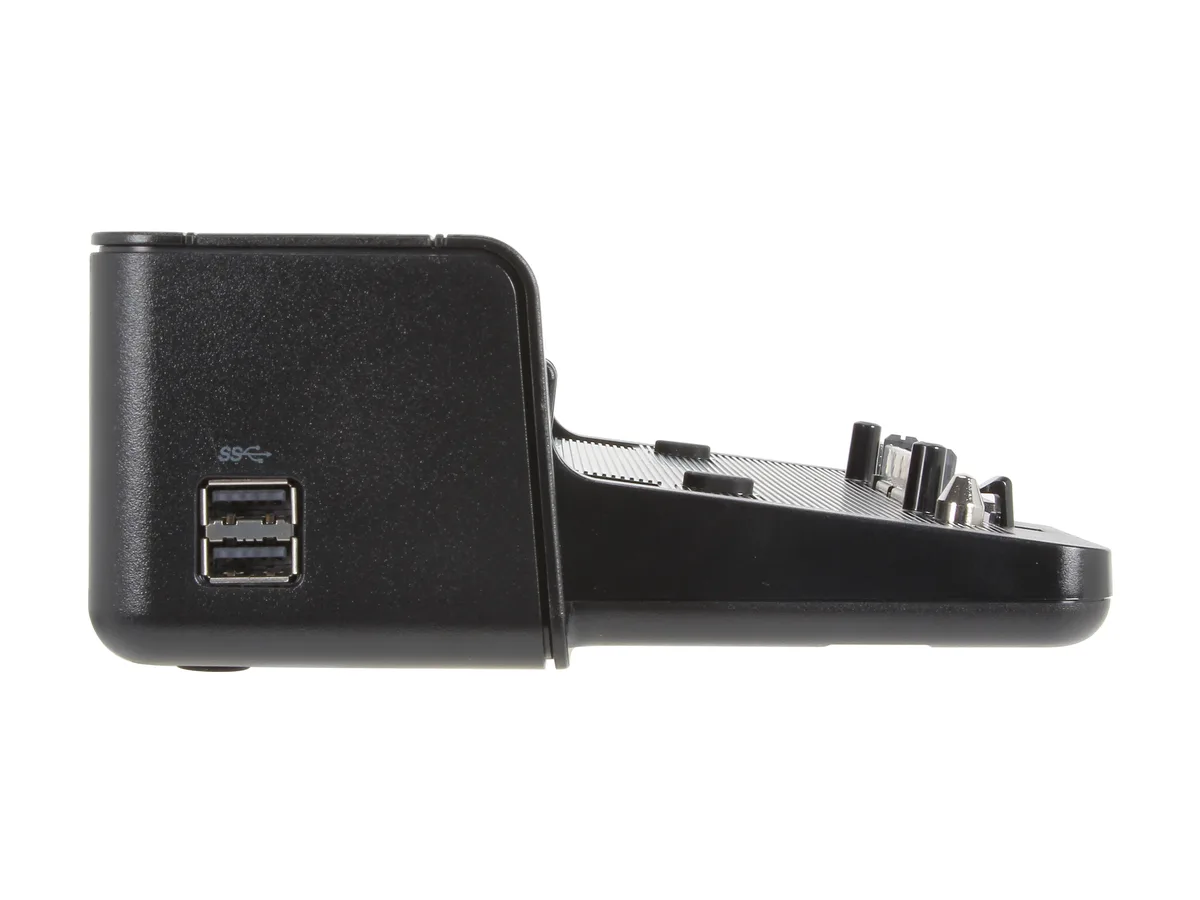

- Connect four USB 3.0 devices including three always-on ports
- Drive external displays via DisplayPort 1.2, DVI-D and VGA
- Wired network access through 10/100/1000 Mbps RJ-45 jack
- Compact 10.24 x 6.44 x 2.6 inch design fits tight desk space
HP 90W Docking Station 2012
The HP A7E32UT#ABA is a 90 watt docking station built for HP EliteBook and ProBook notebooks including the 2170p, 8460p, 8470p, 8560p, 8570p, 8460w, 8470w, 6360b, 6460b, 6465b, 6470b, 6475b, 6560b, 6565b and 6570b models. It provides desktop convenience with full port replication in a space saving black design.
Port replication under sustained use

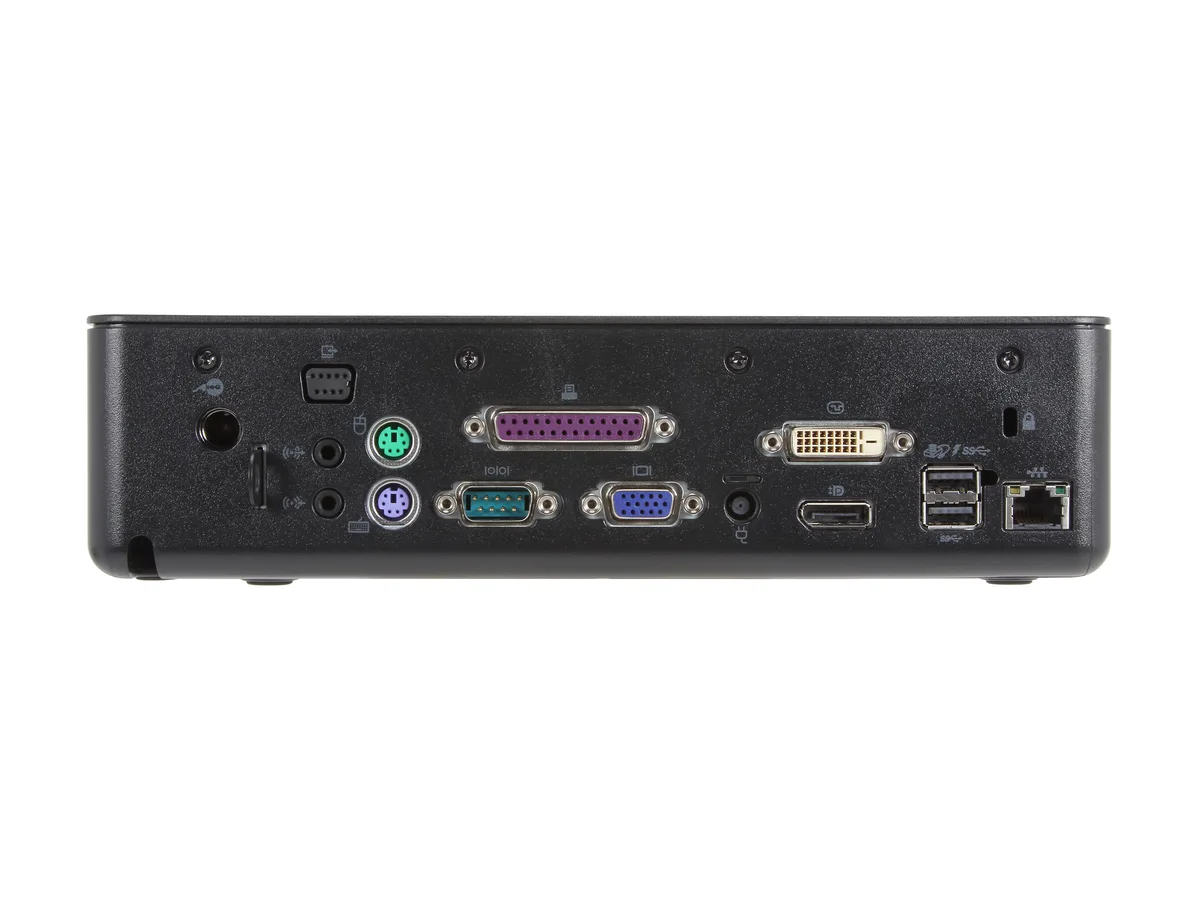

The station delivers 90 watts to charge the notebook continuously while all sixteen ports remain active including four USB 3.0 ports with three always on and one powered. A single DisplayPort 1.2 connector, DVI-D, VGA and a 10/100/1000 Mbps RJ45 jack maintain video and network links without interruption. Legacy PS/2 keyboard and mouse connectors, a parallel port and a serial port stay live for older peripherals.
Upgrade from basic port replicators
This unit replaces simpler replicators that lack charging power or the full complement of video outputs and legacy ports. The jump is worth it when a fixed workstation must drive multiple displays, wired networking and a mix of USB 3.0 and legacy devices while keeping the notebook fully charged.
Highlights
- Charge notebook while docked with 90 W power delivery
- Connect four USB 3.0 devices including three always-on ports
- Drive external displays via DisplayPort 1.2, DVI-D and VGA
- Wired network access through 10/100/1000 Mbps RJ-45 jack
- Compact 10.24 x 6.44 x 2.6 inch design fits tight desk space
Specifications
| Brand | HP |
|---|---|
| Model | A7E32UT#ABA |
| Color | Black |
| Compatibility | HP EliteBook Notebook PC's 2170p 8460p 8470p 8560p 8570p HP EliteBook Mobile Workstations 8460w 8470w HP ProBook Notebook PC's 6360b 6460b 6465b 6470b 6475b 6560b 6565b 6570b |
| Ports Spec | 1 x Mouse connector 1 x Parallel port 1 x DVI-D 4 x USB 3.0 ports (3 Always-On, 1 powered) 1 x RJ-45 (network) jack 1 x DisplayPort connector 1 x VGA port; 1 Serial port 1 x Keyboard connector 1 x Line-in jack 1 x Headphone jack 1 x Monitor stand port |
| Dimension | 10.24" x 6.44" x 2.6" |
| Weight | 2.36 lbs. |
| Features | Desktop convenience with full port replication capability in a space saving design. Conveniently charges the notebook while it is in the docking station. Four USB 3.0 ports; Support for DisplayPort 1.2. Optional integrated HP Docking Station Cable Lock for securing the dock and notebook with one lock. A monitor stand port allows you to add a monitor stand and external display for more comfortable viewing. Rated Voltage: 100 to 240 V; Rated Current: 2.5A rms; Line Frequency: 50 - 60 Hz |
| Shipping weight | 2.72 kg |
| Package size | 328 × 234 × 157 mm |
Questions about this item
How much heat does the 90W docking station produce when running all day?
The dock operates between 50 and 95 °F, and its 90W power supply handles continuous use without extra cooling.
Which notebook must I already own for the A7E32UT#ABA to work?
It supports HP EliteBook 2170p, 8460p, 8470p, 8560p, 8570p, EliteBook 8460w, 8470w, and ProBook 6360b, 6460b, 6465b, 6470b, 6475b, 6560b, 6565b, 6570b.
Will my older PS/2 keyboard and mouse work through the dock's dedicated ports?
Yes, the station provides one PS/2 keyboard connector and one PS/2 mouse connector for legacy input devices.
