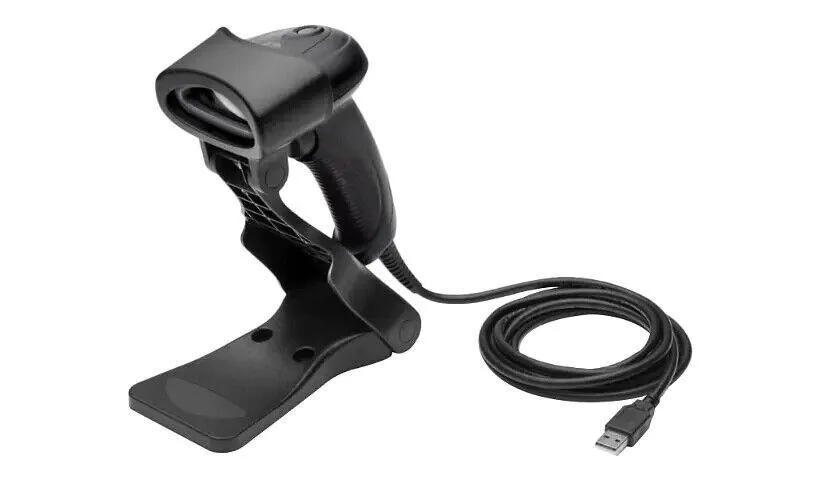

Black handheld USB barcode scanner with trigger and cable

HP

HP 4AK34AA 2D Handheld USB Barcode Scanner

SKU CH-KS8Y-GRW88 MPN 4AK34AA

Handheld 2D USB barcode scanner reads 1D and 2D codes from 10 mm to 250 mm with ±45° pitch and ±180° roll tolerance

  • Form FactorHandheld
  • ConnectivityCorded
  • Scan Engine2D
  • Interfaces SupportedUSB
  • Light SourceWhite LED
  • Resolution>= 4 mils
  • Scans 1D and 2D codes including QR and Data Matrix
  • Reads barcodes as small as 4 mils for high-density labels
  • USB corded connection works with Windows 7 through Windows 10 IoT
  • ±45° pitch and ±180° roll tolerance speeds up angled scans
  • Lightweight 0.26 lb handheld design reduces fatigue during long shifts

Handheld 2D USB scanner

The HP 4AK34AA is a corded handheld barcode scanner that connects through a single USB port. It reads both one-dimensional and two-dimensional symbols using a 2D imaging engine with a white LED light source. The unit weighs 0.26 lb and measures 2.70" x 5.70" x 3.97".

Retail, logistics and light industrial use

This scanner suits checkout counters, stockrooms and parcel processing where 1D codes such as EAN-13 and UPC-A and 2D codes such as QR Code and Data Matrix are scanned at arm's length. It is not for wireless mobility, presentation-style hands-free mounting or long-range scanning beyond the stated depth of field.

2D imaging engine with ≥ 4 mil resolution

The scan engine resolves symbols down to 4 mils and captures 1D, 2D and postal symbologies including PDF417, Micro QR, Aztec and Maxicode. Pitch tolerance reaches ±45 degree and roll tolerance covers ±180 degree, while the minimum print contrast ratio is 25%.

Highlights

  • Scans 1D and 2D codes including QR and Data Matrix
  • Reads barcodes as small as 4 mils for high-density labels
  • USB corded connection works with Windows 7 through Windows 10 IoT
  • ±45° pitch and ±180° roll tolerance speeds up angled scans
  • Lightweight 0.26 lb handheld design reduces fatigue during long shifts

Specifications

BrandHP
Model4AK34AA
Form FactorHandheld
ConnectivityCorded
Scan Engine2D
Interfaces SupportedUSB
Light SourceWhite LED
Resolution>= 4 mils
Depth of Scan FieldCode 39:
50mm-125mm (1.9in-4.9in) (5 mils)
35mm-250mm (1.4in-9.8in) (10 mils)
EAN-13:
60mm-230mm (2.4in-9.1in) (13 mil)
PDF417:
55mm-75mm (2.2in-2.9in) (6.7 mils)
20mm-145mm (.78in-5.7in) (10 mil)
QR Code:
25mm-80mm (.98in-3.1in) (10 mil)
10mm-135mm (.4in-5.3in) (15 mil)
Datamatrix:
35mm-75mm (1.4in-2.9in) (10 mil)
15mm-115mm (.59in-4.5in) (15 mil)
Pitch±45 degree
Roll±180 degree
Print Contrast Ratio (Minimum)25%
Decoding Capability1D decode symbologies:
EAN-8
EAN-13
UPC-E
UPC-A
Code 128
UCC/EAN 128
I2Of5
ITF14
ITF6
Matrix 25
CodaBar
Code 39
Code 93
ISSN
ISBN
Industrial 25
Standard 25
Plessey
Code 11
MSI Plessey
UCC/EAN Composite
GS1 Databar
China Post 25
Code 49
Code 16K
2D decode symbologies:
PDF417
QR Code
Micro QR
Data Matrix
Aztec
Maxicode
Postal decode symbologies:
Chinese Sensible Code
GM Code
MicroPDF417
Code One
USPS Postnet
Royal Mail
KIX Post
Austrailian Postal
CurrentStandby Current: 58.6mA
Operating: 165.8mA (typical), 170.2mA (max)
ColorBlack
Dimensions2.70" x 5.70" x 3.97"
Weight0.26 lb.
Operating Systems SupportedWindows 10 (32-bit)
Windows 10 (64-bit)
Windows 10 IoT (32-bit)
Windows 10 IoT (64-bit)
Windows 8.1 Professional (32-bit)
Windows 8.1 Professional (64-bit)
Windows Embedded 8.1
Windows 7 Business (64-bit)
Windows Embedded POS Ready 7 (64-bit)
Windows Embedded POS Ready 2009

Questions about this item

What does the 4 mil resolution mean when scanning small barcodes at the counter?

The scanner reads codes as small as 4 mils, so it captures high-density 2D symbols like Data Matrix or QR codes printed on small labels or mobile screens.

How does the USB interface limit cable length and power in daily use?

USB power keeps the scanner running at 165.8 mA typical without an external supply, and the cable stays within standard USB length limits for reliable data transfer.

What physical space and mounting options does the 2.70 x 5.70 x 3.97 inch handheld need?

The 0.26 lb unit fits in one hand and sits in a small cradle or hook; no fixed mounting hardware is required for countertop or mobile workflows.
