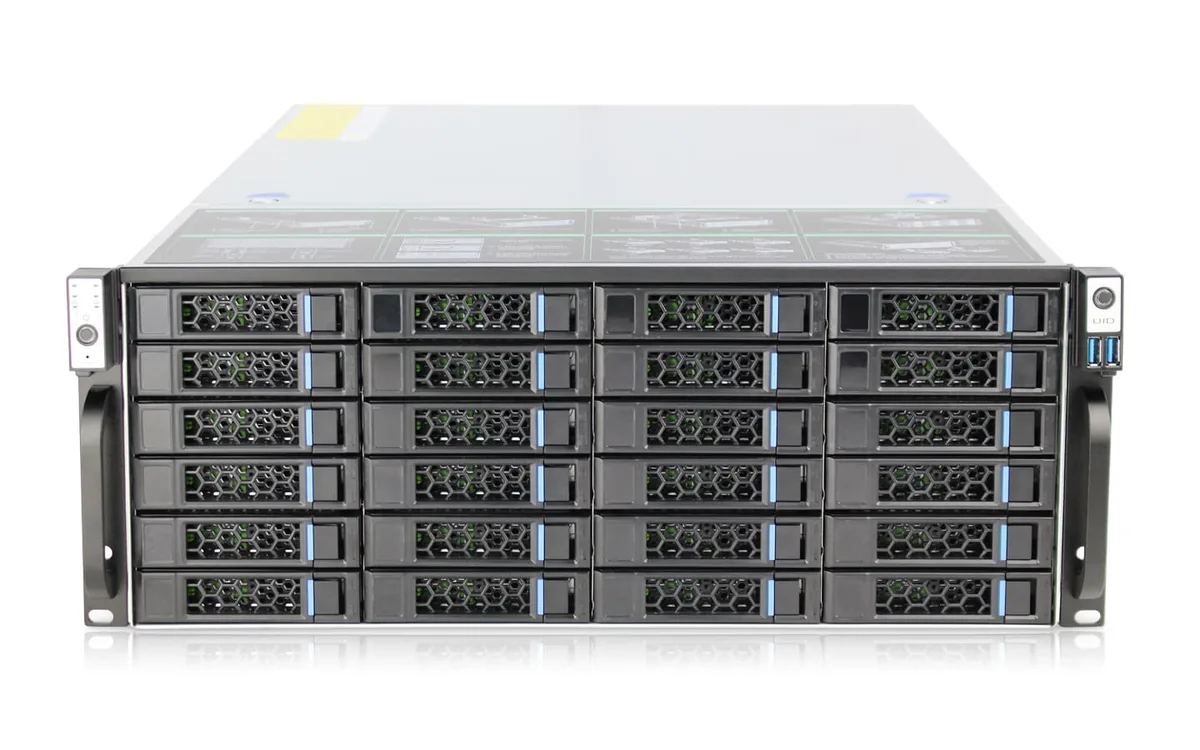

Silver 4U rackmount server chassis with twenty-four front 3.5-inch hot-swap drive bays, three 12038 fans, and front USB ports

HOTCFWQ

HOTCFWQ S465-24 6GB Expander 24-bay 4U server chassis

SKU CH-NYFD-D7J8M

A 4U rackmount chassis holding 24 hot-swap 3.5" SATA or SAS drive bays with a 6Gb/s or 12Gb/s expander backplane and three 12038 ball-bearing fans

  • Chassis TypeRackmount
  • 24 hot-swap 3.5" drive bays for high-density storage
  • 6Gb/s or 12Gb/s expander backplane with temperature monitoring
  • 3 x 12038H ball-bearing fans deliver forced-air cooling
  • Standard 19" 4U rackmount frame built from 1.0mm SGCC steel
  • Supports motherboards up to 12" x 13" with 7 full-height PCIe slots

24-Bay 4U Rackmount Chassis

This 4U rackmount server chassis holds twenty-four 3.5-inch hot-swappable drive bays and supports SAS or SATA drives at 6Gb/s. It is built from 1.0mm SGCC zinc-coated steel and fits a standard 19-inch rack. The unit targets operators building dense storage arrays for cloud storage, big data or security monitoring workloads.

Motherboard and Power Compatibility

Verify that your motherboard measures no larger than 12 by 13 inches to fit the supported form factor. Confirm the backplane variant you require — either 6Gb/s or 12Gb/s MINI SAS or expander backplane — matches your host bus adapter. Ensure your power supply choice aligns with the standard PS2 or redundant PSU form factor supported by the chassis.

Included Cooling and Front I/O

Three 12038H ball-bearing fans ship as standard to provide airflow across the drive bays and expansion area. Two front-accessible USB 2.0 ports are fitted, with an optional USB 3.0 upgrade available. The front panel also includes power and reset switches, power, HDD, NIC, UID and fault LEDs, plus a UID button for rack identification.

Highlights

  • 24 hot-swap 3.5" drive bays for high-density storage
  • 6Gb/s or 12Gb/s expander backplane with temperature monitoring
  • 3 x 12038H ball-bearing fans deliver forced-air cooling
  • Standard 19" 4U rackmount frame built from 1.0mm SGCC steel
  • Supports motherboards up to 12" x 13" with 7 full-height PCIe slots

Specifications

Chassis TypeRackmount

Questions about this item

Does the chassis ship with a motherboard, power supply or drives, or must they be purchased separately?

The unit is an empty 4U rackmount chassis; motherboard, PS2 or redundant power supply and 24 drives are all bought separately.

Which backplane version should I select for 12 Gb/s SAS drives?

Choose the 12Gb/s Expander backplane option; it supports 24 hot-swap 3.5" SAS bays at 12 Gb/s with a temperature-control chipset.

Will a 12" x 13" E-ATX board fit with all 24 drive bays populated?

Yes, the chassis supports motherboards up to 12" x 13" while retaining all 24 hot-swap bays and seven full-height PCIe slots.
