Silver 2U rackmount server chassis with eight front 3.5-inch hot-swap drive bays

HOTCFWQ

HOTCFWQ 2U 8-bay server chassis 12Gb/s SAS NVMe backplane E-ATX

SKU CH-BE3E-J4A88

A 2U rackmount chassis holding eight hot-swap 3.5" drives with 12Gb/s SAS backplane and E-ATX motherboard support

  • Chassis TypeRackmount
  • E-ATX board support up to 12 x 13 inches fits large server motherboards
  • 8 hot-swap 3.5-inch bays accept SATA and SAS drives for dense storage
  • 12Gb/s SAS backplane with temperature chipset enables high-speed NVMe connectivity
  • 3 included 8025 AVC ball-bearing fans plus room for a fourth ensure strong airflow
  • 0mm SGCC zinc-coated steel in a 19-inch 2U frame provides rugged rackmount durability

2U 8-Bay Rackmount Chassis

This 2U rackmount server chassis fits a standard 19-inch rack and measures 437.5mm wide by 650mm deep by 88mm high. It is built from 1.0mm SGCC zinc-coated steel and supports motherboards up to 12 inches by 13 inches. The unit provides seven full-height PCI or PCIe expansion slots for add-in cards.

Suited for high-density storage builds

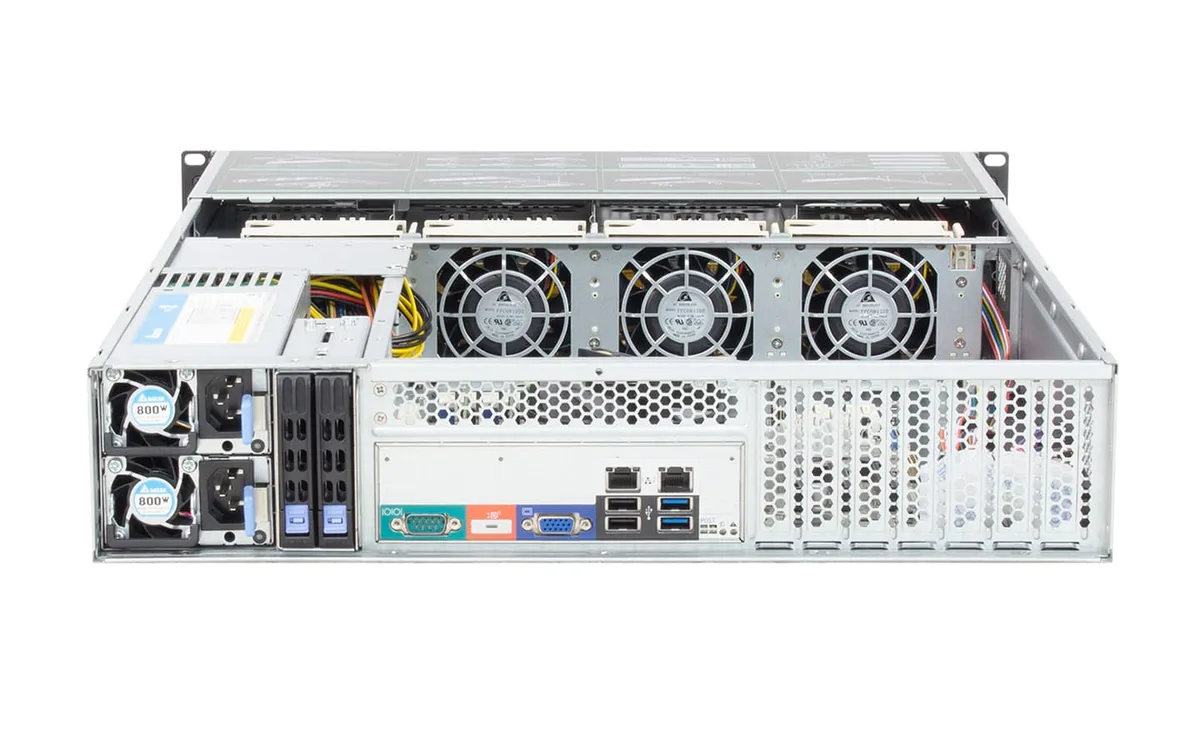

The chassis holds eight hot-swap 3.5-inch drive bays compatible with SATA II, SATA III, SAS II and SAS III drives at 6Gb/s. An optional slim CD-ROM bay can also accept a 2.5-inch SSD or HDD. Cooling is handled by three included 8025 AVC ball-bearing fans, with space for a fourth. Front I/O includes two USB 2.0 ports, with USB 3.0 available as an option.

12Gb/s MINI SAS backplane

A 12Gb/s MINI SAS backplane with a temperature control chipset is fitted, alongside 6Gb/s SATA and 6Gb/s MINI SAS backplanes. This configuration decides whether the chassis can serve NVMe or high-speed SAS storage directly. Power options cover a single 2U standard supply or a redundant power supply. System LEDs and switches provide full front-panel status and control.

Highlights

  • E-ATX board support up to 12 x 13 inches fits large server motherboards
  • 8 hot-swap 3.5-inch bays accept SATA and SAS drives for dense storage
  • 12Gb/s SAS backplane with temperature chipset enables high-speed NVMe connectivity
  • 3 included 8025 AVC ball-bearing fans plus room for a fourth ensure strong airflow
  • 0mm SGCC zinc-coated steel in a 19-inch 2U frame provides rugged rackmount durability

Specifications

Chassis TypeRackmount

Questions about this item

What motherboard size must I already have to fit this 2U chassis?

The chassis supports E-ATX boards up to 12 x 13 inches, so your motherboard must not exceed those dimensions.

Will my existing 6Gb/s SAS drives work with the 12Gb/s MINI SAS backplane?

Yes, the 12Gb/s MINI SAS backplane is backward compatible, so 6Gb/s SAS or SATA drives will operate at their native speed.

Which front-panel LEDs confirm the chassis is running correctly after assembly?

Power LED, HDD LED, dual NIC LEDs, UID LED, overheat/fan-fail LED and power-fail LED all indicate normal operation when lit green.
