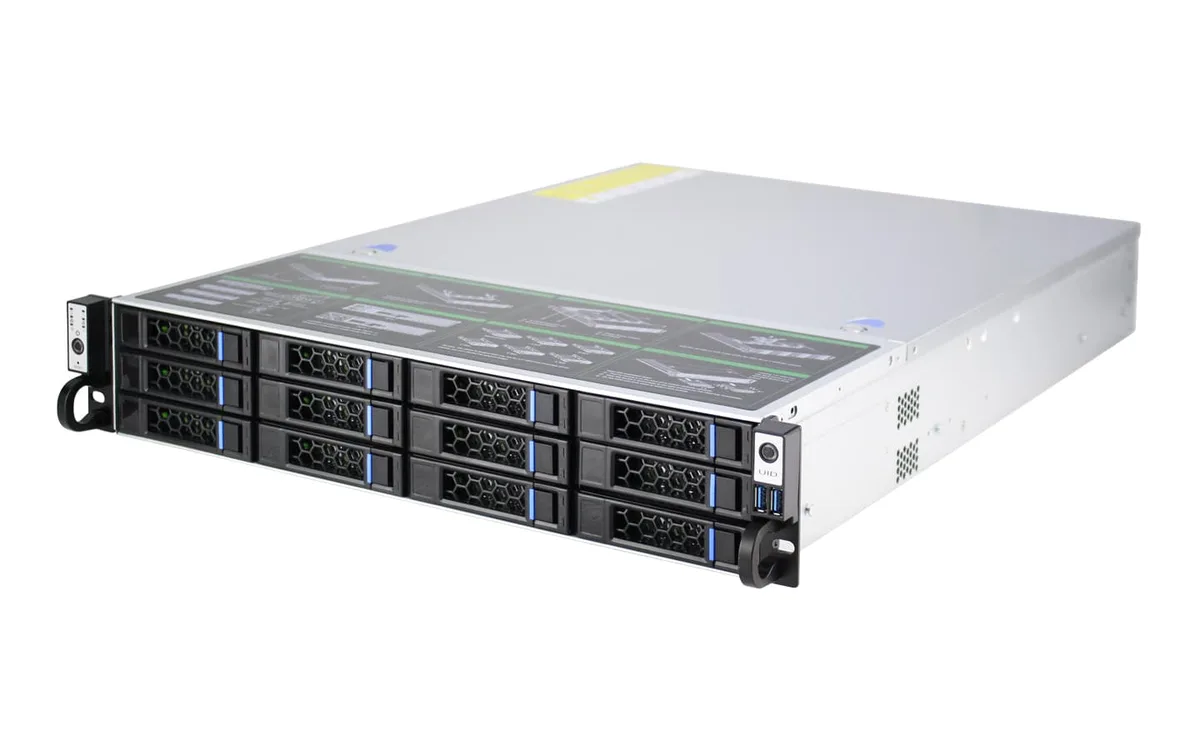

Silver 2U rackmount server chassis with twelve front 3.5-inch hot-swap drive bays

HOTCFWQ

HOTCFWQ 2U 12-Bay 12Gb/s SAS Server Chassis

SKU CH-B39Q-EFRT2

A 2U rackmount chassis with 12 hot-swap 3.5-inch SAS/SATA bays and a 12Gb/s backplane

  • Chassis TypeRackmount
  • 12 hot-swap 3.5" drive bays for high-density storage
  • 12Gb/s MINI SAS backplane with temperature control chipset
  • Standard 19" rackmount fits 437.5mm x 560mm x 88mm space
  • 0mm SGCC zinc-coated steel chassis with 7 full-height expansion slots
  • Three 8038 ball-bearing fans included with room for a fourth

2U 12-Bay SAS Server Chassis

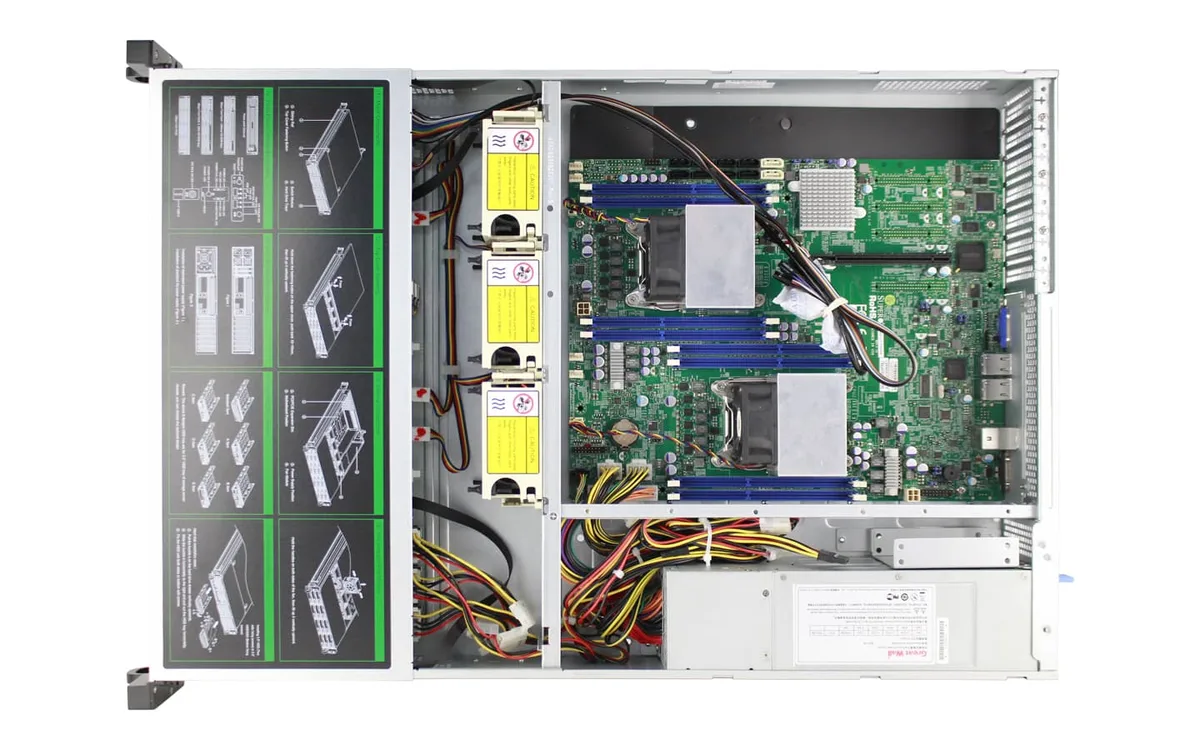

This 2U rackmount chassis holds twelve 3.5-inch hot-swap drive bays and supports SAS or SATA drives. It fits a standard 19-inch rack and is built from 1.0 mm SGCC zinc-coated steel. The unit includes three 8038 ball-bearing fans with an optional fourth fan position. It accepts a motherboard up to 12 by 10.5 inches and provides seven full-height PCIe slots.

12Gb/s Mini SAS Backplane Limits

The backplane operates at 12Gb/s over Mini SAS and includes a temperature control chipset. It also supports 6Gb/s SATA and 6Gb/s Mini SAS modes. Drive bays are rated for SAS and SATA at 6Gb/s, so 12Gb/s SAS drives will run at the backplane speed but individual bay throughput stays at 6Gb/s. Front USB ports are 2.0 with optional 3.0.

Twelve Hot-Swap 3.5-Inch Bays

The defining specification is twelve hot-swap 3.5-inch bays in a 2U height, giving high density for storage workloads such as cloud storage or big data. Buyers needing 2.5-inch drive support or more than twelve bays in 2U cannot use this chassis. The 88 mm height and 560 mm depth must match the rack space available.

Highlights

  • 12 hot-swap 3.5" drive bays for high-density storage
  • 12Gb/s MINI SAS backplane with temperature control chipset
  • Standard 19" rackmount fits 437.5mm x 560mm x 88mm space
  • 0mm SGCC zinc-coated steel chassis with 7 full-height expansion slots
  • Three 8038 ball-bearing fans included with room for a fourth

Specifications

Chassis TypeRackmount

Questions about this item

Should I pick the 6 Gb/s SATA backplane or the 12 Gb/s MINI SAS backplane for my drives?

Choose the 12 Gb/s MINI SAS backplane when you need the full 12 Gb/s SAS link speed; the 6 Gb/s SATA or MINI SAS versions cap each bay at 6 Gb/s.

What does the 12 Gb/s SAS rating deliver once the chassis is populated with drives?

Each of the 12 hot-swap 3.5" bays can run a SAS drive at up to 12 Gb/s, provided the controller and cables also support that speed.

How does the MINI SAS interface limit real-world throughput in this 2U chassis?

The backplane uses MINI SAS connectors, so aggregate bandwidth is bounded by the number of lanes wired to your RAID card or HBA.
