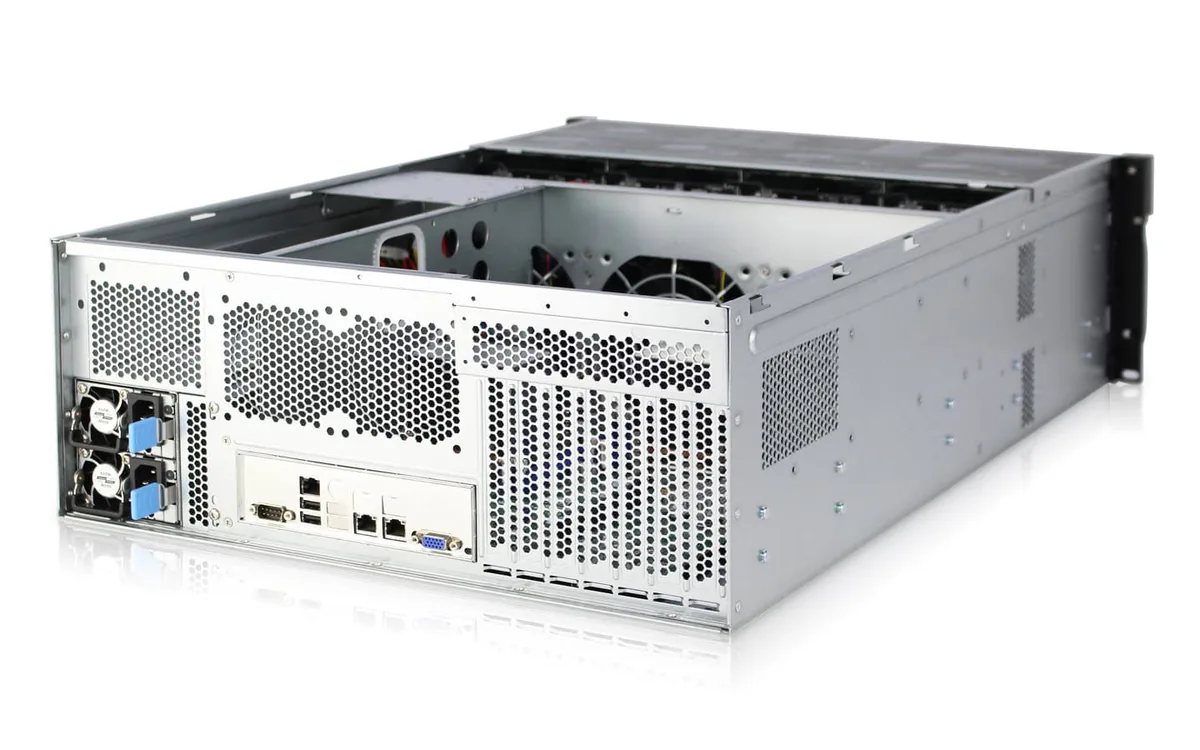

Silver 4U rackmount server chassis with 24 front 3.5-inch hot-swap drive bays and three 12038 fans

HOTCFWQ

HOTCFWQ 24-Bay 4U Rackmount Server Chassis 12Gb/s Expander Backplane

SKU CH-XBGE-PKW4D

A 4U rackmount chassis holding 24 hot-swappable 3.5-inch SAS or SATA drives on a 12Gb/s expander backplane with three 12038 fans and seven full-height PCIe slots

  • Chassis TypeRackmount
  • 24 hot-swap 3.5" bays scale storage to 24 drives
  • 12 Gb/s expander backplane delivers high-throughput SAS and SATA connectivity
  • 4U 19" rackmount frame fits standard datacentre cabinets
  • Three 12038 ball-bearing fans maintain airflow across all drives
  • Seven full-height PCIe slots add controller or networking cards

24-Bay 4U Rackmount Server Chassis

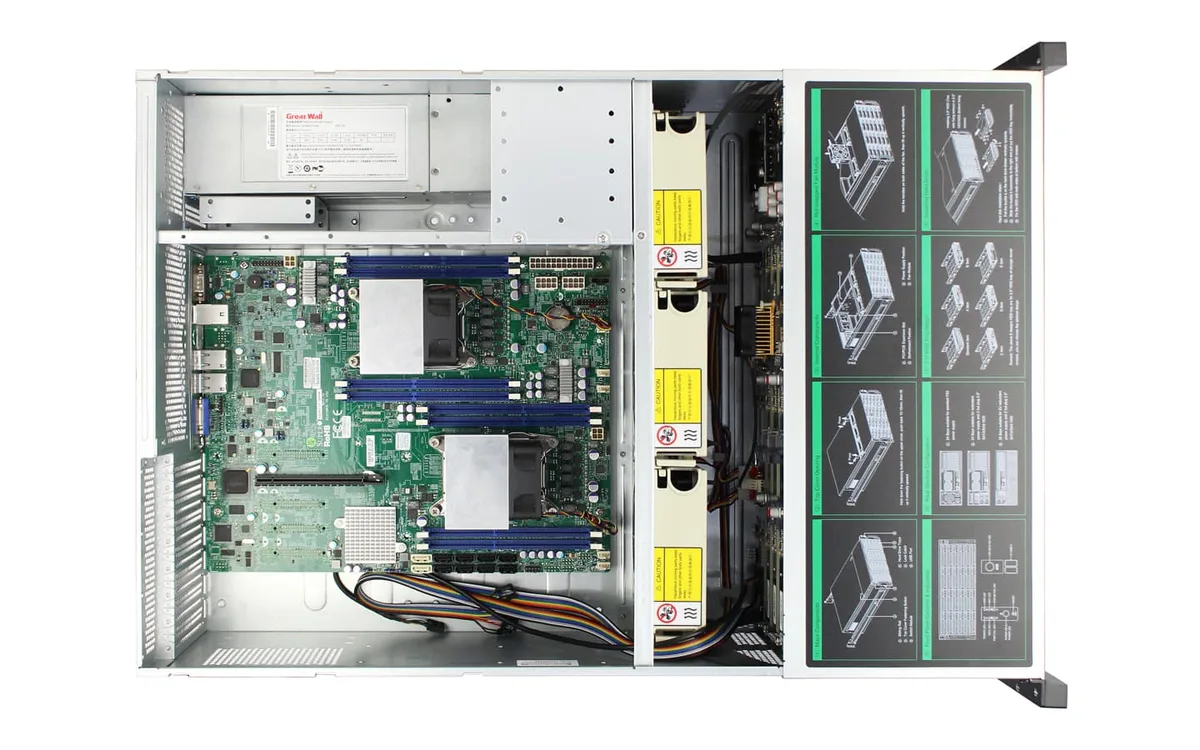

The HOTCFWQ 4U rackmount chassis fits a standard 19-inch rack and provides 24 hot-swappable 3.5-inch drive bays. It accepts SATA II/III or SAS II/III drives operating at 6Gb/s. The 1.0mm SGCC zinc-coated steel construction meets EMC design standards. It is built for dense storage deployments such as cloud storage, big data and security monitoring.

24 Drive Bays with 12Gb/s Expander Backplane

The expander backplane option delivers 12Gb/s Mini SAS connectivity with an onboard temperature control chipset. Twenty-four bays give substantial raw capacity for distributed storage or NAS workloads. The 6Gb/s drive interface limits per-drive throughput, so sustained sequential performance tops out at that rate. Seven full-height PCI/PCIe slots provide room for RAID controllers or networking cards.

Three 12038 Ball-Bearing Fans

Three included 12038H ball-bearing fans move air across the drive bays and motherboard area. The chassis accepts a standard PS2 power supply or a redundant power supply for higher availability. Two front-accessible USB 2.0 ports are standard, with USB 3.0 offered as an option. System LEDs and switches cover power, reset, drive activity, network, UID and fault indication.

Highlights

  • 24 hot-swap 3.5" bays scale storage to 24 drives
  • 12 Gb/s expander backplane delivers high-throughput SAS and SATA connectivity
  • 4U 19" rackmount frame fits standard datacentre cabinets
  • Three 12038 ball-bearing fans maintain airflow across all drives
  • Seven full-height PCIe slots add controller or networking cards

Specifications

Chassis TypeRackmount

Questions about this item

Will my existing 6 Gb/s SAS drives work in the 12 Gb/s expander backplane?

Yes, the 24 hot-swappable bays accept SAS II or III drives at 6 Gb/s and the expander backplane negotiates the link speed automatically.

Which front-panel LEDs confirm the backplane and fans are operating normally?

The Power LED, HDD LED and OH/FAN Fail LED show power, drive activity and any fan or over-temperature fault.

Does the chassis ship with a motherboard, PSU or drive trays, or must I source them separately?

The unit includes the 4U chassis, 12 Gb/s expander backplane and three 12038H fans; motherboard, PS2 or redundant PSU and drives are not supplied.
