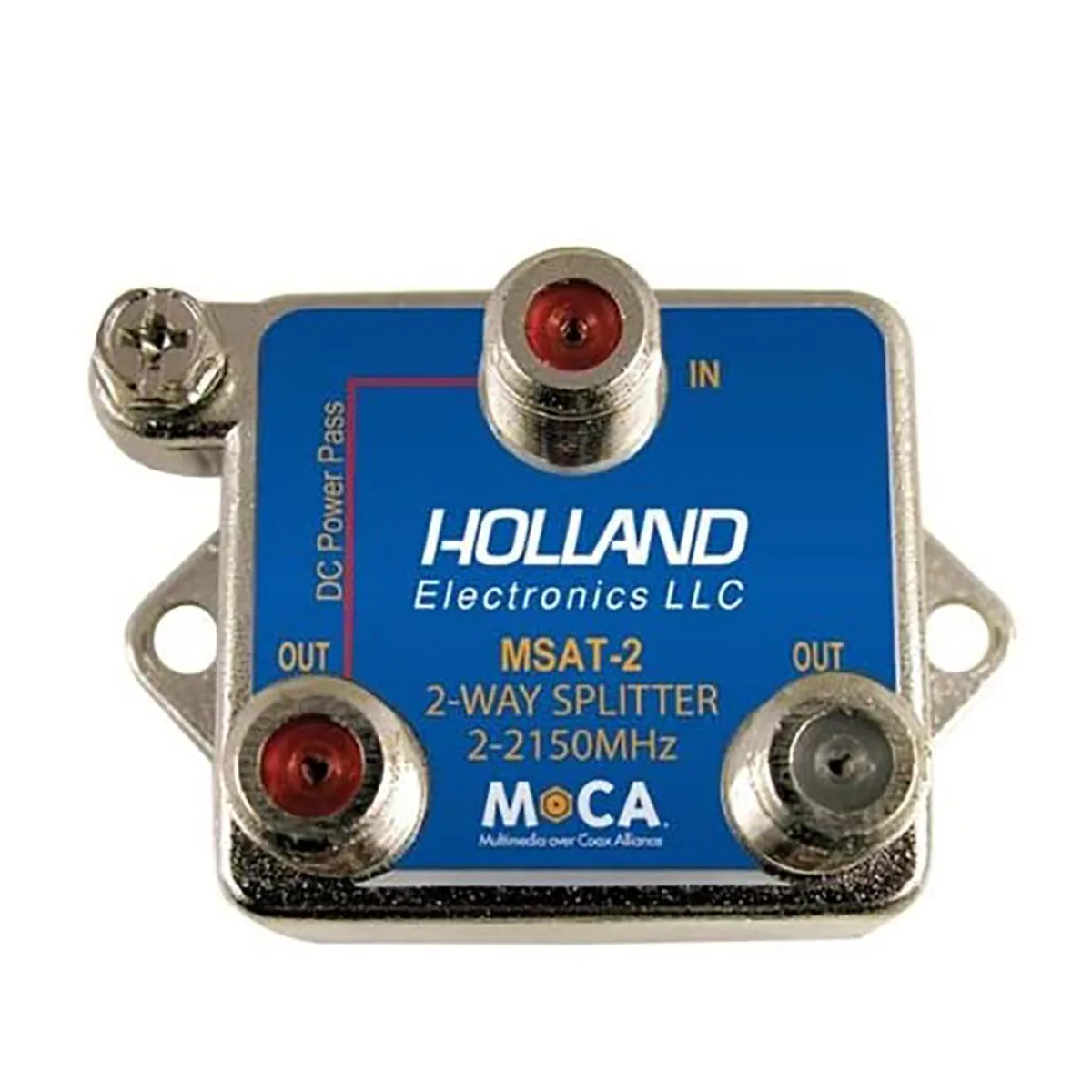

Small metal box with two coaxial ports and a power-passing port, matte finish, sealed for outdoor use

Holland Electronics

Holland Electronics MSAT-2 2-Way MoCA Splitter 2-2150MHz DirecTV Approved

SKU CH-8NMR-R06F9

Splits satellite signals two ways across a 2-2150MHz range with 29v power passing and sealed F-ports for indoor or outdoor use

  • FeaturesUniversal
  • DIRECTV-approved for reliable satellite distribution
  • MoCA-enabled splitter supports whole-home networking
  • 2-2150MHz bandwidth covers full satellite spectrum
  • 29V power-passing port feeds upstream devices
  • Sealed F-ports withstand indoor and outdoor use

DirecTV-Approved MoCA Splitter

The Holland Electronics MSAT-2 is a 2-way coaxial splitter built for DIRECTV single-wire multiswitch systems in commercial MDU installations. It integrates on-board MoCA capabilities developed with the MoCA Alliance. The unit splits SWM outputs to feed up to eight satellite receivers. Sealed F-ports and rugged construction allow indoor or outdoor mounting.

Frequency Range and Port Isolation

The splitter operates across a 2-2150MHz bandwidth, covering the full SWM and MoCA spectrum. Low insertion loss preserves signal strength across both output ports. Port-to-port isolation is kept low to support MoCA networking between connected receivers. A 29v power-passing port ensures the SWM stays powered through the splitter.

Replacing Standard Splitters in SWM Systems

This unit replaces ordinary splitters that block MoCA signals or lack DIRECTV approval. The upgrade is worth it when deploying SWM technology in multi-dwelling units where MoCA networking between receivers is required. It is not for buyers who need more than two output ports or who are not using DIRECTV SWM infrastructure.

Highlights

  • DIRECTV-approved for reliable satellite distribution
  • MoCA-enabled splitter supports whole-home networking
  • 2-2150MHz bandwidth covers full satellite spectrum
  • 29V power-passing port feeds upstream devices
  • Sealed F-ports withstand indoor and outdoor use

Specifications

BrandHolland
ModelMSAT-2
Part NumberMSAT-2
FeaturesUniversal

Questions about this item

How do I choose between the available versions of the MSAT-2 splitter?

The MSAT-2 is offered as a 2-way model with a 29v power-passing port; other way-counts exist in the series but this specific unit splits the signal into two outputs.

What does the 2150MHz rating mean for my DIRECTV setup?

The 2-2150MHz range covers the full DIRECTV SWM and MoCA frequency bands, so the splitter passes all satellite and networking signals without rolling off the high end.

Which standard does the F-port interface support and what limits it in practice?

The sealed F-ports are DIRECTV approved for SWM and MoCA use; insertion loss and port-to-port isolation set the practical limits for signal quality.
