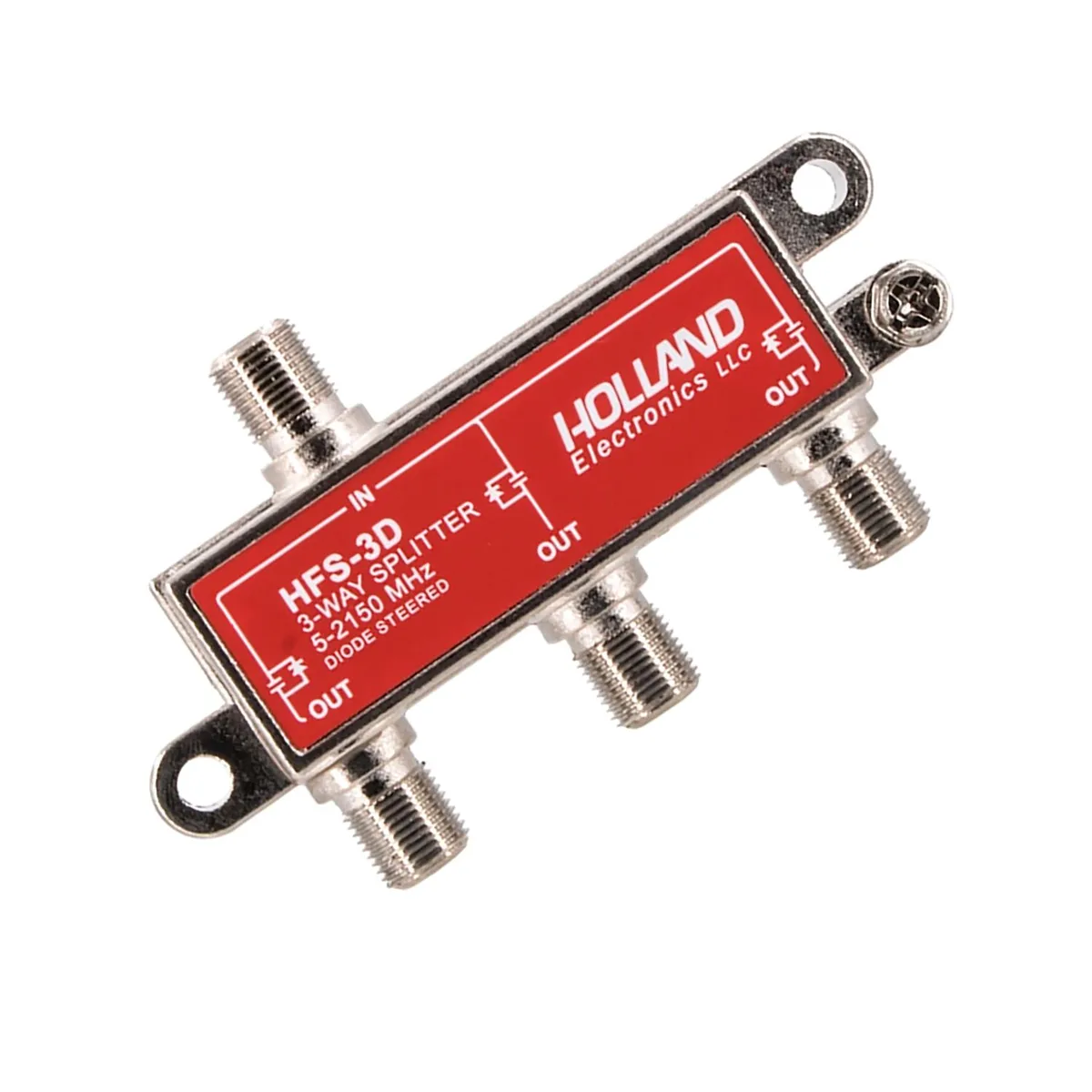

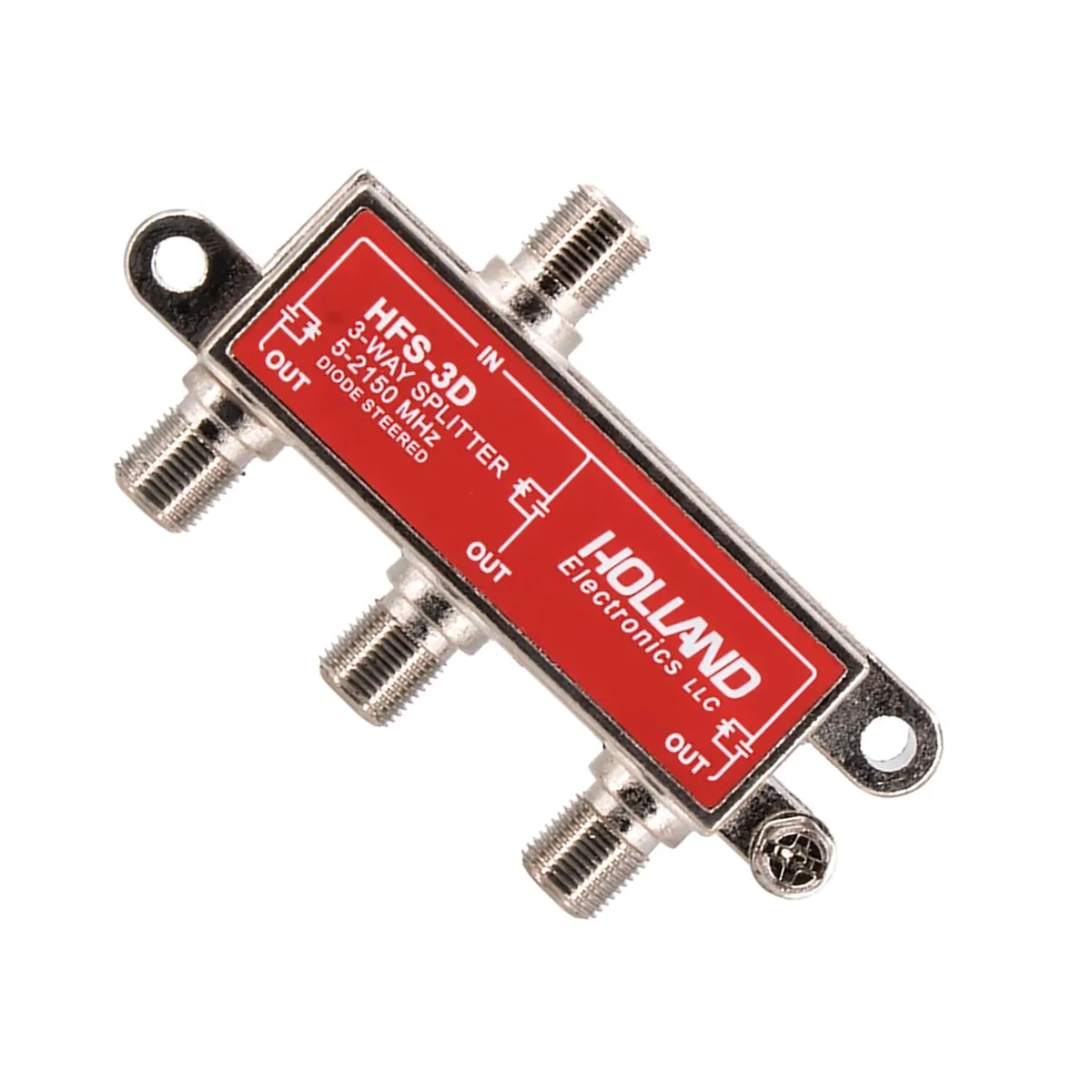

Red three-way RF splitter with flat F ports and solder-sealed housing

Holland Electronics

Holland Electronics HFS-3D 3-Way Splitter 2150 MHz Red

SKU CH-7B6J-GKPFJ

A 5–2150 MHz three-way RF splitter with solder-back shielding exceeding 130 dB, flat F ports spaced 1" apart, and diode-protected DC pass-through rated for 35 V and 1.0 A across –40 °C to 60 °C

  • ColorRed
  • Weight0.2
  • Wideband 5-2150 MHz covers cable, satellite and data
  • Higher return loss reduces signal reflections on every port
  • Ultra-flat response keeps levels even across the band
  • Solder-back sealed housing delivers 140 dB RFI shielding
  • Diode-protected circuitry passes DC power from any output to the input

Three-Way RF Splitter for Cable and Satellite

The Holland HFS-3D splits a single coaxial feed into three outputs across a 5 to 2150 MHz range. It serves residential and commercial installations that distribute cable TV or satellite signals to multiple rooms. The red housing identifies the model at a glance.

Sustained Distribution Performance

Ultra-flat response keeps signal levels even across the full bandwidth during continuous operation. Higher return loss reduces reflections that can degrade picture quality over long cable runs. Solder-back construction maintains 140 dB RFI shielding without degradation over time.

Thermal and Power Characteristics

The unit operates from -40°C to +60°C without active cooling. Diode-protected circuitry passes DC power up to 35 V and 1.0 A from any output port back to the input for line-powered amplifiers. Impedance is 75 ohms with port spacing of 1 inch.

Highlights

  • Wideband 5-2150 MHz covers cable, satellite and data
  • Higher return loss reduces signal reflections on every port
  • Ultra-flat response keeps levels even across the band
  • Solder-back sealed housing delivers 140 dB RFI shielding
  • Diode-protected circuitry passes DC power from any output to the input

Specifications

BrandHolland Electronics
Model3-WaySplitterV1
Part NumberHFS-3D
ColorRed
Weight0.2

Questions about this item

Does the splitter generate heat or noise when it runs continuously?

It is a passive component with no fan or active circuitry, so it produces no audible noise and negligible heat during all-day operation.

What cables or connectors must I already have to use the three output ports?

Each port uses a standard 75-ohm F-type connector spaced one inch apart, so you need three coaxial cables with matching F plugs.

Will it work with older 75-ohm coax runs and legacy set-top boxes?

Yes, the 5–2150 MHz bandwidth and 75-ohm impedance match traditional cable-TV and satellite installations, and the solder-back housing provides over 130 dB RFI shielding for clean signals on aged wiring.
