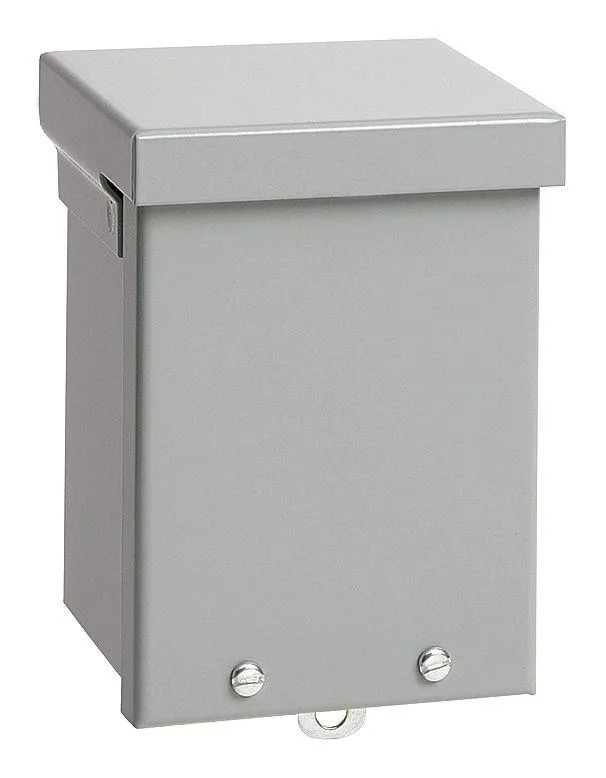

Galvanised steel electrical enclosure, 6-inch cube, grey finish, screw-on cover

HOFFMAN

HOFFMAN A6R66 Electrical Box 6 in H 6 in D 6 in

SKU CH-AX44-XHGQZ

A carbon-steel NEMA 3R enclosure with galvanized finish, captive screw cover, and mounting holes for wall-mount electrical protection

  • TypeElectrical Enclosures, Wireways & Covers
  • NEMA 3R rating protects against rain and sleet
  • Galvanized carbon steel resists corrosion in outdoor use
  • IP32 ingress protection blocks solid objects and dripping water
  • Captive screw cover allows tool-free access while staying attached
  • cUL listed to CSA C22.2 No. 94 and UL 50/50E standards

Hoffman A6R66 Electrical Enclosure

The Hoffman A6R66 is a carbon steel electrical enclosure measuring six inches in height, width and depth. It carries a NEMA 3R and IP32 rating for indoor or outdoor use against falling dirt, rain and sleet. The gray galvanized finish resists corrosion in damp environments. Mounting holes allow direct wall installation.

Suited for junction boxes and small control stations

Installers who need a compact, screw-cover box for wiring splices or terminal blocks will find the solid cover and captive screw latch convenient. The 12, 14 and 16 gauge steel construction provides rigid protection for the listed cUL and IEC 60529 standards. Buyers requiring a larger enclosure, a hinged door, a window cover or a higher NEMA rating such as 4 or 4X should select a different model.

Simple wall-mount installation

The enclosure ships with mounting holes and screws, so only basic hand tools are needed to secure it to a flat surface. The screw-on cover uses captive screws that stay with the lid, reducing lost hardware during maintenance. The most common issue is forgetting to apply a gasket or sealant when the installation demands a watertight seal beyond the standard NEMA 3R rating.

Highlights

  • NEMA 3R rating protects against rain and sleet
  • Galvanized carbon steel resists corrosion in outdoor use
  • IP32 ingress protection blocks solid objects and dripping water
  • Captive screw cover allows tool-free access while staying attached
  • cUL listed to CSA C22.2 No. 94 and UL 50/50E standards

Specifications

BrandNVENT HOFFMAN
TypeElectrical Enclosures, Wireways & Covers

Questions about this item

What wall-mounting hardware do I need to install the 6 in enclosure?

The box includes mounting holes for wall mounting; you supply the screws or anchors suited to your wall material.

Will the 12/14/16 ga carbon-steel body accept standard knockouts from my existing conduit system?

Yes, the steel gauge matches common conduit knockout sizes so your current fittings will align.

How can I confirm the IP32 seal is effective after I close the screw-latch cover?

Verify the gasket sits evenly, tighten each captive screw until the cover contacts the flange, then check for light leaks around the perimeter.
