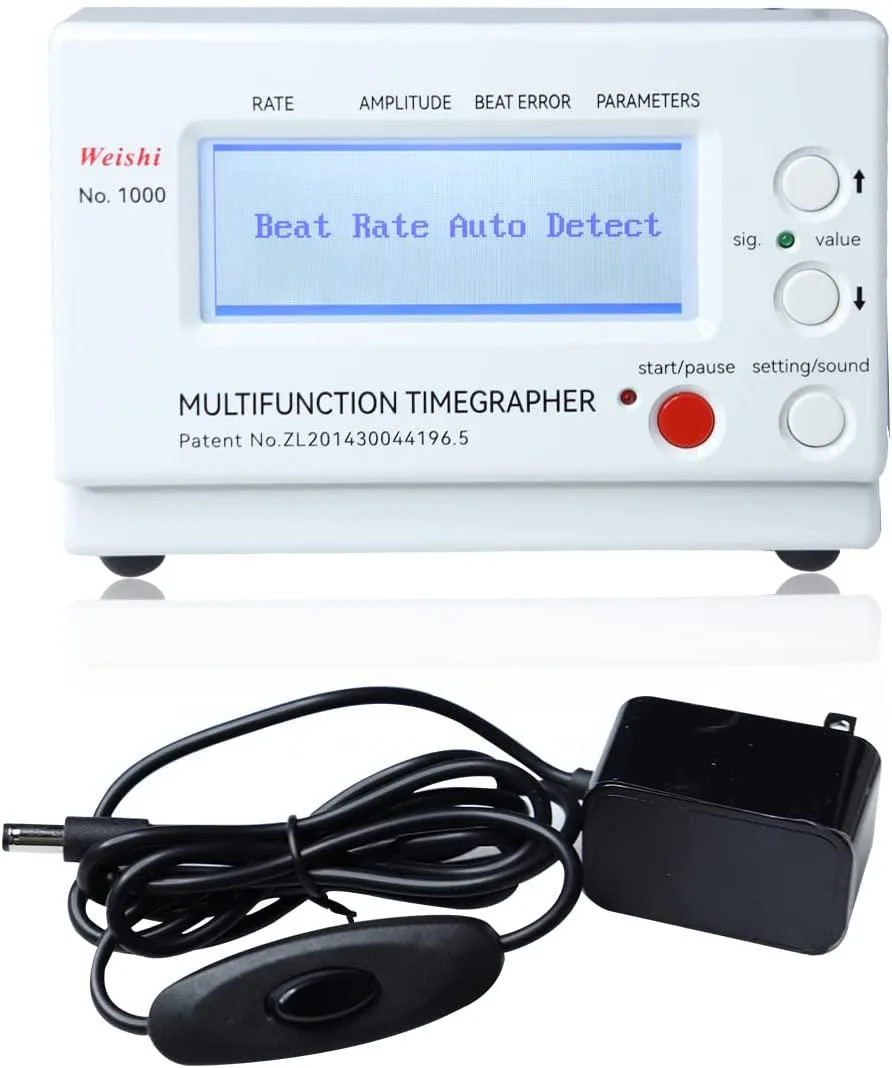

Rectangular grey device with LCD screen, microphone stand, and power adapter

HNZXIB

HNZXIB Timegrapher No.1000 watch tester

SKU CH-D92F-18KDT

Measures daily rate, amplitude, beat error and lift angle on mechanical watches with automatic or manual beat selection from 3600 to 43200 bph

  • TypeWatch tester
  • Accurate daily rate tracking within ±999 seconds per day
  • Automatic beat detection covers 12000 to 43200 bph
  • Manual selection adds rare beats like 3600 and 6000 bph
  • LCD shows amplitude, beat error and lift angle 30 to 70 degrees
  • Universal 100 to 240 V AC adapter with two-prong plug

Multi-Function Watch Tester

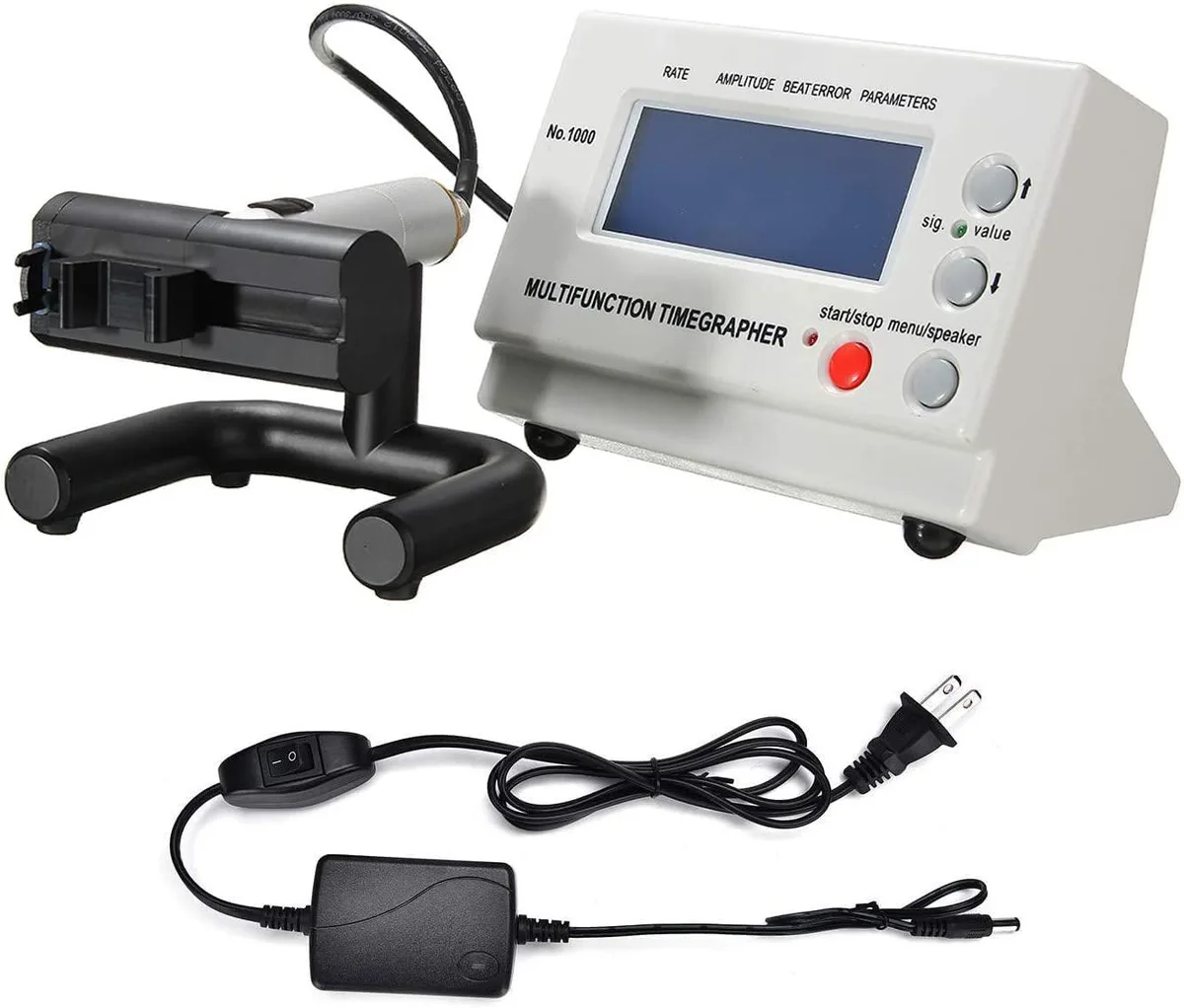

The HNZXIB Timegrapher No.1000 is a precision mechanical watch calibration tool built for amateur watchmakers and repair technicians. It measures daily rate deviation, amplitude, beat error and lift angle on an integrated LCD screen. The unit ships complete with a quality microphone stand and runs from a 100-240 V AC adapter fitted with a standard two-prong plug.

For Hands-On Calibration Work

This tester suits hobbyists and independent repairers who need automatic beat detection across common frequencies from 12000 to 43200 bph plus an extensive manual list that includes 3600, 7200, 1484, 14760 and 21306 bph. It is not intended for buyers who require wireless data logging, quartz-movement analysis or a battery-powered portable form factor.

Bench-Ready Instrument

The instrument plugs directly into mains power and requires no additional calibration hardware beyond the supplied microphone stand. Its LCD readout shows daily difference to ±999 seconds per day, amplitude range 100-360 degrees, beat error resolution 0.1 ms up to 9.9 seconds and lift angle between 30 and 70 degrees, freeing the workbench from separate timing machines and external displays.

Highlights

  • Accurate daily rate tracking within ±999 seconds per day
  • Automatic beat detection covers 12000 to 43200 bph
  • Manual selection adds rare beats like 3600 and 6000 bph
  • LCD shows amplitude, beat error and lift angle 30 to 70 degrees
  • Universal 100 to 240 V AC adapter with two-prong plug

Specifications

TypeWatch tester

Questions about this item

What power source does the Timegrapher No.1000 need to operate?

It runs from a single-phase AC supply of 100-240 V using the included two-prong adapter.

Can the tester automatically recognise the beat rate of a vintage movement running at 18000 beats per hour?

Yes, 18000 is one of the nine standard frequencies the instrument selects automatically.

How do I confirm the Timegrapher No.1000 is measuring correctly after I place a watch on the microphone?

The LCD will show daily rate within ±999 s/day, amplitude 100°-360°, beat error 0.1 ms resolution up to 9.9 s, and lift angle 30°-70°.
