Hitoor
Hitoor USB 3.0 HDMI KVM Switch 4 Computers 2 Monitors 4K@60Hz Desktop Controller
Control four computers with one keyboard, mouse and two 4K@60Hz monitors, share three USB 3.0 peripherals, and switch via buttons or wired remote
- TypeHDMI, USB
- Computer Connections4 Ports HDMI - Dual Monitor
- Monitor Connections2 Ports
- Video ResolutionOur dual monitor HDMI KVM switch Confirms to HDMI 2.0 protoc
- PC SelectionPush Buttons and Wired Comtroller
- Monitors SupportedHDMI, HDMI
- Control four computers with one keyboard and mouse set
- Dual 4K monitors at 60 Hz via HDMI 2.0
- Three USB 3.0 ports share peripherals at 5 Gbps
- Dedicated 3.5 mm audio and microphone outputs with DAC
- Wired remote and front buttons give two switching methods

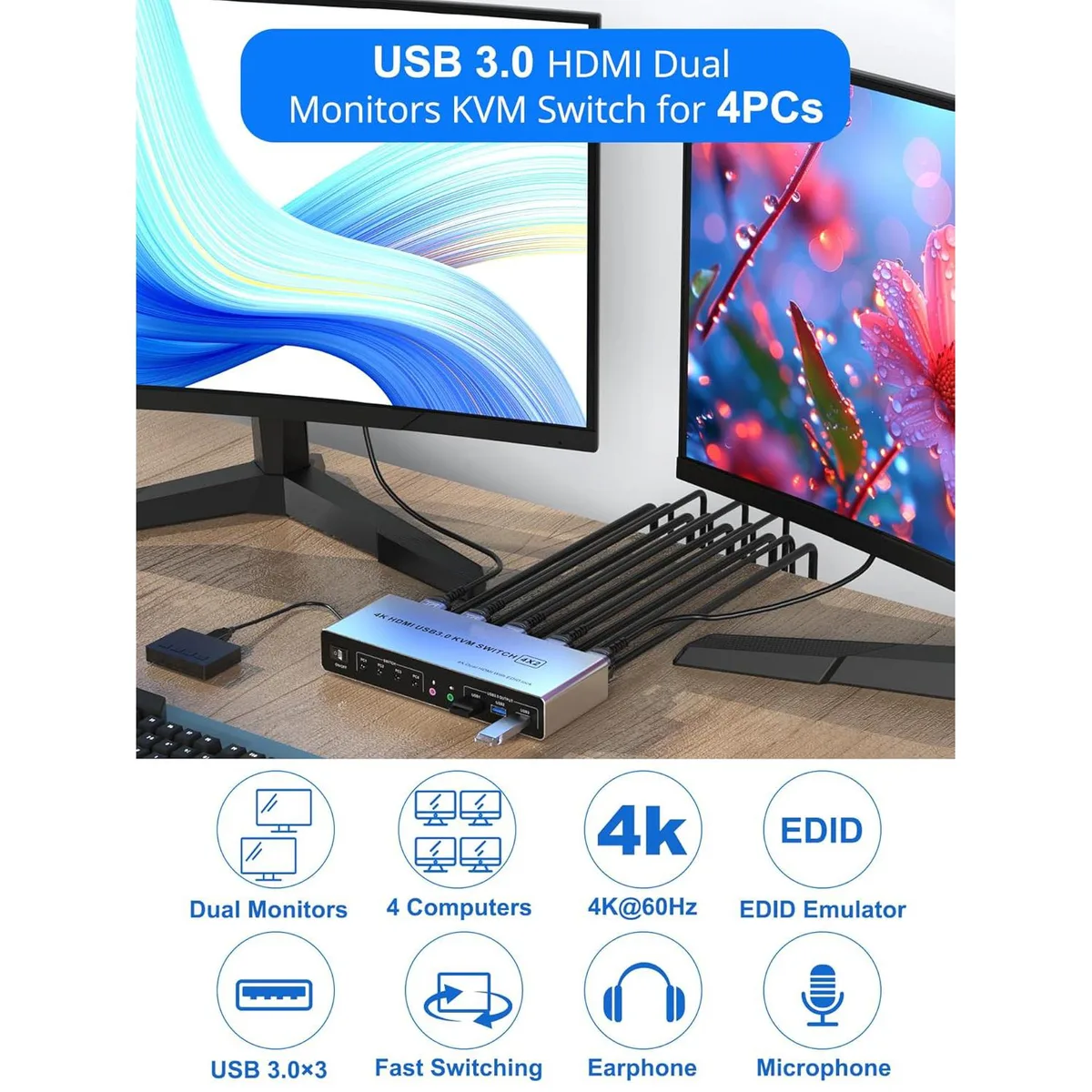

Four-computer dual-monitor KVM

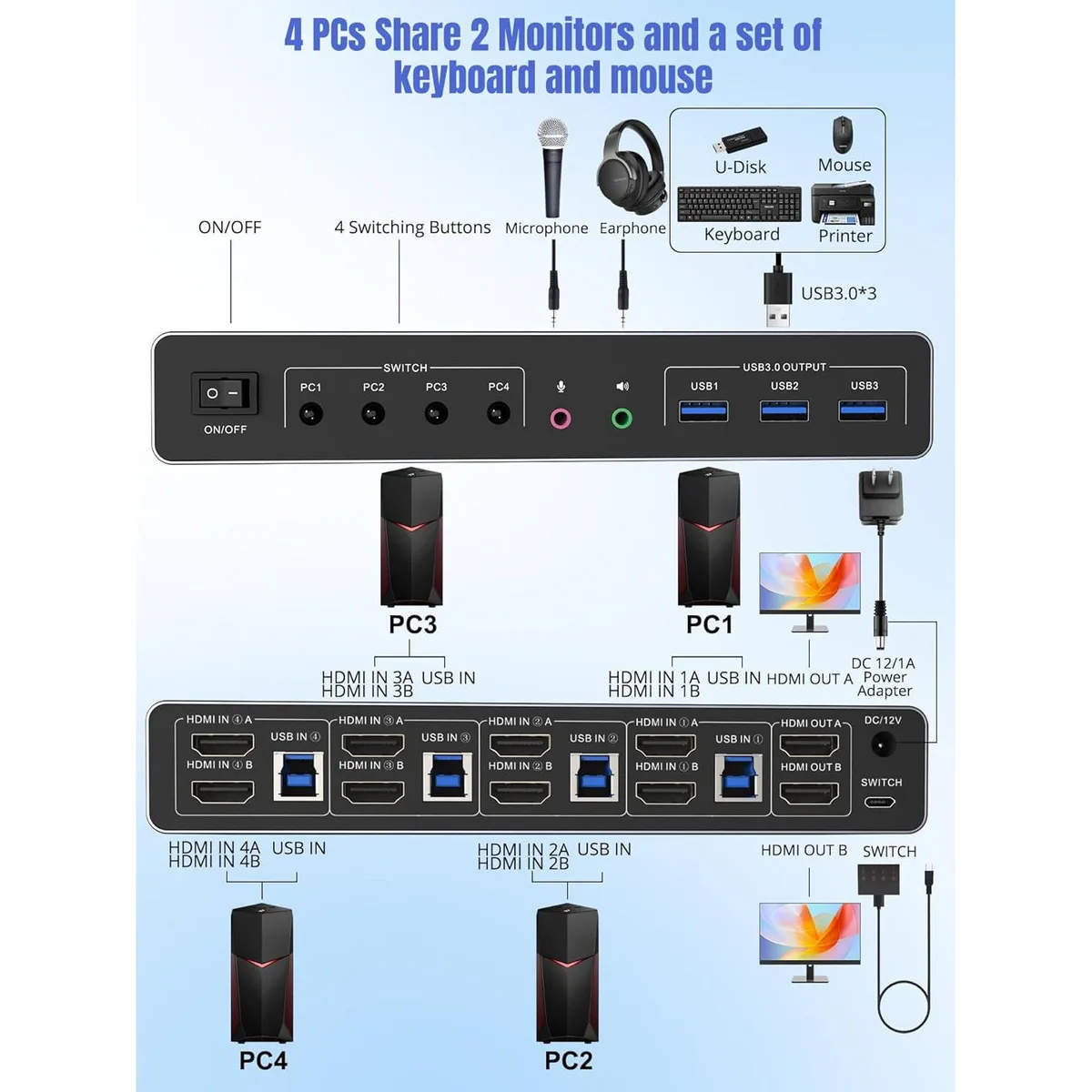

This Hitoor KVM switch lets one keyboard, one mouse and two HDMI monitors control up to four computers. It supports 4K@60Hz video with EDID emulation, shares three USB 3.0 peripherals and provides 3.5 mm audio and microphone ports. A wired remote and front-panel buttons give two ways to change the active system. The unit ships with a 5 V power adapter and four USB 3.0 Type-A to B cables.
Check your computer video outputs
Each computer must supply two HDMI 2.0 ports to use both monitors in extended mode; a single HDMI port limits you to mirrored output. Verify that your graphics cards can drive 4K@60Hz if you need that resolution. Ensure a free USB Type-A port on each system for the included USB 3.0 cables. HDMI cables for the computer-to-KVM links are not included, so have four suitable cables ready.
Suits multi-system desks; not for single-PC users
Ideal for operators who juggle several PCs, laptops or consoles and want a single dual-monitor workspace with shared USB gear. Buyers who only ever use one computer gain no benefit from the switching hardware. Anyone needing DisplayPort, USB-C video or more than two monitors must choose a different KVM. Systems without dual HDMI outputs cannot use extended desktop mode.
Highlights
- Control four computers with one keyboard and mouse set
- Dual 4K monitors at 60 Hz via HDMI 2.0
- Three USB 3.0 ports share peripherals at 5 Gbps
- Dedicated 3.5 mm audio and microphone outputs with DAC
- Wired remote and front buttons give two switching methods
Specifications
| Type | HDMI, USB |
|---|---|
| Computer Connections | 4 Ports HDMI - Dual Monitor |
| Monitor Connections | 2 Ports |
| Video Resolution | Our dual monitor HDMI KVM switch Confirms to HDMI 2.0 protocol, supports a maximum resolution of 4K@60Hz, and is compatible downwards. |
| PC Selection | Push Buttons and Wired Comtroller |
| Monitors Supported | HDMI, HDMI |
| LED Indicators | Yes |
| Audio Features | with Audio |
| Power Features | Come with Power Adapter |
| USB Features | This dual monitor KVM HDMI switcher with 3 USB 3.0 ports which can recognize keyboard mouse, U-disk, printer, or other USB devices. USB 3.0 has a faster data transfer speed of up to 5Gbps, backward compatible with USB 2.0/1.1 devices while USB 2.0 has a data transfer speed of 480Mbps. |
| Application | This 4 port dual monitor KVM allows you to use a set of keyboard and mouse to control 4 computers, share 3 USB devices and 2 monitors |
| Features | With Simulation EDID |
| Dimensions | 7.48 x 2.76 x 1.18 inches |

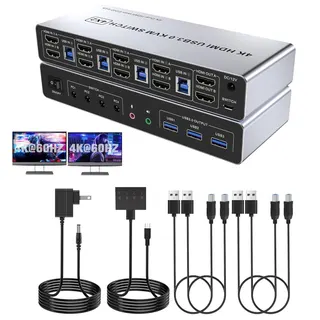

| Package Contents | 1 x USB 3.0 HDMI dual monitor KVM switch, 1 x Power adapter, 1 x Wired Remote Switch, 4 x USB 3.0 Type-A to B cable, and 1 x User Manual |
Questions about this item
What cables and accessories are included with the Hitoor 4-port dual-monitor KVM switch, and what must I buy separately?
The box contains the KVM unit, a 5 V power adapter, a wired remote switch, four USB 3.0 Type-A-to-B cables and a user manual. You must supply your own HDMI cables for both the computer inputs and the monitor outputs.
Which version should I choose if I need extended desktop mode across two 4K monitors at 60 Hz?
This single model supports both copy and extended modes at up to 4K@60 Hz per monitor. Extended mode requires each computer to have two HDMI outputs; otherwise the switch will mirror the same image on both screens.
What does the 4K@60 Hz headline figure mean when the switch is connected to real computers and monitors?
Each of the two monitor outputs can deliver 4K resolution at 60 Hz with YUV 4:4:4 colour, provided the source computer’s graphics card and the attached displays both support HDMI 2.0 and HDCP 1.4. The built-in EDID emulators keep the correct resolution active even when a port is not selected.
