Hitoor

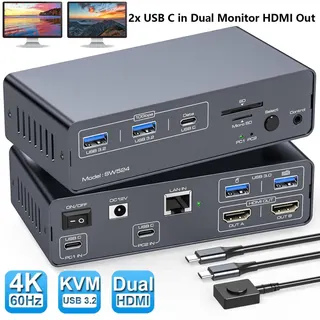

Hitoor SW524-HD USB-C HDMI KVM Switch 2×2 4K@60Hz
A dual-monitor KVM switch lets two computers share one keyboard, mouse, dual HDMI displays at 4K 60 Hz, 1 Gb Ethernet, five USB ports and SD card slots with push-button switching
- TypeUSB C, HDMI
- PC ConnectorsUSB C, HDMI
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution4K@60Hz
- PC SelectionPush Buttons
- Share one keyboard and mouse across two computers
- Dual 4K@60Hz HDMI outputs for two monitors
- Gigabit Ethernet and USB 3.2 ports built in
- SD and microSD card slots for quick file access
- Front USB-C data port plus push-button switching

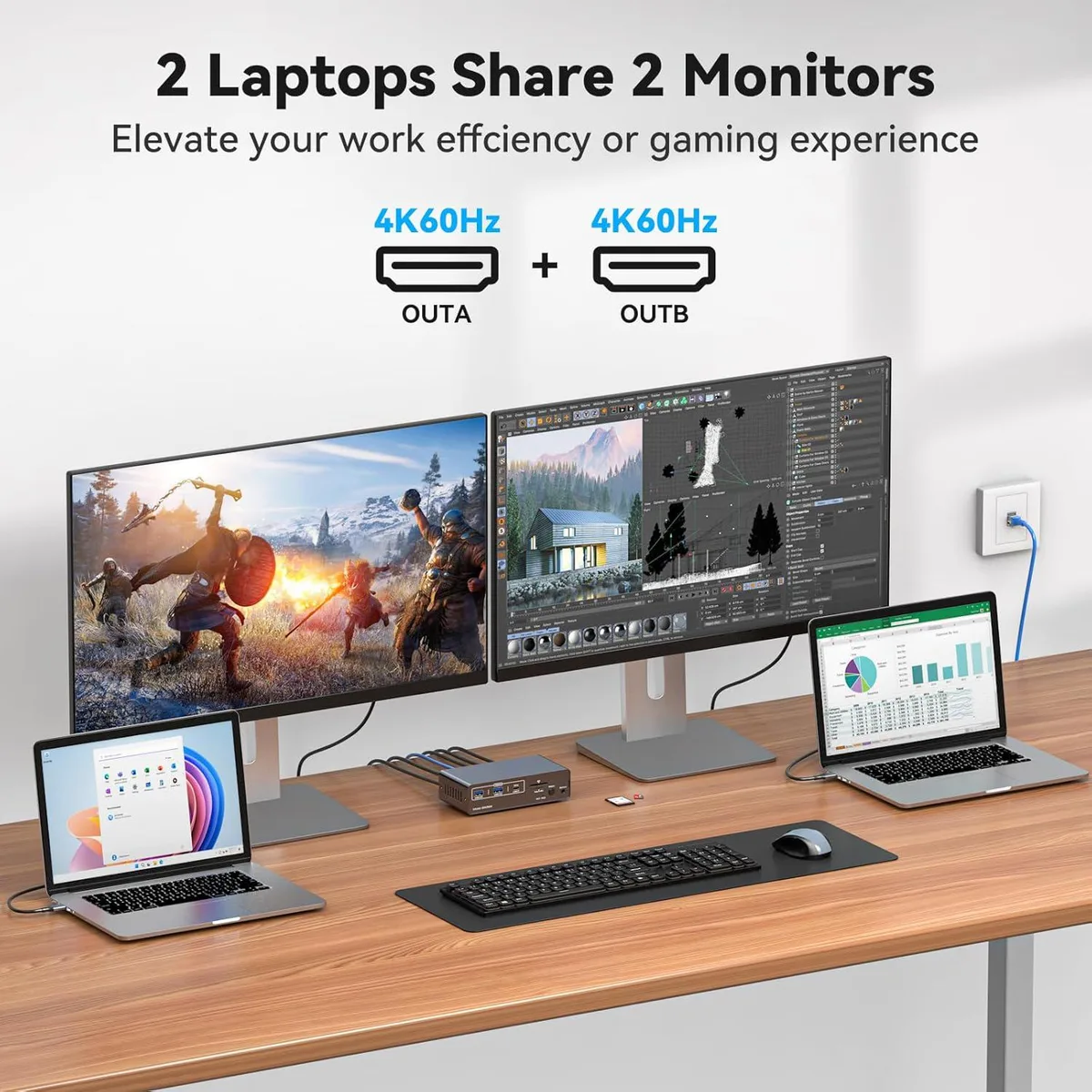

Dual-monitor KVM for two USB-C computers

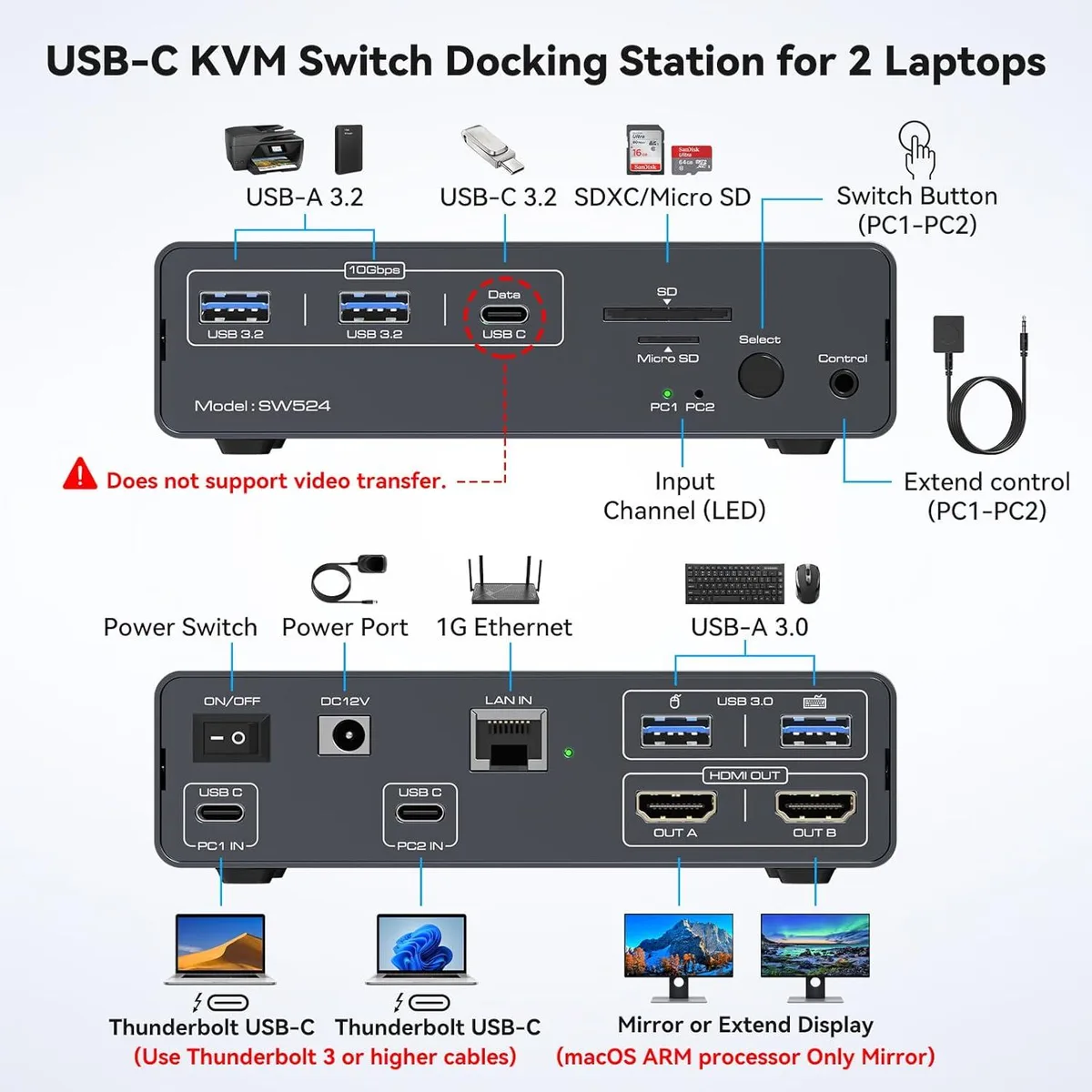

The Hitoor SW524-HD is a USB-C and HDMI KVM switch that lets one keyboard, mouse and dual-monitor setup control two computers. It supports 4K@60Hz video on both HDMI outputs and includes a 12 V power adapter, a desktop push-button controller and a USB-C-to-C cable. A 1 Gbps Ethernet port, USB 3.2 ports, USB-C data port and SD/microSD slots complete the dock.
Users who need independent dual displays on both
The switch suits professionals sharing one desk set between a work laptop and a personal machine, providing dual-screen extended mode on Windows and Linux. MacOS is limited to mirroring mode only, so buyers who require independent extended desktops on a Mac should look elsewhere. The front USB-C port carries data only and delivers no power or video.
USB-C ports must support video output
Each computer connects through a rear USB-C port that has to carry a video signal; systems without DP Alt Mode or equivalent video-out on USB-C cannot drive the monitors through this KVM.
Highlights
- Share one keyboard and mouse across two computers
- Dual 4K@60Hz HDMI outputs for two monitors
- Gigabit Ethernet and USB 3.2 ports built in
- SD and microSD card slots for quick file access
- Front USB-C data port plus push-button switching
Specifications
| Model | SW524-HD |
|---|---|
| Type | USB C, HDMI |
| PC Connectors | USB C, HDMI |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 4K@60Hz |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI, HDMI, Dual Monitor |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | with 12V Power Adapter |
| USB Features | with USB support |
| Application | This dual monitor kvm docking station supports controlling 2 computer and 2 monitors using only 1 set of keyboards and mice, you can easily switch between your work and personal computers, suitable for a variety of office environments. Note:PC1 and PC2 USB-C input ports are located on the rear panel, connect to the computer's USB C port, this port needs to support video transmission |
| Features | The docking station offers a variety of ports with Ethernet bandwidth up to 1000Mbps, USB 3.2 and USB-C ports for connecting high-speed USB devices, SD card and micro SD card slots to make reading and transferring data more convenient. Note: The USB-C port on the front panel transfers data only and does not support PD charging or video transmission. Network follows current channel switching and cannot be used by two computers at the same time |
| Dimensions | 0.66 x 0.48 x 0.18 inches |
| Weight | 1.28 Pounds |
| Package Contents | KVM Switch X1; DC12V Power Adapter X1; USB-C-C Cable X1; Desktop Controller X1; User's Manual X1 |
Questions about this item
What resolution and refresh rate can the SW524-HD sustain on both monitors without dropping frames?
Each HDMI output delivers up to 4K at 60 Hz continuously, with EDID emulation keeping the signal stable during long sessions.
How loud or hot does the unit get when it powers two 4K displays, Ethernet and USB peripherals all day?
The fanless aluminium chassis runs silently; the 12 V adapter handles the load so the box stays warm but not hot during extended use.
Which ports must my laptops already provide for the KVM to drive both screens and share peripherals?
Each computer needs one USB-C port that supports video output plus one HDMI port; the rear USB-C inputs carry both video and data.
