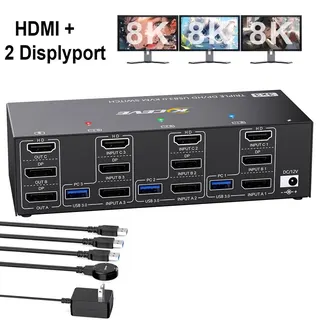

Hitoor KVM Switch 3 Monitors 3 Computers 8K@60Hz 4K@144Hz HDMI+2DP 4 USB 3.0 Wired Remote
Connects three computers to three monitors with 8K HDMI and dual DisplayPort video plus four USB 3.0 ports, switched by buttons or wired remote
- TypeHDMI + 2 Displayport KVM Switch 3 PC 3 Monitors
- PC ConnectorsHDMI + 2 Displayport
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video ResolutionKVM switch supports 8K Ultra HD resolution. KVM switch DP: s
- PC SelectionPush Buttons and Wired Remote
- Share three PCs across three monitors with mirror or extended modes
- 8K at 60 Hz on HDMI and 4K at 144 Hz on DisplayPort for sharp visuals
- Four USB 3.0 ports at 5 Gbps for fast peripheral switching
- Wired remote and front buttons with LED indicators for quick PC selection
- Metal housing with included 12 V power adapter for stable operation
Triple-monitor KVM for three computers

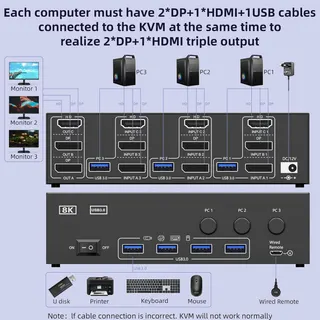

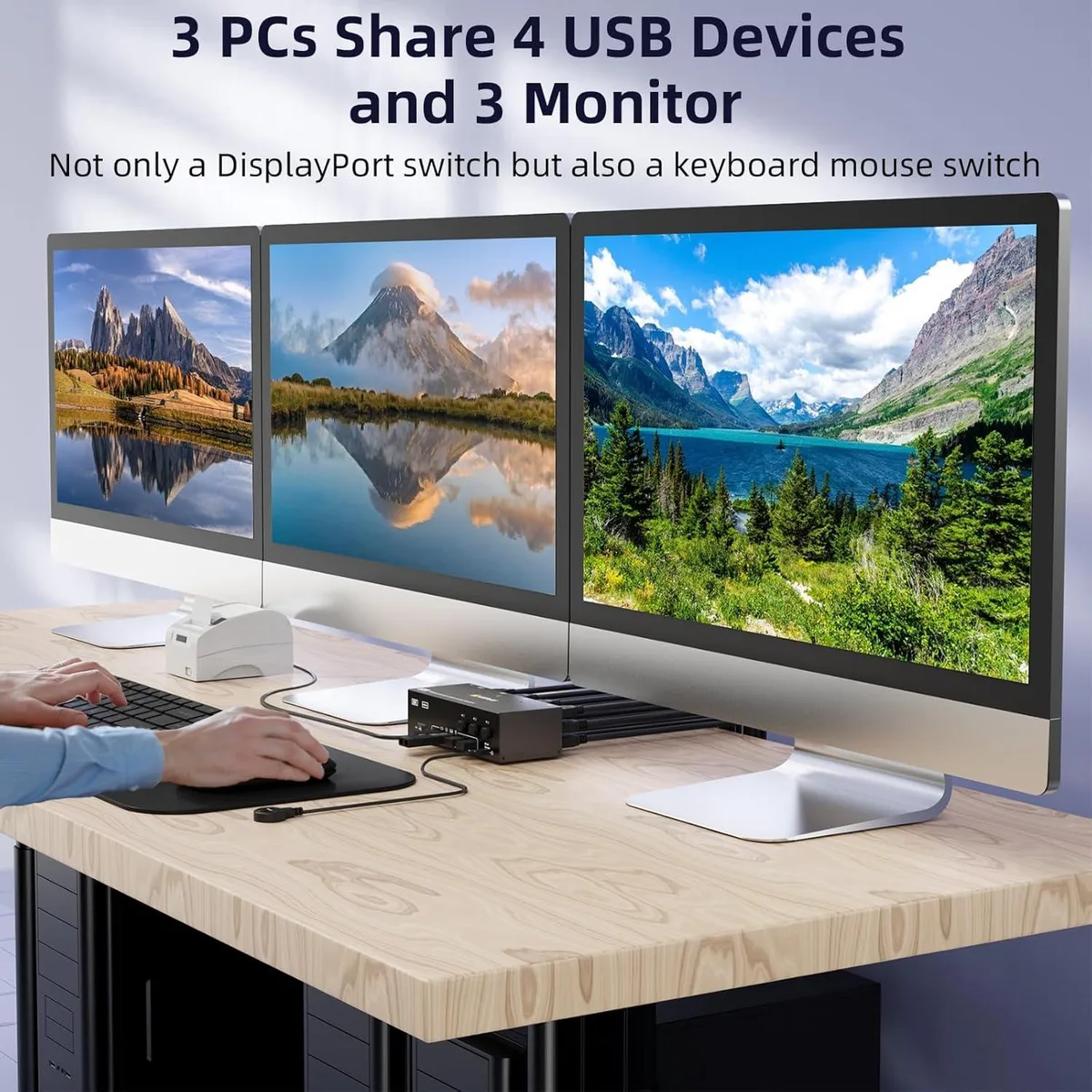

This KVM switch lets three desktops or laptops share three displays and four USB 3.0 peripherals. It accepts one HDMI and two DisplayPort inputs per system and mirrors or extends the desktop across all screens. A wired remote and front-panel buttons give instant PC selection with LED status indication. The unit includes a 12 V power adapter for stable operation.
HDMI 2.1 and DisplayPort 1.4 bandwidth limits
The HDMI port delivers up to 8K at 60 Hz or 4K at 120 Hz, while each DisplayPort handles 8K at 30 Hz or 4K at 144 Hz. USB 3.0 ports run at 5 Gbps, ten times the speed of USB 2.0, and remain backward compatible with USB 2.0 and 1.1 devices. Mirror mode outputs three identical images; extended mode drives three independent desktops.
Replaces separate cables and manual switching
It removes the need to swap video and USB cables when moving between three workstations. The jump is worthwhile for users who run triple-monitor setups at high refresh rates and want single-keyboard, single-mouse control. Buyers who need more than three computers or monitors, or who require audio switching, should look elsewhere.
Highlights
- Share three PCs across three monitors with mirror or extended modes
- 8K at 60 Hz on HDMI and 4K at 144 Hz on DisplayPort for sharp visuals
- Four USB 3.0 ports at 5 Gbps for fast peripheral switching
- Wired remote and front buttons with LED indicators for quick PC selection
- Metal housing with included 12 V power adapter for stable operation
Specifications
| Type | HDMI + 2 Displayport KVM Switch 3 PC 3 Monitors |
|---|---|
| PC Connectors | HDMI + 2 Displayport |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | KVM switch supports 8K Ultra HD resolution. KVM switch DP: supports up to 8K@30Hz/4K@144Hz resolution; KVM switch HDMI: supports up to 8K@60Hz/4K@120Hz resolution and is backward compatible with lower resolutions. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | Come with DC12V Power Adapter |
| USB Features | The KVM switch comes with 4 USB 3.0 ports. Support Super Speed 5 Gbps data transfer, 10 times faster than USB 2.0, for connecting RGB keyboards, mice, printers, hard disks, webcams, etc. Backwards compatible with USB 2.0/1.1 devices. |
| Application | Triple Monitor KVM Switch HDMI+2 DisplayPort supports 3 desktops or laptops to share 3 monitors and 4 USB3.0 ports. Please note: Mirror and Extended modes are supported. Mirror mode can output three same screens, and Extended mode can output three different screens. |
| Features | Widely Compatible and Easy Switching |
| Dimensions | 16.5 x 6.5 x 4.5 cm |
| Weight | 500g |
| Package Contents | 1 x KVM Switch, 3 x USB 3.0 Cable, 1 x Power Adapter, 1 x Wired Controller, 1 x User Manual |
Questions about this item
How do I choose between the HDMI and the two DisplayPort connections for my monitors?
Use the HDMI port when you need 8K at 60 Hz or 4K at 120 Hz, and use the two DisplayPort connections when you need 4K at 144 Hz or 8K at 30 Hz.
What does the 8K@60Hz rating mean when I connect a single monitor through HDMI?
It means the switch can pass an 8K signal at 60 Hz or a 4K signal at 120 Hz through the HDMI port, provided your computer and monitor also support those modes.
Which video standard limits the DisplayPort side to 4K@144Hz instead of a higher refresh rate?
The DisplayPort 1.4 implementation caps the connection at 4K 144 Hz or 8K 30 Hz, so you cannot exceed those figures on the DP ports.
