Hitoor
Hitoor KVM Switch 3 Monitors 2 Computers 8K@60Hz 4K@144Hz 1 HDMI + 2 DisplayPort
Share three monitors and four USB 3.0 devices between two computers with push-button or wired remote switching at up to 8K 60 Hz or 4K 144 Hz
- TypeKVM Switch 2 Computers 3 Monitors
- Computer Connections2 Ports
- Monitor Connections3 Ports
- Video ResolutionTriple Monitor KVM Switch supports resolutions up to 8K60Hz
- PC SelectionPush Buttons and Wired Remote
- Monitors SupportedHDMI, Displayport, Displayport
- Control two computers with one keyboard and mouse
- Share three monitors across both systems at up to 8K 60 Hz
- Four USB 3.0 ports at 5 Gbps for peripherals
- Switch instantly via front buttons or wired remote
- Compact 10 × 6.5 × 4.5 cm design with 12 V power
Triple-monitor KVM for dual computers
This Hitoor KVM switch lets two desktops or laptops share three monitors and four USB 3.0 peripherals from a single keyboard and mouse set. Each connected computer must provide two DisplayPort outputs and one HDMI output to drive the three display ports on the switch. Extended and duplicate display modes are supported when the host graphics hardware allows multi-monitor output.
Compact metal chassis with front-panel switching
The unit measures 10 x 6.5 x 4.5 cm and weighs 280 g, fitting easily on a crowded desk. Two push buttons on the front and an included 1.52 m wired remote give instant computer selection, while LED indicators show the active port. A 12 V DC power adapter is required and supplied, ensuring stable operation for the video and USB 3.0 circuits.

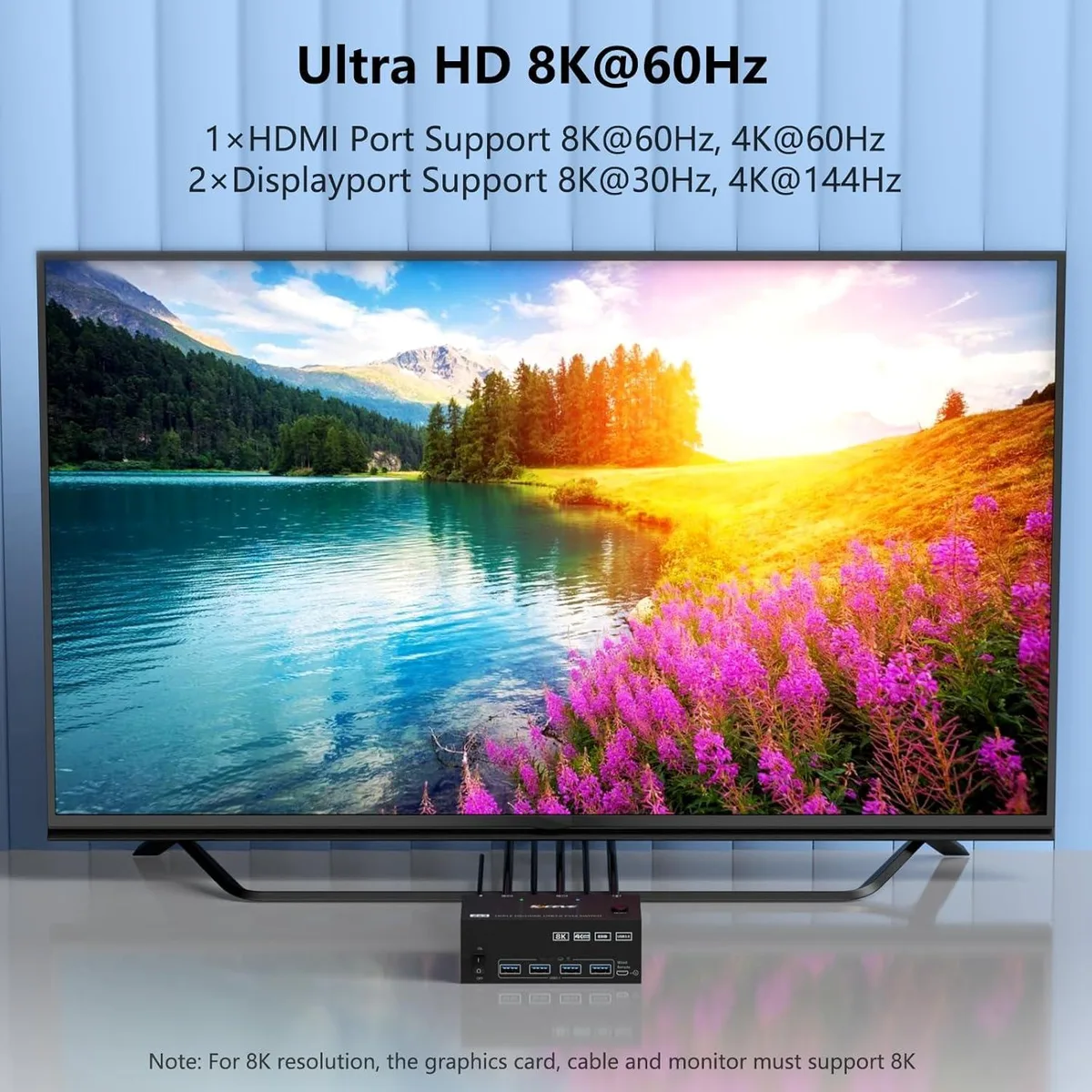

DisplayPort 1.4 and HDMI 2.1 bandwidth limits
DisplayPort 1.4 inputs and outputs handle up to 8K at 30 Hz or 4K at 144 Hz, while the HDMI 2.1 port reaches 8K at 60 Hz or 4K at 60 Hz but does not support 4K at 120 Hz or 144 Hz. The final resolution depends on the graphics card, cables and monitors used. USB 3.0 ports deliver 5 Gbps each for keyboards, mice, printers, scanners and flash drives. Buyers who need more than two computer ports or audio switching should consider a different solution.
Highlights
- Control two computers with one keyboard and mouse
- Share three monitors across both systems at up to 8K 60 Hz
- Four USB 3.0 ports at 5 Gbps for peripherals
- Switch instantly via front buttons or wired remote
- Compact 10 × 6.5 × 4.5 cm design with 12 V power
Specifications
| Type | KVM Switch 2 Computers 3 Monitors |
|---|---|
| Computer Connections | 2 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | Triple Monitor KVM Switch supports resolutions up to 8K60Hz and 4K60Hz. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | 12V DC Power Adapter |
| USB Features | equipped with 4 USB 3.0 ports, each delivering super-fast speeds of up to 5Gbps. It can recognize keyboard, mouse, printer, scaner, USB flash drive and other USB devices. |
| Application | This KVM switch allow you to control 2 computers by only one set of wired or wireless keyboard mouse, share 4 USB 3.0 devices and 3 monitors. Only when your computer supports 3 display or multi display, you can use this KVM to achieve 2 PC to share 3 monitors.Unique design makes the desktop more tidy, say goodbye to cluttered cables and improve your productivity. |
| Features | Ultra HD 8K@60Hz/4K@144Hz Visual Enjoyment; KVM Switches with 4 USB 3.0 Ports; Supports multiple display modes; Support 2 Switching Mode |
| Dimensions | 10 x 6.5 x 4.5cm |
| Weight | 280g |
| Package Contents | 1*USB3.0 KVM Switch 2*DP1.4 Cables(1.5m/4.9ft) 1*HDMI2.1 Cable(1.5m/4.9ft) 2*USB3.0 Cables(1.5m/4.9ft) 1*Wired remote controller(1.52m/5ft) 1*User manual 1*12V Power Adapter |
Questions about this item
What resolution limits do the HDMI 2.1 and DisplayPort 1.4 ports impose in practice?
HDMI 2.1 outputs up to 8K@60Hz or 4K@60Hz but does not support 4K@144Hz or 4K@120Hz. DisplayPort 1.4 outputs up to 8K@30Hz or 4K@144Hz and is backward compatible.
What physical space and power does the unit need to sit on a desk?
The switch measures 10 x 6.5 x 4.5cm, weighs 280g and requires the included 12V DC power adapter to operate.

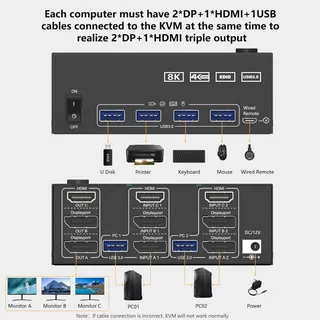

How do I connect both computers and which step is commonly missed?
For each PC plug one HDMI cable, two DisplayPort cables and one USB 3.0 cable into the matching input ports, then attach three monitors and the 12V power adapter; the step often missed is connecting the USB cable for keyboard and mouse switching.
