Hitoor KVM Switch 3 Monitors 2 Computers 4K@60Hz 2 HDMI + DisplayPort
Share two computers across three monitors at 4K@60Hz with USB 3.0 peripherals and audio
- TypeKVM Switch 3 Monitors 2 Computers
- PC Connectors2 HDMI + Displayport
- Computer Connections2 Port HDMI + 1 Port Displayport
- Monitor Connections3 Ports ( 2 HDMI + Displayport)
- Video Resolutionsupport resolution up to 4K@60Hz and backward compatible wit
- PC SelectionPush Buttons and Wired Remote
- Share three displays from two computers with one keyboard and mouse
- Triple 4K@60Hz output via two HDMI and one DisplayPort connection
- HDMI 2.0 and DP 1.2 standards supported with backward compatibility
- Front-panel buttons and wired remote give two ways to switch sources
- Three USB 3.0 ports plus audio and microphone pass-through for peripherals
Triple Monitor KVM Switch

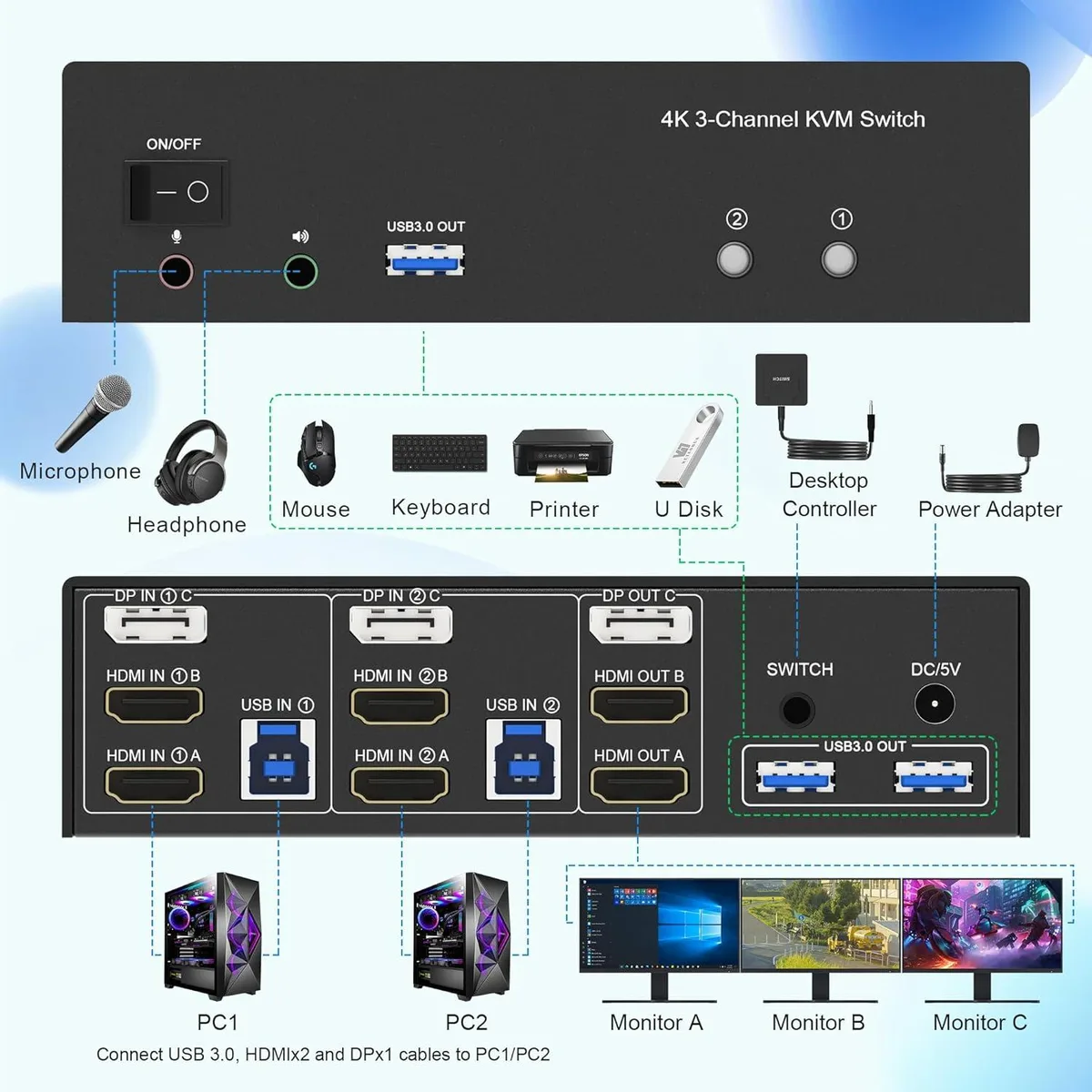

This KVM switch lets two computers share three displays and a single set of USB peripherals. It provides two HDMI ports and one DisplayPort for monitor connections, plus three USB 3.0 ports for keyboard, mouse, printer or other devices. Audio and microphone pass-through are also included. A wired remote and front push buttons give instant PC switching.

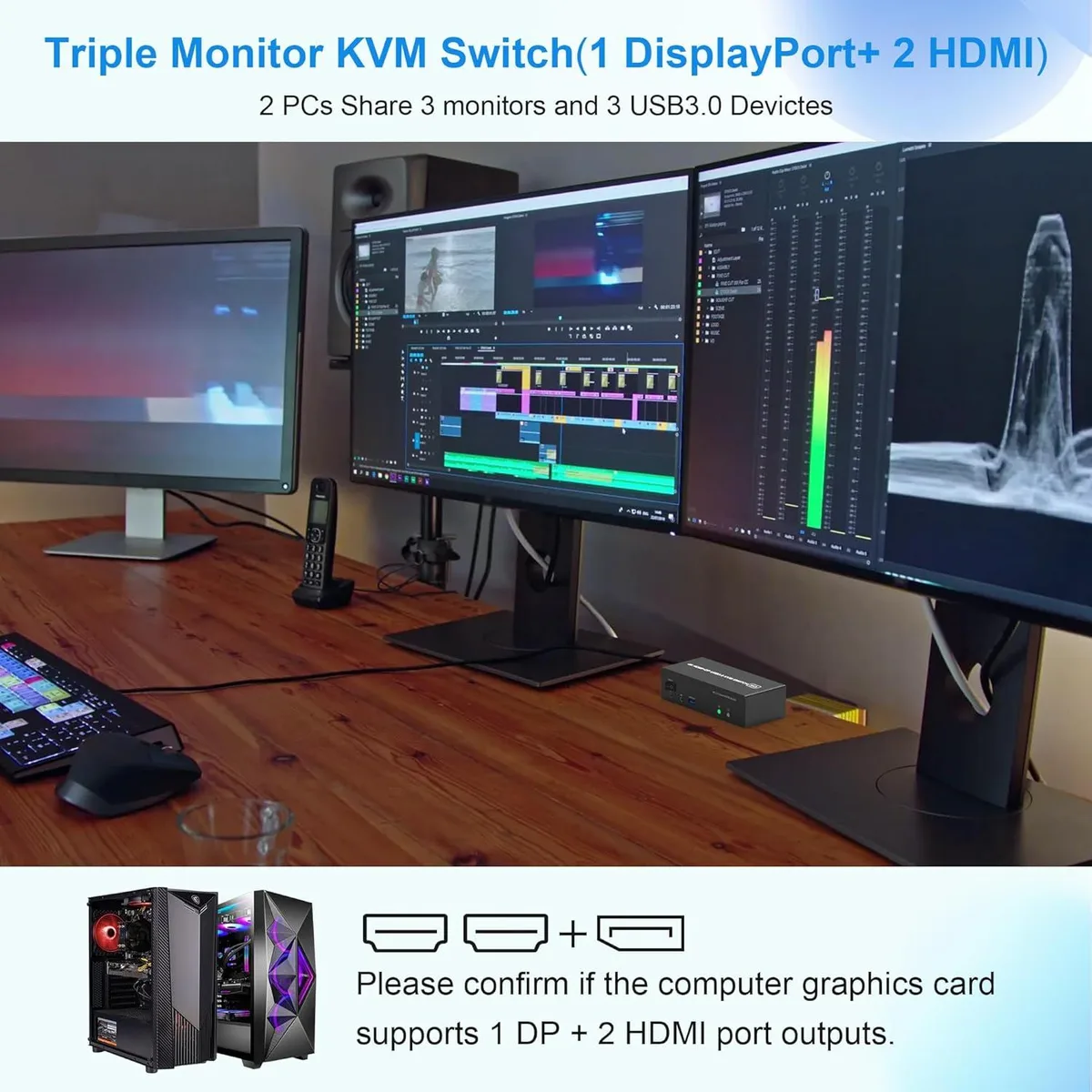

For dual-PC multi-monitor setups
The unit suits users who run two systems and need them to drive three screens simultaneously in extended, mirrored or spliced modes. It works with Windows, Linux, macOS and other major operating systems without extra drivers. Builders who only have one computer, or who need more than two HDMI monitor inputs, should consider a different configuration.
4K@60Hz over HDMI 2.0 and DP 1.2
Maximum supported video resolution is 4K at 60 Hz, provided the host graphics cards, monitors and cables all meet the HDMI 2.0 and DisplayPort 1.2 standards. Lower resolutions are handled automatically. If your workflow requires higher refresh rates or newer display protocols, this switch will not deliver them.
Highlights
- Share three displays from two computers with one keyboard and mouse
- Triple 4K@60Hz output via two HDMI and one DisplayPort connection
- HDMI 2.0 and DP 1.2 standards supported with backward compatibility
- Front-panel buttons and wired remote give two ways to switch sources
- Three USB 3.0 ports plus audio and microphone pass-through for peripherals
Specifications
| Type | KVM Switch 3 Monitors 2 Computers |
|---|---|
| PC Connectors | 2 HDMI + Displayport |
| Computer Connections | 2 Port HDMI + 1 Port Displayport |
| Monitor Connections | 3 Ports ( 2 HDMI + Displayport) |
| Video Resolution | support resolution up to 4K@60Hz and backward compatible with lower resolution. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, HDMI, Displayport |
| LED Indicators | Yes |
| Audio Features | with Audio |
| Power Features | Come with DC 5V Power Adapter |
| USB Features | with USB support |
| Application | KVM Switch 3 Monitors allow two computers to share 2 HDMI + 1 DP monitors and 3 USB 3.0 ports, such as mouse, keyboard, printer, etc. And connect three displays in splicing, extend and mirror displays mode. |
| Features | 1. Triple Monitor KVM Switch allows 2 computers/laptops share one set of keyboard, mouse, and 3 monitors (2 HDMI + 1 DisplayPort) 2. Support HDMI 2.0 and DP 1.2 standards and downward compatible. 3 monitors output support up to 4K@60Hz for extended,mirrored or spliced display(Depends on your computer's graphics card.); 3. 2 Switching modes: Button switch and wired remote. 4. KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output 5. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS |
| Dimensions | 5.86in x 2.4in x 1.77in |
| Weight | 200g |
| Package Contents | 1x Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
What video standard do the HDMI 2.0 and DisplayPort 1.2 ports cap the output at?
The HDMI 2.0 and DP 1.2 interfaces limit the maximum output to 4K@60Hz, provided the computer graphics card, monitor and cable all support that resolution.
How much desk space does the 5.86in x 2.4in x 1.77in unit need?
The switch measures 5.86 inches wide, 2.4 inches deep and 1.77 inches high, so it fits in a small footprint behind the monitors.
Which cables must be connected before the DC 5 V adapter is plugged in?
Connect both computers via the supplied USB 3.0 cables and the required HDMI or DisplayPort video cables, then attach monitors and peripherals, and finally apply power with the 5 V adapter.
